6X BEAM, 6X POST HDG SDS
$232.36

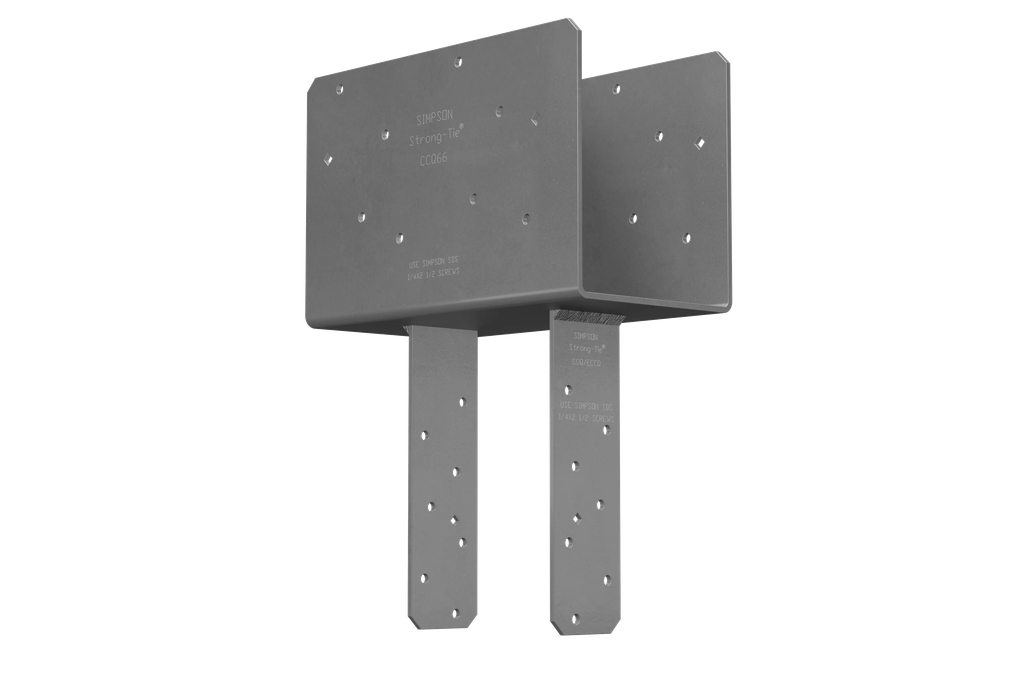

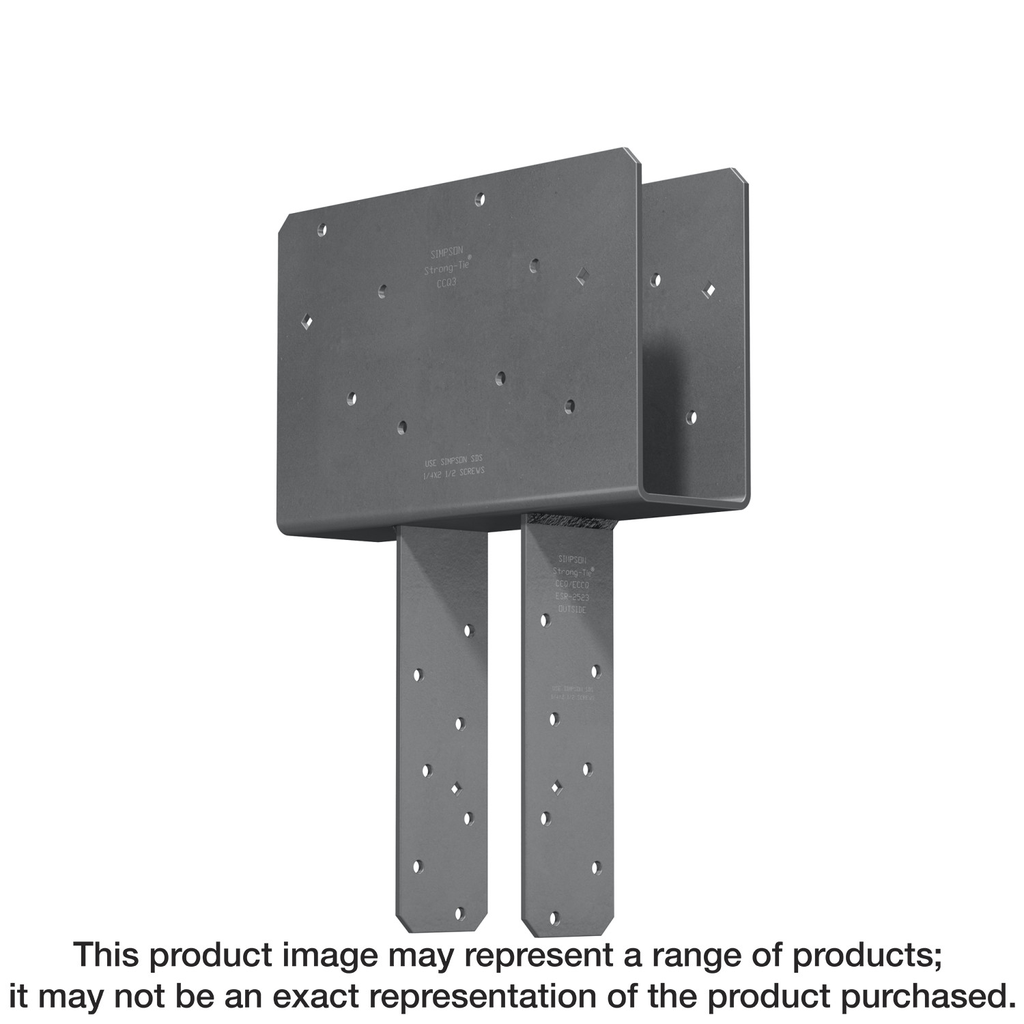

The CCQ™ HDG Column Cap provided by Simpson Strong-Tie is expertly crafted to offer robust support for 6x beams and 6x posts, making it an essential component for any structural application. Constructed from 7-gauge steel and featuring hot-dip galvanization, this column cap delivers exceptional corrosion resistance, especially suited for exterior and treated-wood uses. Its innovative design includes SDS screws that not only present a lower profile compared to standard through bolts but also allows for easier installation with diamond holes for temporary fastening. With certified welds ensuring strength and increased uplift loads designed to meet earthquake and wind loading requirements, this product stands out in performance and durability, providing peace of mind in structural integrity.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 14.01 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5.849 in |
| Load Rating | Increased uplift for earthquake and wind |
