6X BEAM, 6X POST ROT ECC
$130.13

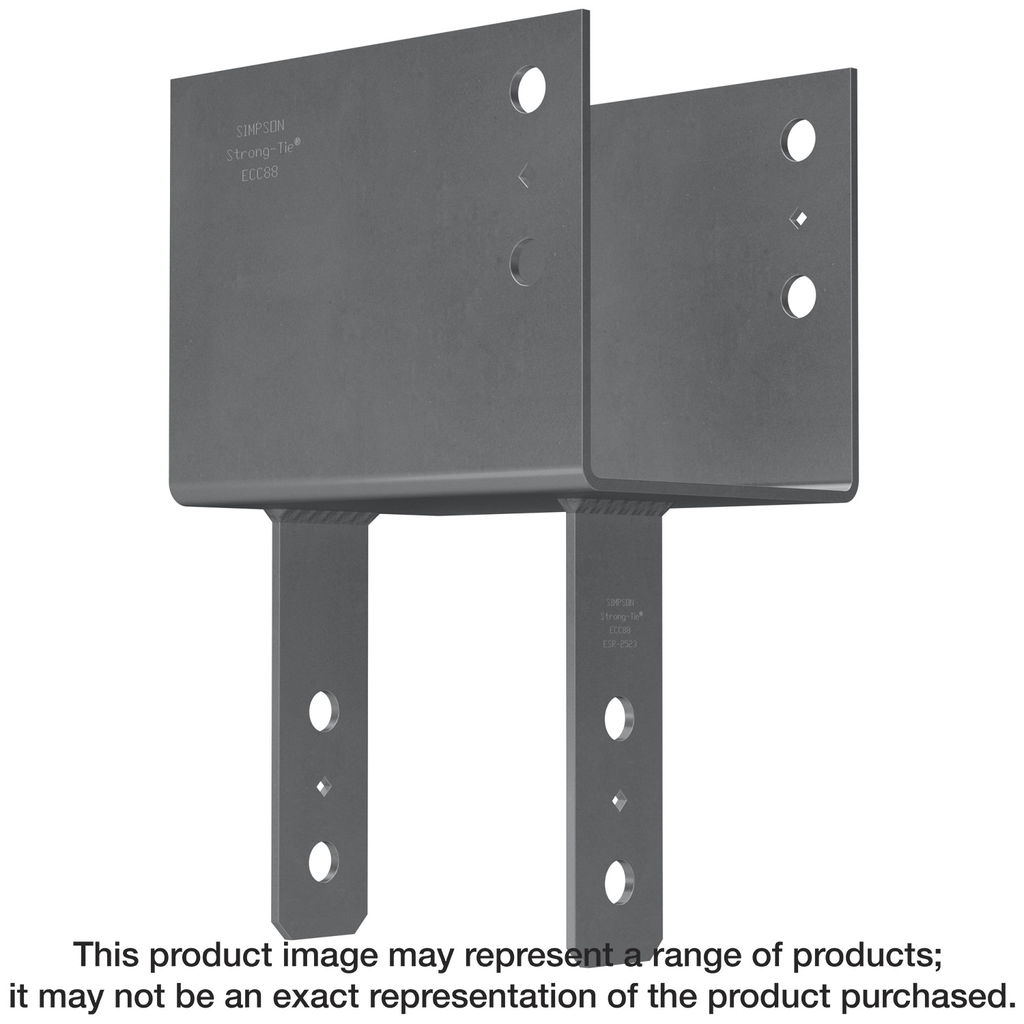

Engineered for structural integrity and reliability, the ECC End Column Cap is ideal for supporting 6x beams and 6x posts in residential and commercial applications. Constructed from robust 7-gauge steel and finished with a durable gray paint, it meets the necessary NDS code requirements for bolt spacing, ensuring optimal performance under various loading conditions. The design features straps rotated 90 degrees to align perfectly with wall framing, enhancing both stability and ease of installation. With certified welds that guarantee strength and diamond holes for temporary fastening, this column cap is also designed to manage increased uplift loads, providing added security against earthquake or wind forces.
Description
The Simpson Strong-Tie® ECC column cap is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 9.65 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal post size | 6x |
| Nominal beam width | 6x |
