6X BEAM, 6X POST SDS RETAIL
$168.35

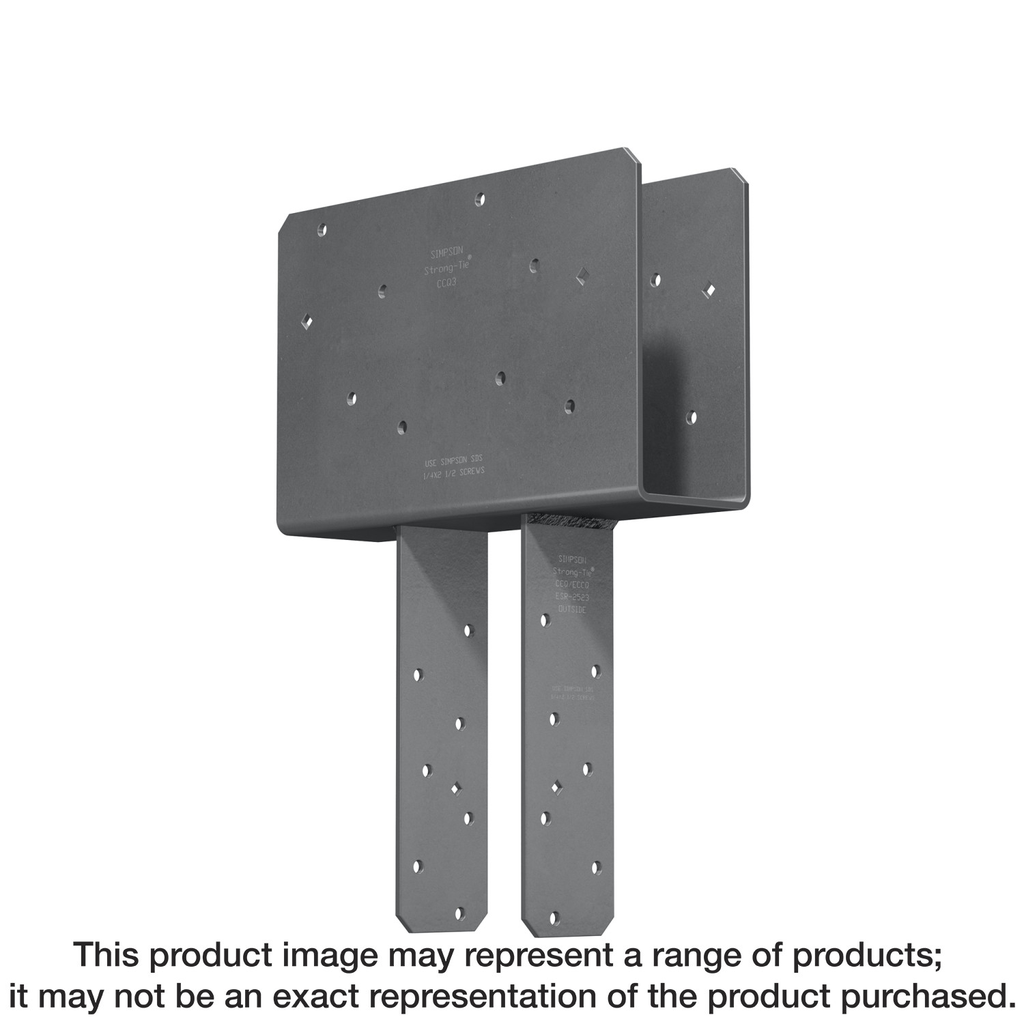

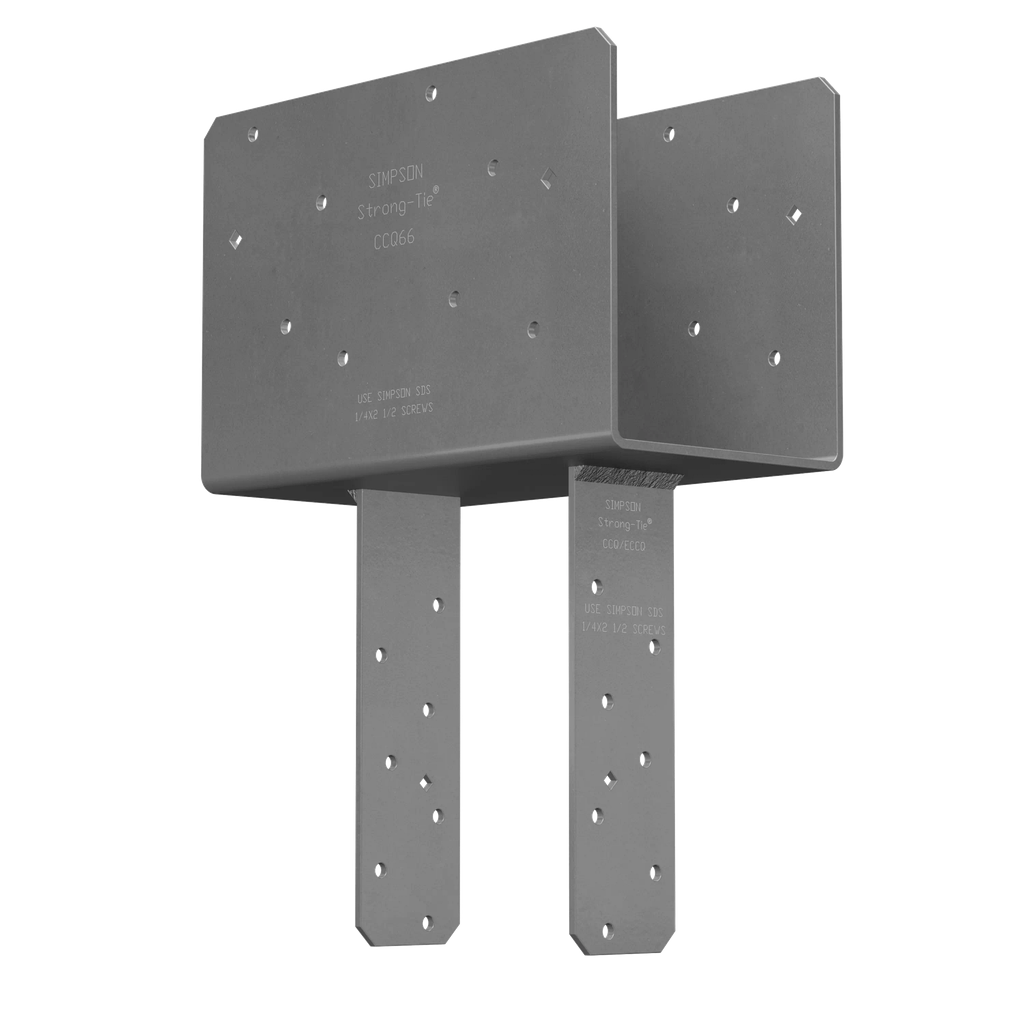

Engineered for strength and reliability, the CCQ™ Column Cap from Simpson Strong-Tie is designed to securely connect 6x beams and posts, ensuring robust structural integrity. Constructed from durable 7-gauge steel and featuring certified welds, this product inspires confidence in its performance under various loading conditions, including enhanced uplift loads for earthquake or wind scenarios. The inclusion of diamond holes facilitates temporary fastening, while the use of Strong-Drive® SDS screws offers a sleek, low-profile alternative to traditional through bolts. Finished with a resilient gray paint, this column cap not only meets functional requirements but also complements your project aesthetically.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 14.01 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal post size | 6x |
| Nominal beam width | 6x |
