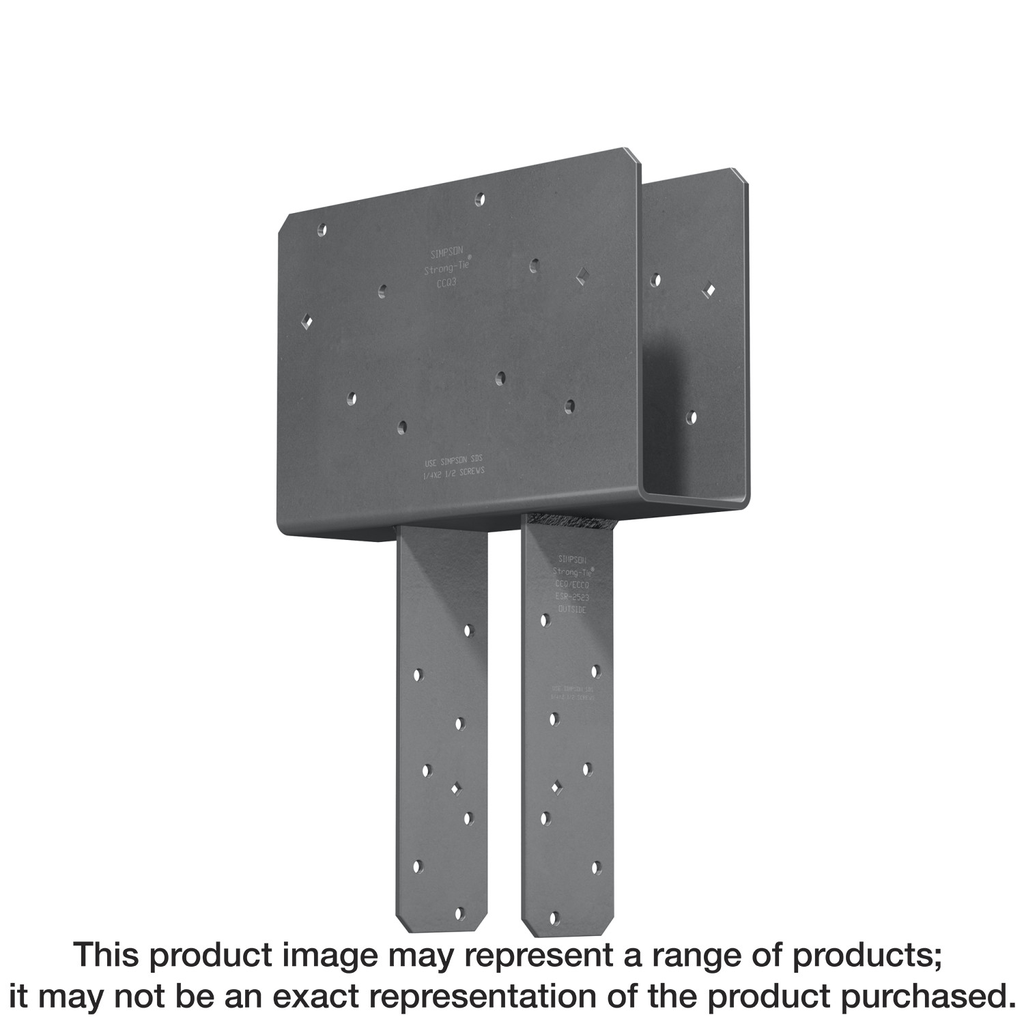

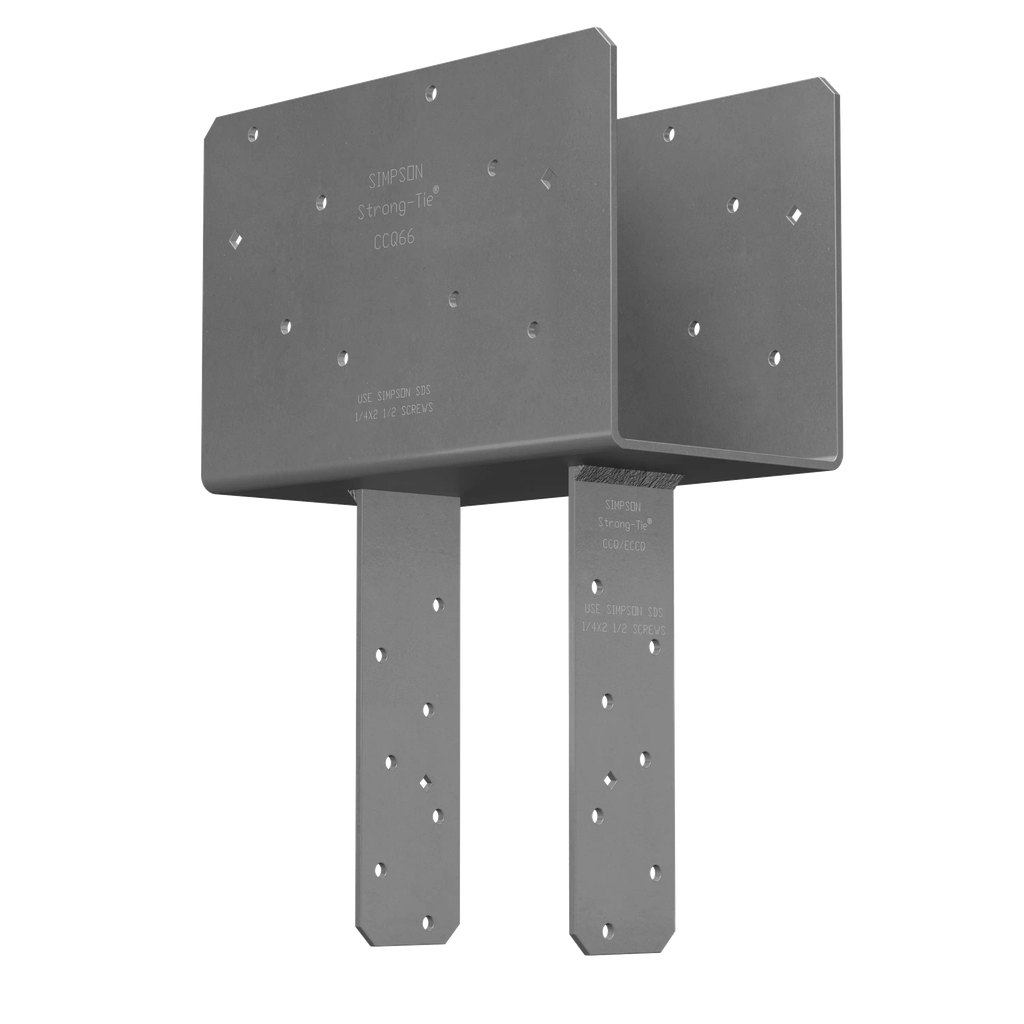

6X BEAM, 6X POST SDS
$149.29
Engineered for robust performance, the CCQ™ Column Cap by Simpson Strong-Tie is designed specifically for 6x beams and 6x posts, ensuring secure connections in structural applications. This cap features certified welds that enhance its strength and load capacity, making it particularly reliable for uplift loads associated with earthquake or wind conditions. The included Strong-Drive® SDS screws offer a lower profile compared to standard through bolts, streamlining the installation process and providing versatility with diamond holes for temporary fastening. Finished with a durable gray paint, this 7-gauge steel column cap not only delivers essential structural integrity but also contributes to the overall resilience of your construction project.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 14.01 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Compatible Post Size | 6x |
| Compatible Beam Size | 6x |
