6X12 HVY JOIST HGR W/SDS 1/4X2-1/2 ZMAX
$84.15

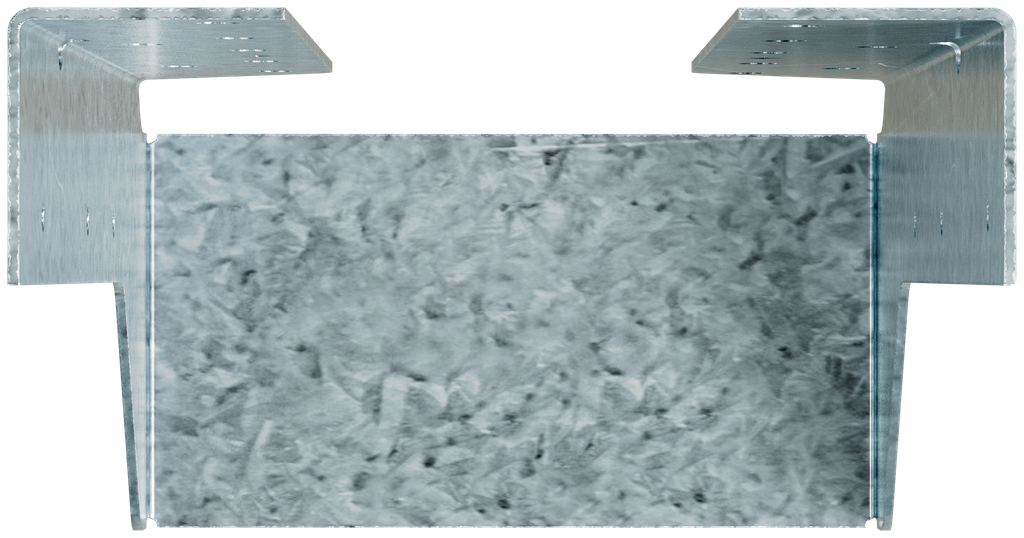

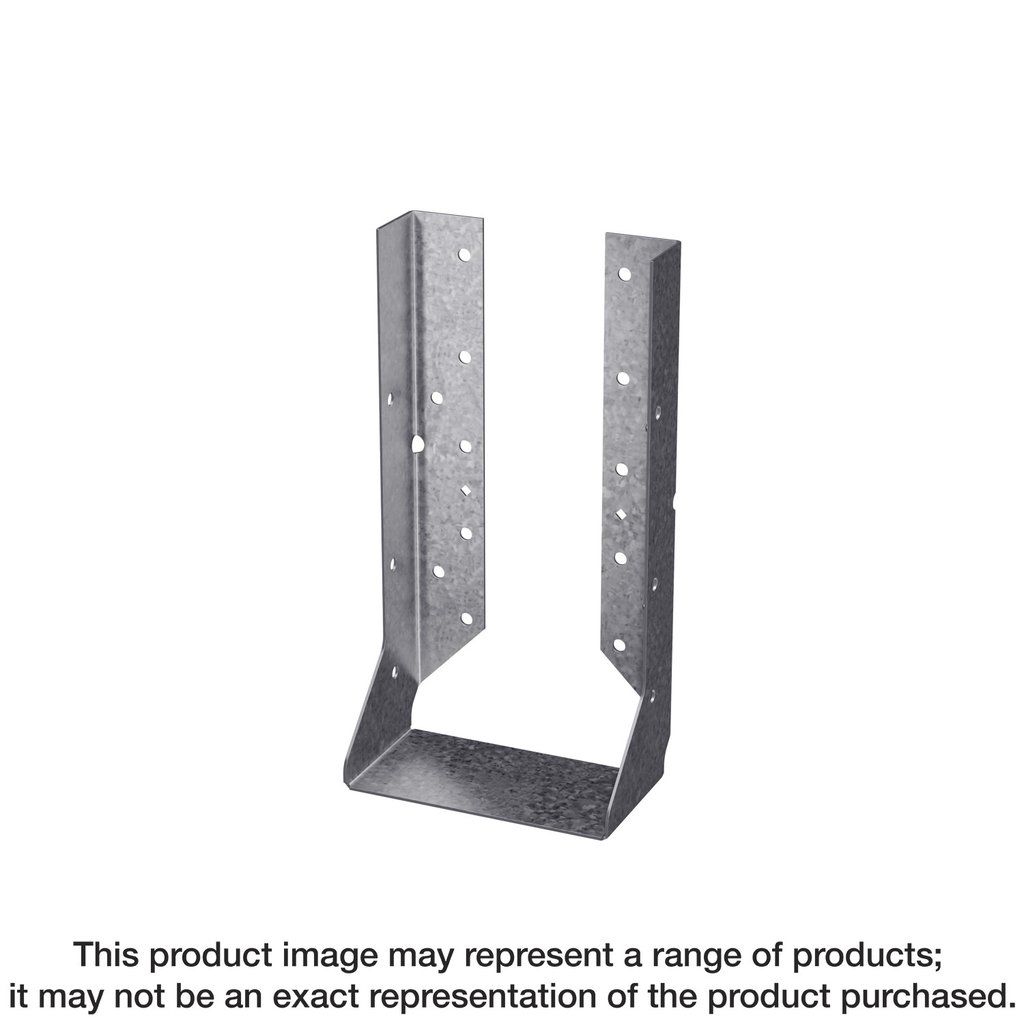

Crafted with precision from 14-gauge steel, this heavy face-mount concealed-flange joist hanger is designed specifically for 6×12 wood joists, ensuring a secure and reliable connection. The concealed flanges contribute to a sleek appearance for exposed installations, enhancing both the aesthetics and structural integrity of your project. Included Strong-Drive SDS Heavy-Duty Connector screws facilitate easy and effective installation, while the ZMAX galvanization provides extra corrosion resistance, making it suitable for exterior and treated-wood applications. Each hanger is tested and load-rated for compliance with building codes, ensuring peace of mind in your construction tasks.
Description
The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.
Additional information
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5.7065 in |
| Nominal Joist Size | 6×12 in |
