#7 1-5/8IN 316SS TRIM #1 17PT 4M
$495.24

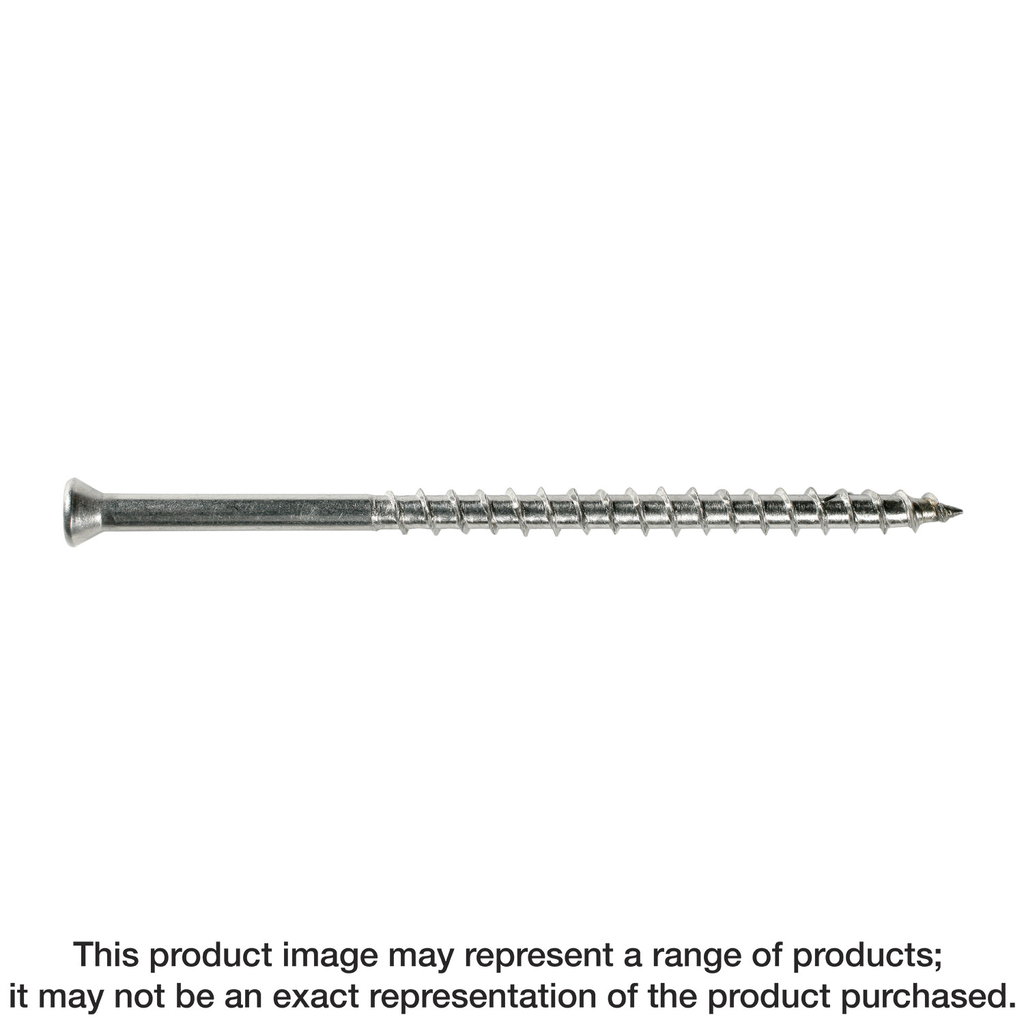

The Simpson Strong-Tie Trim-Head Screw is designed for optimal performance in decking and structural applications, featuring a refined trim-style head that ensures a flush seating for a cleaner appearance on the surface. Manufactured from Type 316 stainless steel, these screws offer exceptional resistance against corrosion, making them ideal for use in severe environments. With a Type-17 point, the screws provide quick starts and minimize splitting, especially when installed near board ends; predrilling is recommended for best results. Additionally, a driver bit is included in each package for easy installation; the square-drive design enhances driving performance, ensuring a secure fit.
Description
Ideal for decking applications, the Simpson Strong-Tie® trim-head screw features a square drive for secure, slip-free engagement during installation. The low-profile, trim-style head sits flush with the surface, delivering a clean finish. A Type-17 point allows for quick starts, while coarse threads on the lower two-thirds of the shank provide powerful pull-through—drawing deck boards tightly to the joists for a secure hold. Simpson Strong-Tie offers this trim-head screw in stainless steel 6-lobe drive (and painted heads) for hand-drive applications, as well as in collated square-drive versions (with and without painted heads) for the Simpson Strong-Tie® Quik Drive® auto-feed screw driving systems.
Additional information
| Weight | 22 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 0.230 in |
| Screw Length | 1-5/8 in. |
