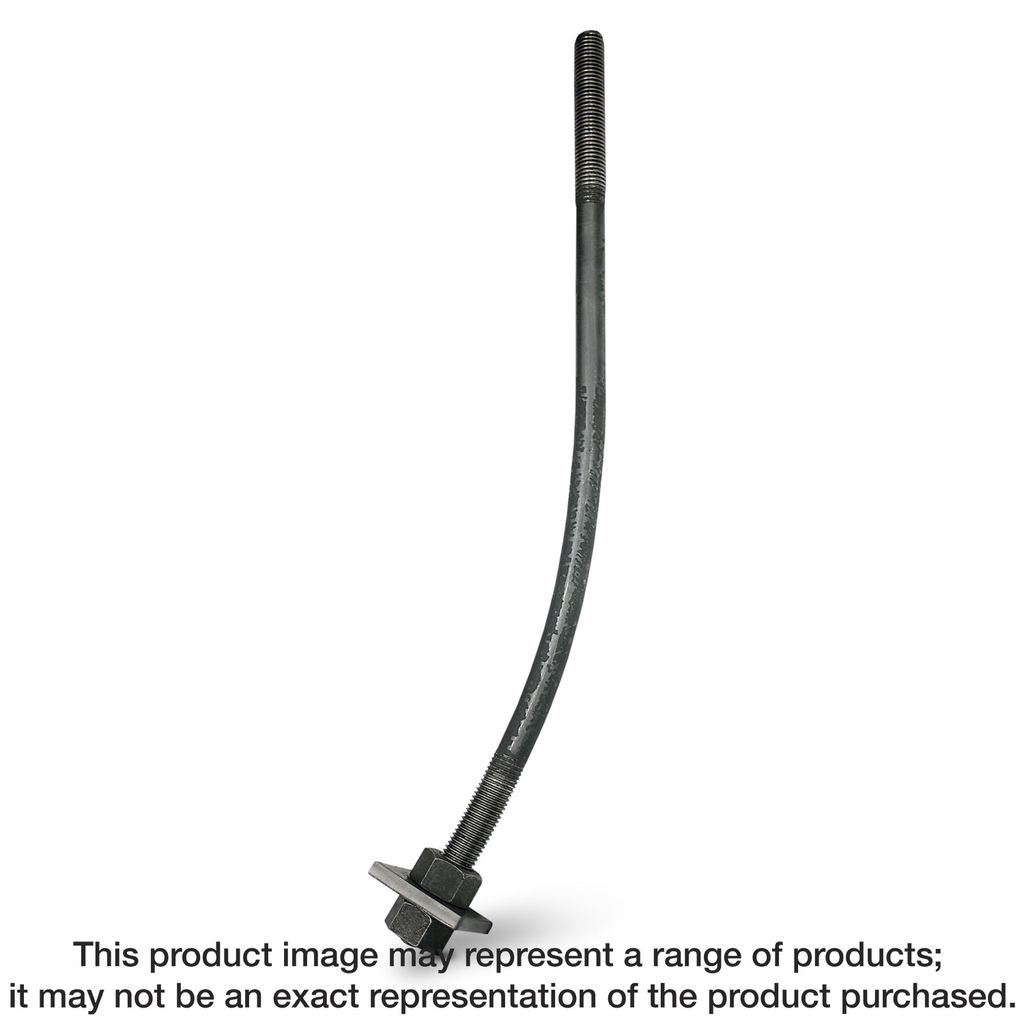

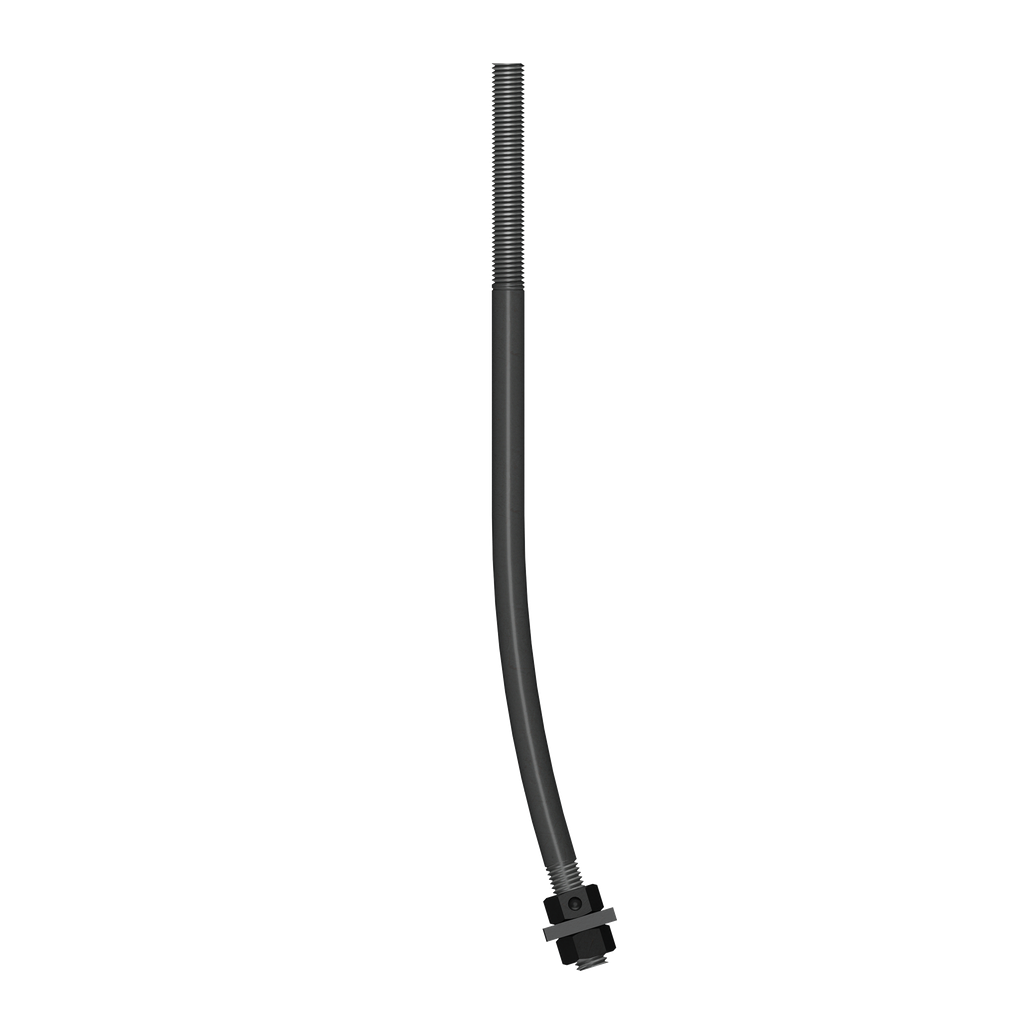

7/8IN DIA 24IN ANCHOR BOLT
$31.64
Engineered for strength and reliability, the 7/8 in. diameter by 24 in. long anchor bolt from Simpson Strong-Tie is designed to meet the demanding requirements of construction applications. This robust bolt features a rolled thread, enhancing its tensile capacity, while the identification on the bolt head indicates the embedment angle and model for straightforward installation. Additionally, its hex nuts and plate washer are fixed in position, ensuring stability during use. The innovative sweep geometry optimizes the position in formwork, making it an essential choice for any structural project requiring dependable anchoring solutions.
Description
The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB7/8×24 is designed to maximize performance with minimum embedment for holdowns utilizing a 7/8-in. diameter anchor.
Additional information
| Weight | 4.45 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Diameter | 7/8 in. |
| Length | 24 in |
