7/8IN DIA 29-7/8IN ANCHOR BOLT HDG
$59.84

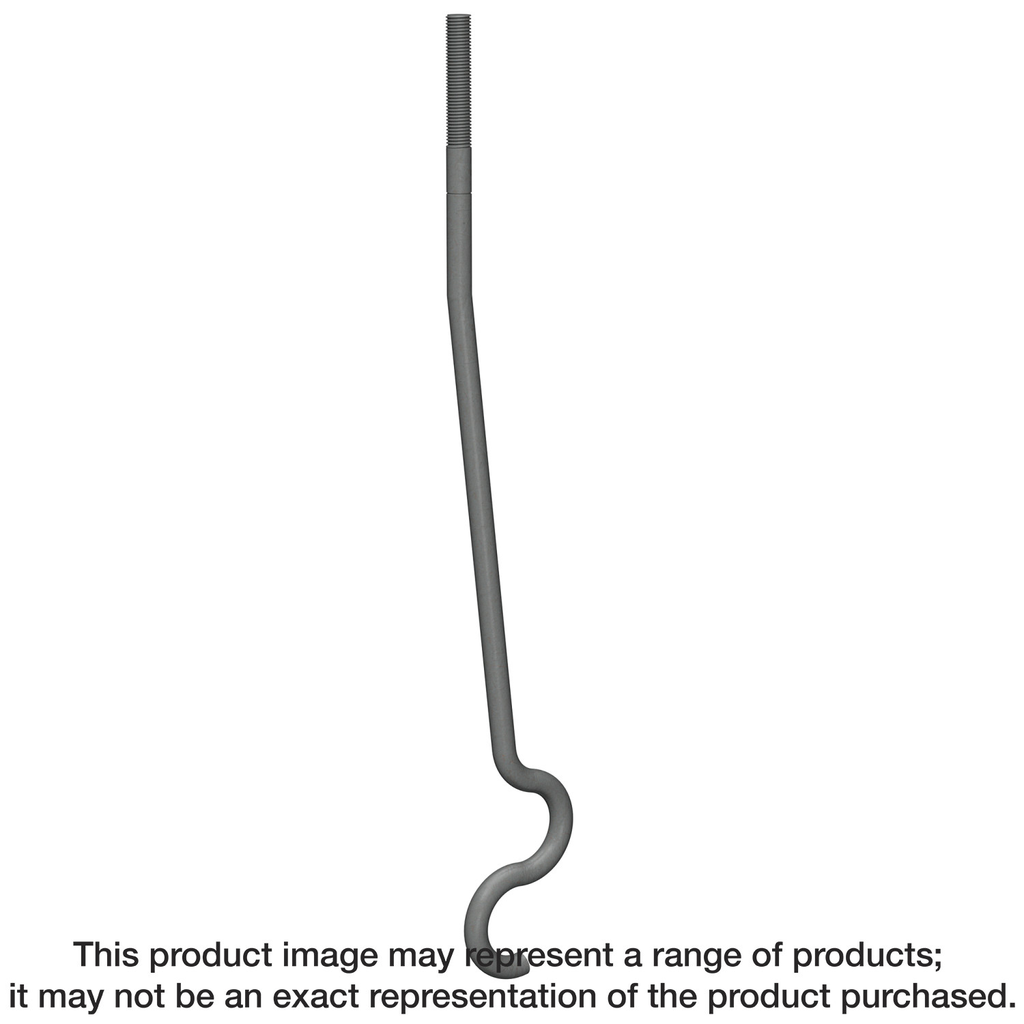

Engineered for strength and durability, the SSTB 7/8 in. x 29-7/8 in. Hot-Dip Galvanized Anchor Bolt by Simpson Strong-Tie is designed to provide reliable anchoring solutions in various concrete applications. The bolt features rolled threads that enhance tensile capacity, while its unique offset angle helps reduce the risk of side bursting and ensures adequate concrete cover. Each bolt includes an identification mark on the head, indicating the embedment angle and model for easy installation, complemented by a stamped embedment line. Constructed with hot-dip galvanization, this anchor bolt offers superior corrosion resistance suitable for both exterior and treated-wood projects, making it a dependable choice for monolithic and two-pour concrete setups.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 4.55 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Diameter | 7/8 in. |
| Length | 29-7/8 in |
