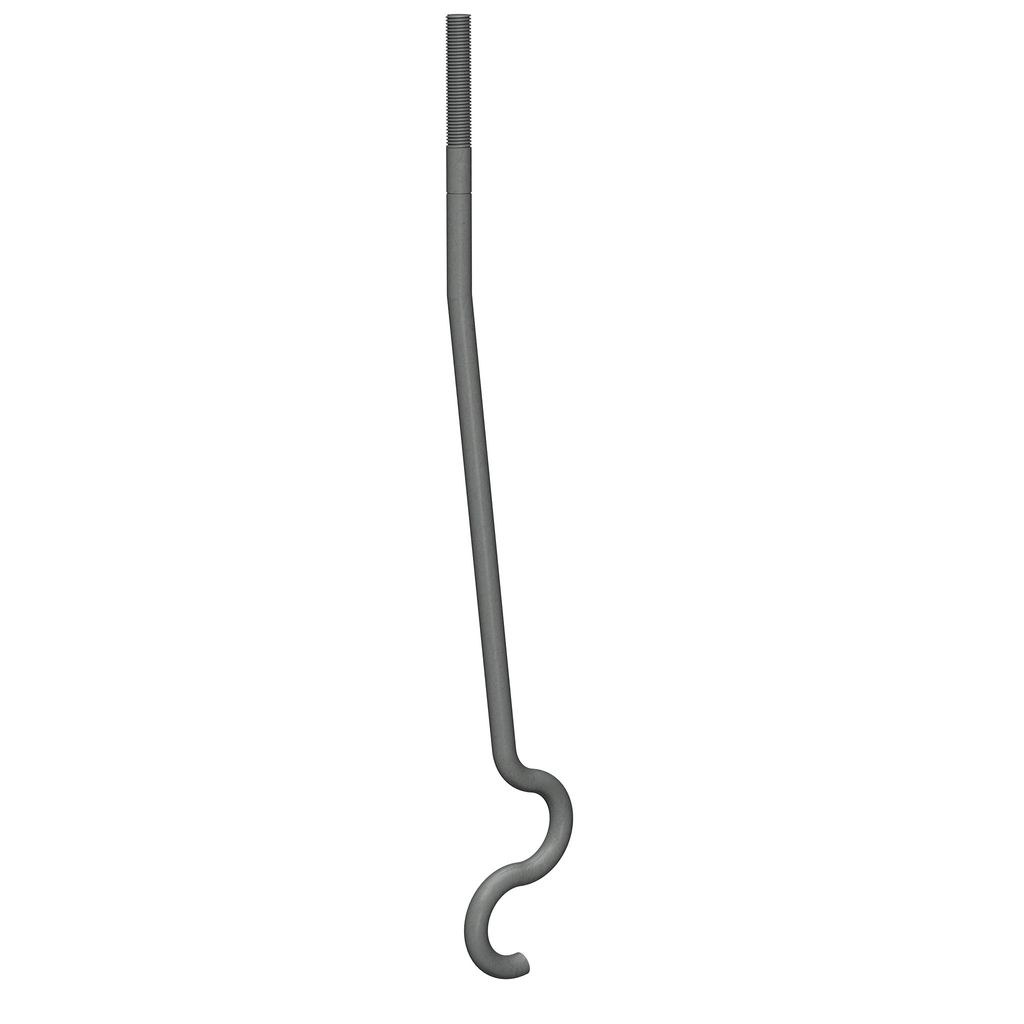

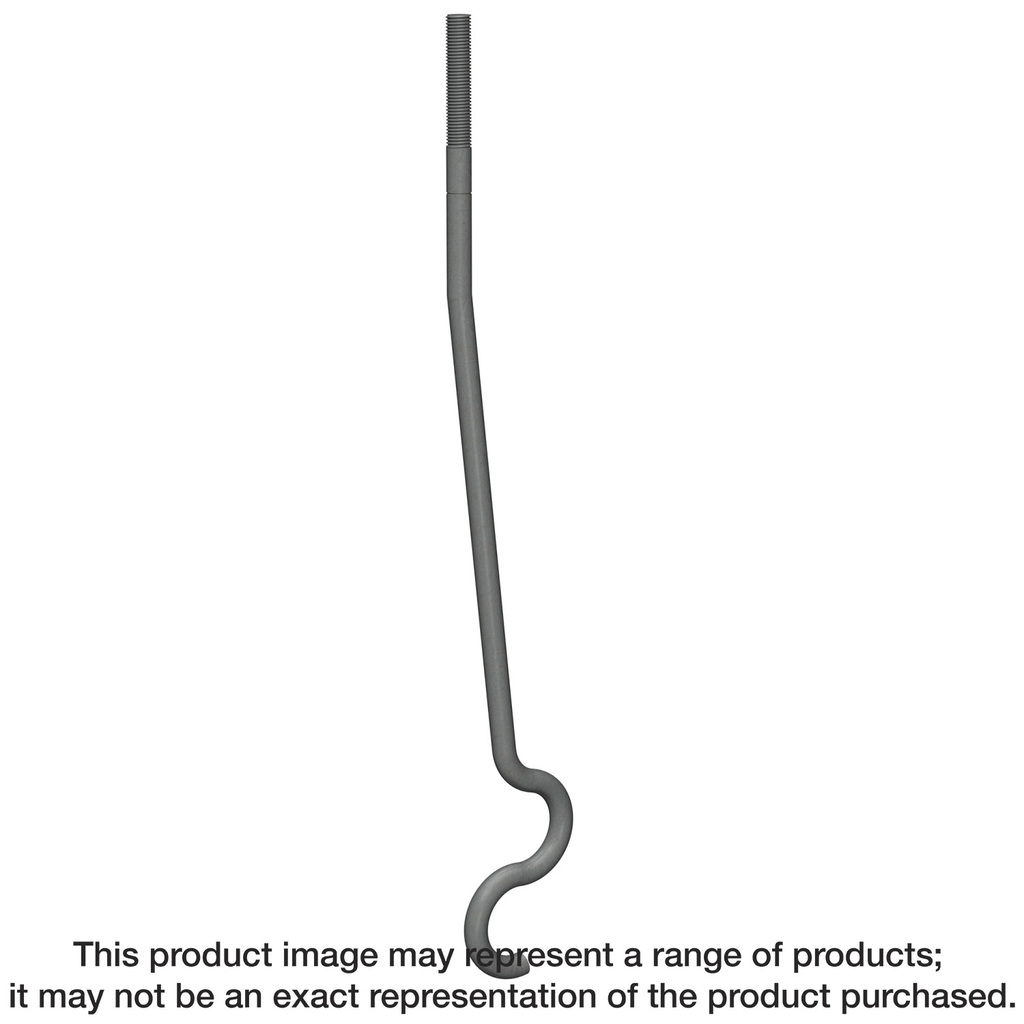

7/8IN DIA 34-7/8IN ANCHOR BOLT HDG
$61.92
Engineered for versatility and strength, the SSTB 7/8 in. x 34-7/8 in. Hot-Dip Galvanized Anchor Bolt from Simpson Strong-Tie is an essential component for various concrete applications, including both monolithic and two-pour systems. Its innovative design features an offset angle that minimizes the risk of side bursting while ensuring optimal concrete cover, enhancing the structural integrity of your projects. The rolled thread provides a higher tensile capacity, making it a reliable choice for demanding environments. Additionally, the hot-dip galvanization offers superior corrosion resistance, making it well-suited for exterior and treated-wood applications. With a stamped embedment line to facilitate accurate installation and clear identification marking on the bolt head, this anchor bolt stands out as a robust solution for your construction needs.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 5.34 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 34-7/8 in. |
| Diameter | 7/8 in. |
