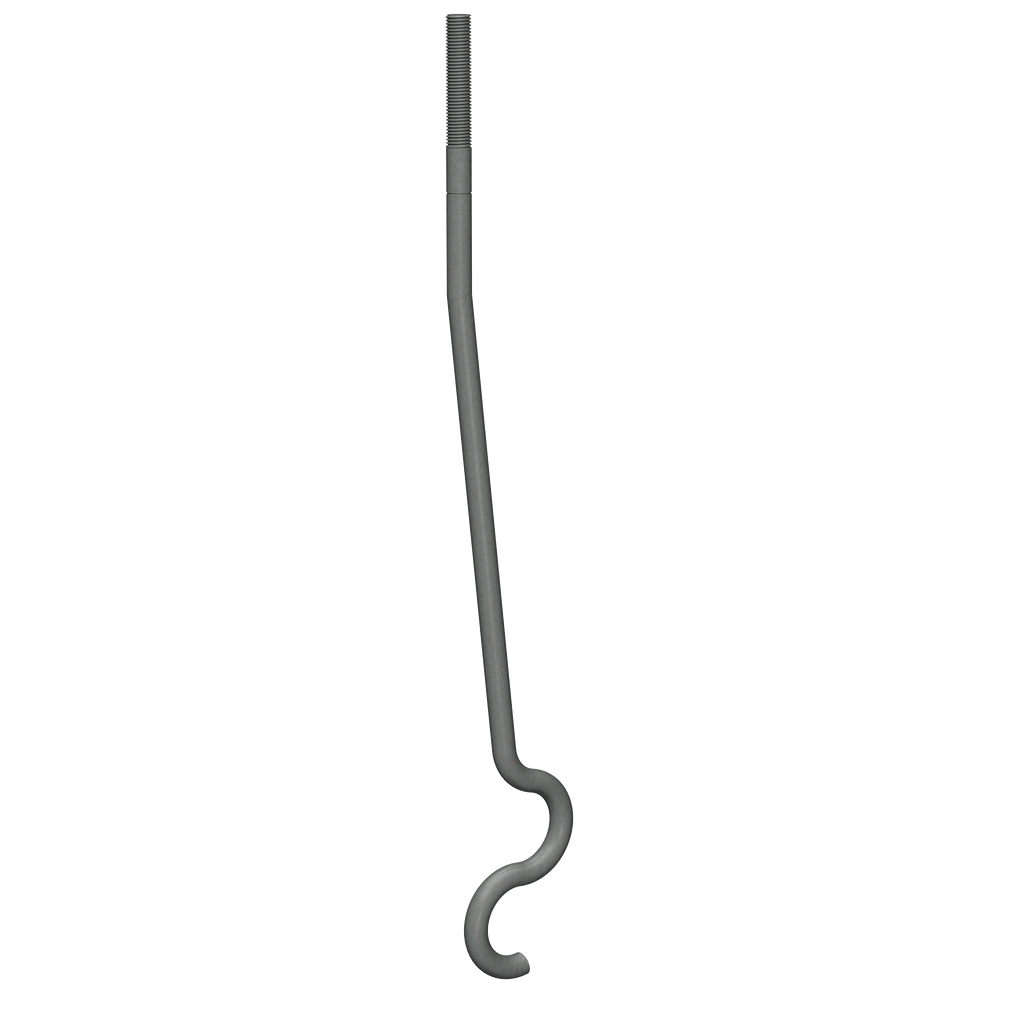

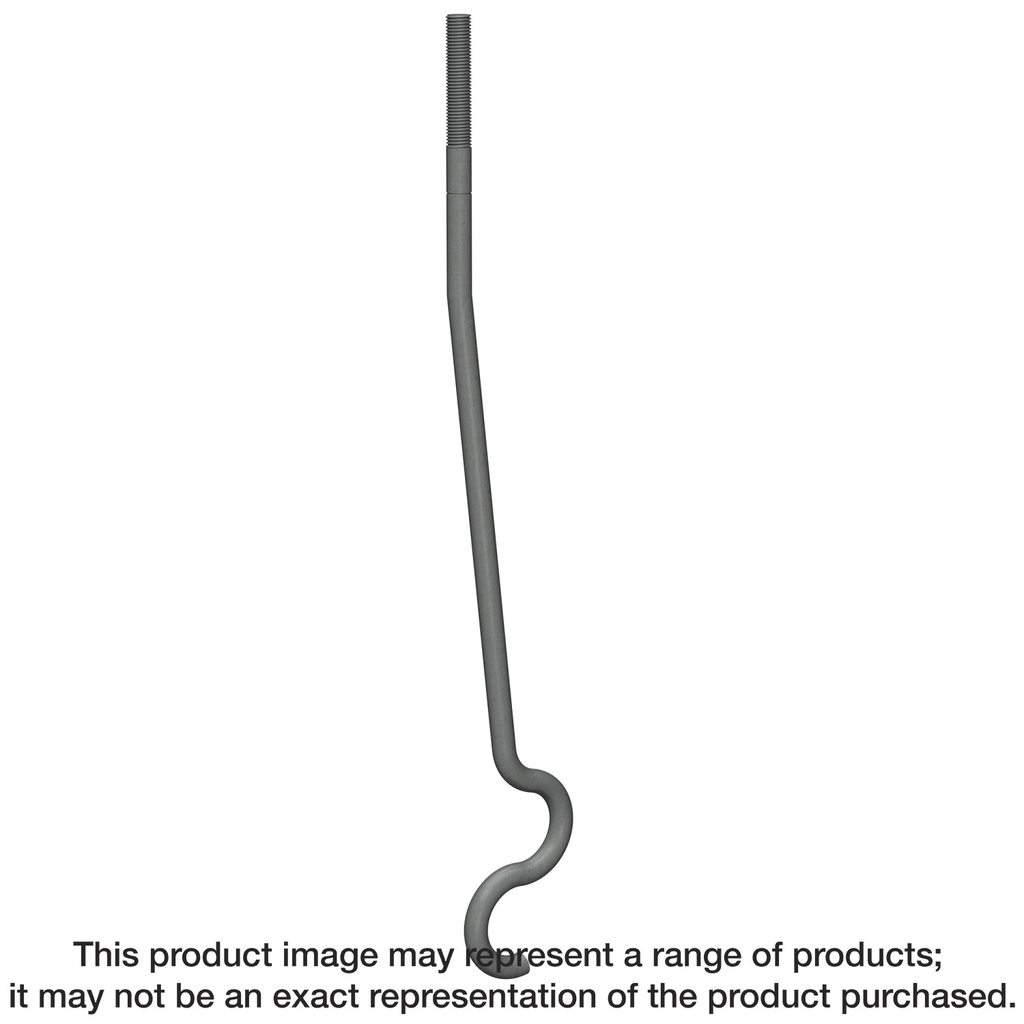

7/8IN DIA 34-7/8IN ANCHOR BOLT
$43.85
Engineered for strength and reliability, the SSTB 7/8 in. x 34-7/8 in. Anchor Bolt from Simpson Strong-Tie is an essential component for robust construction projects. Its rolled thread design significantly enhances tensile capacity, making it ideal for applications requiring high performance. The stamped embedment line simplifies installation, while the offset angle minimizes side bursting and ensures ample concrete cover, which is critical for structural integrity. This anchor bolt is suitable for both monolithic and two-pour concrete uses, and its bolt head features clear identification of the embedment angle and model, facilitating precise implementation on site.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 5.34 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 34-7/8 in |
| Diameter | 7/8 in |
