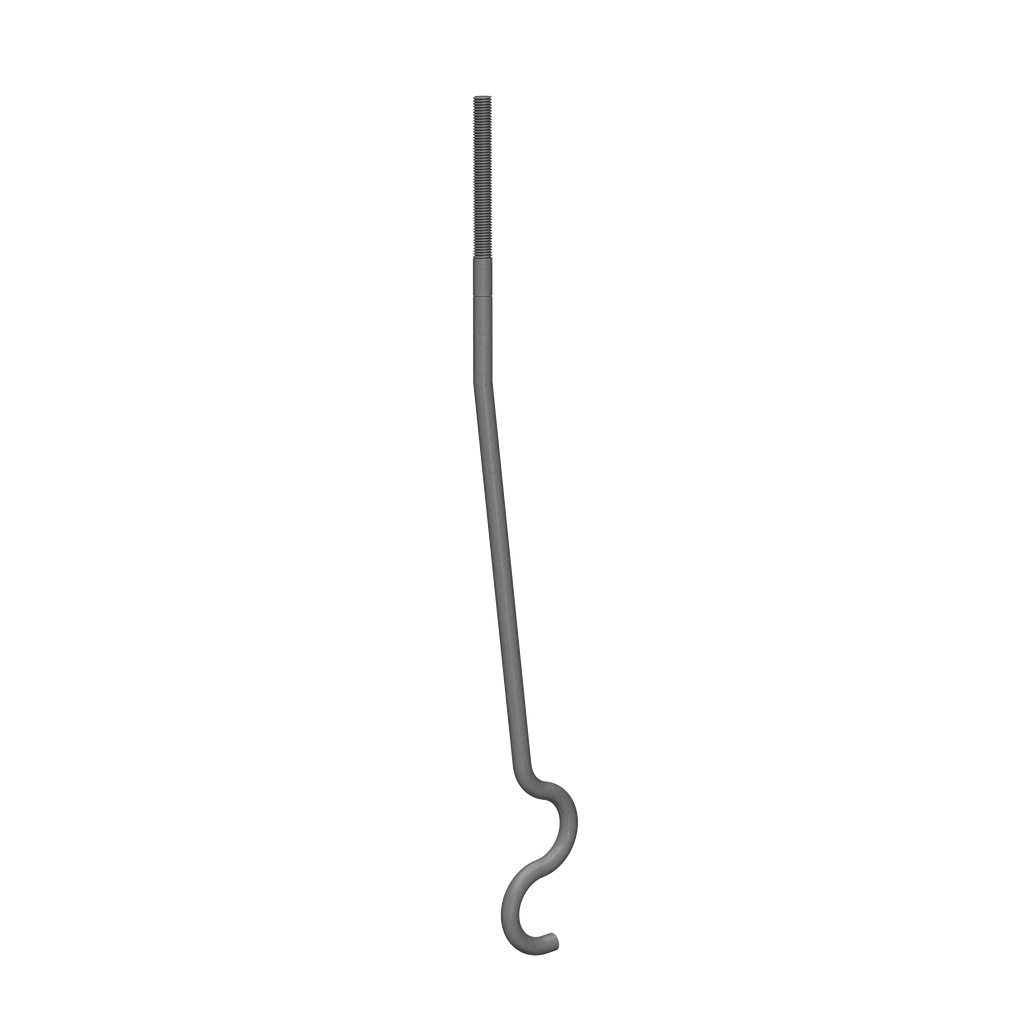

7/8IN DIA 36-7/8IN ANCHOR BOLT
$39.57
Engineered to meet the demands of concrete construction, this anchor bolt is ideal for both monolithic and two-pour applications. Featuring an identification mark on the bolt head for easy reference to the embedment angle and model, installation is streamlined thanks to the stamped embedment line. The rolled thread design enhances tensile capacity, ensuring a robust hold, while the offset angle minimizes side bursting and provides ample concrete cover for added security against structural movement. Made from high-quality ASTM F-1554, Grade 36 material, this anchor bolt represents a critical component for reliable and durable anchoring solutions.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 5.65 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 7/8 in x 36-7/8 in |
| Material | ASTM F-1554 Grade 36 |
