7″ BEAM, 7″ POST ECC
$160.18

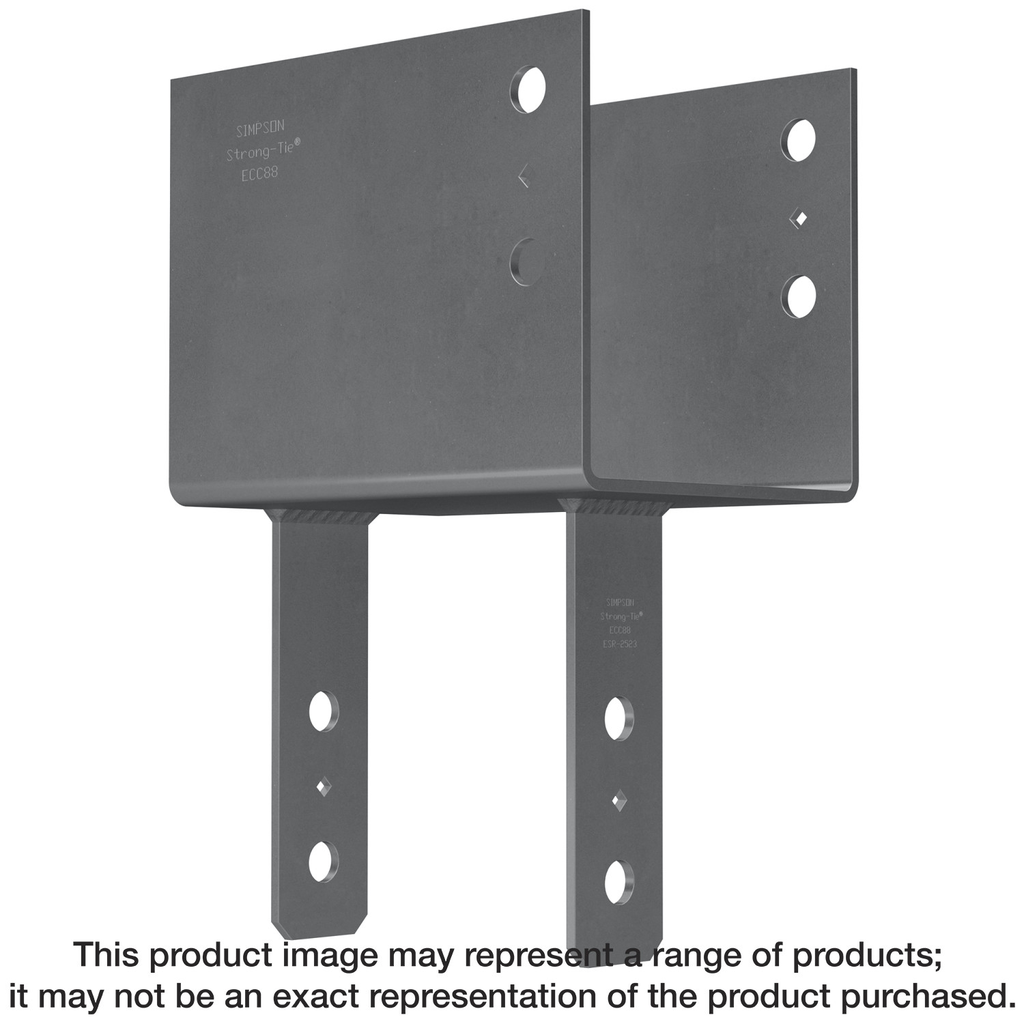

Engineered for exceptional strength and reliability, this end column cap provides robust support for 7-inch beams and posts, making it a vital component in construction projects. Crafted from durable 3-gauge steel and coated with a Simpson Strong-Tie gray paint finish, it is designed to withstand increased uplift loads, particularly important in regions prone to earthquakes or high winds. The innovative diamond holes facilitate temporary fastening during installation, while the carefully considered bolt spacing ensures compliance with NDS code requirements for optimal performance and safety. This end column cap is an essential choice for builders seeking durable solutions that deliver confidence in their structural integrity.
Description
The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 18.48 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Post Size | 7 in. |
| Beam Width | 7 in. |
