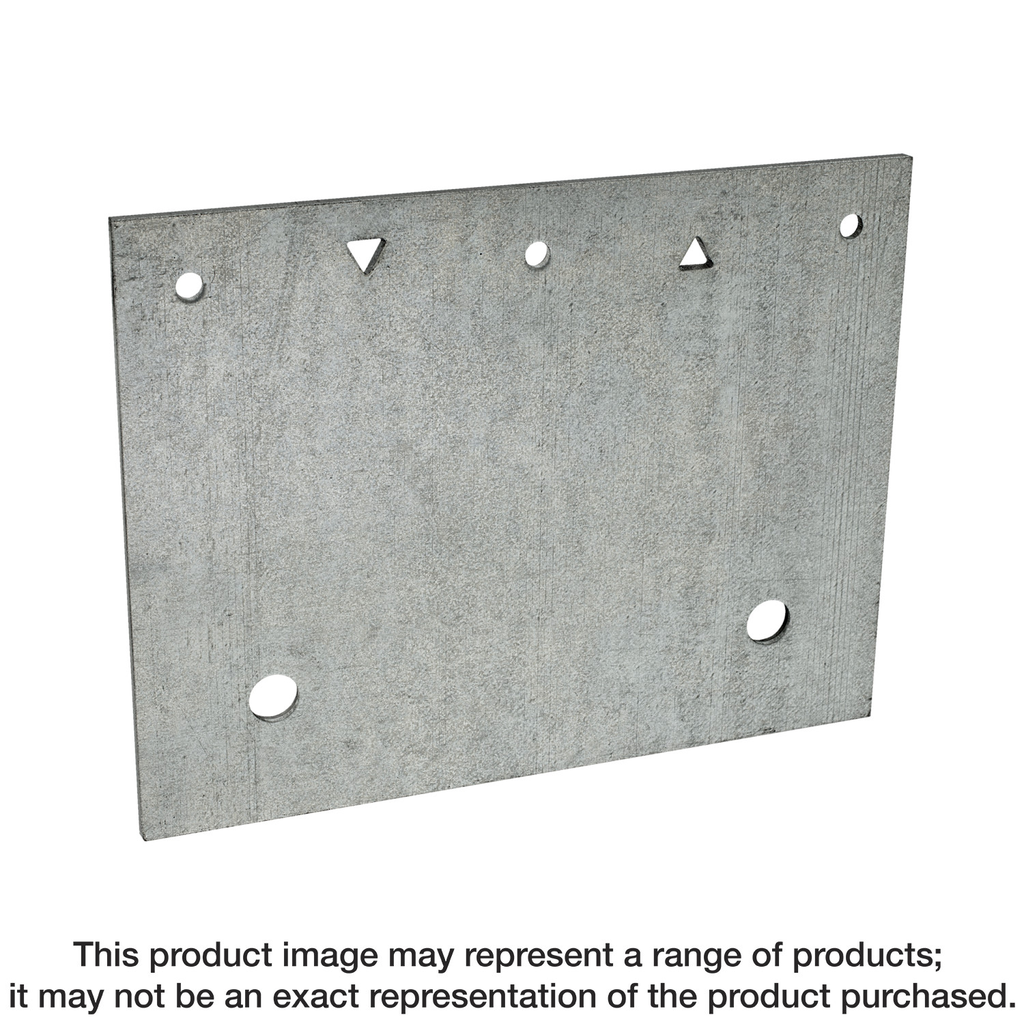

7 X 9 FLAT RETROFIT FOUNDATION PLATE HDG
$40.73
The FRFP® 7 in. x 9 in. Retrofit Foundation Plate from Simpson Strong-Tie is engineered for superior versatility and reliability in anchoring applications. Constructed from robust 7-gauge steel, this plate features hot-dip galvanization (HDG) to ensure enhanced resistance against corrosion, making it particularly suitable for exterior and treated-wood settings. Designed for easy integration, it serves as a one-for-one replacement for 5/8-inch anchor bolts when all five holes are utilized, and it is particularly effective when the mudsill is flush to the foundation or set back by up to 1-1/2 inches. By filling the two optional holes, this foundation plate not only increases load-bearing capacity but also allows for greater spacing, making it a reliable choice for various construction needs.
Description
Help protect your foundation from earthquakes and high winds with the FRFP® retrofit foundation plate. The next generation FRFP flat retrofit foundation plate connects the mudsill to the foundation and provides lateral load resistance. This design allows the Designer to maintain the same prescriptive requirements when filling the original three holes, or as an alternate, fill the newly added two optional triangle holes and utilize increased loads and greater allowable spacing.
Additional information
| Weight | 3.3 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 9 in |
| Height | 7 in |
