7 X 9 FLAT RETROFIT FOUNDATION PLATE
$23.55
Constructed from robust 7-gauge steel, the Retrofit Foundation Plate from Simpson Strong-Tie is designed to provide exceptional strength and stability, making it an ideal choice for enhancing structural integrity in various applications. With a generous accommodation of up to a 1-1/2 inch offset sill plate, this plate offers flexibility in design, allowing for ease of installation with optional fastening options. Its galvanized (G90) coating adds an extra layer of corrosion resistance, ensuring durability even in demanding environmental conditions, while also supporting increased loads that may be necessary for wind or earthquake loading. This foundation plate is not just a component; it’s a vital part of any reliable construction project, delivering the quality and performance essential for long-lasting structural support.
Description

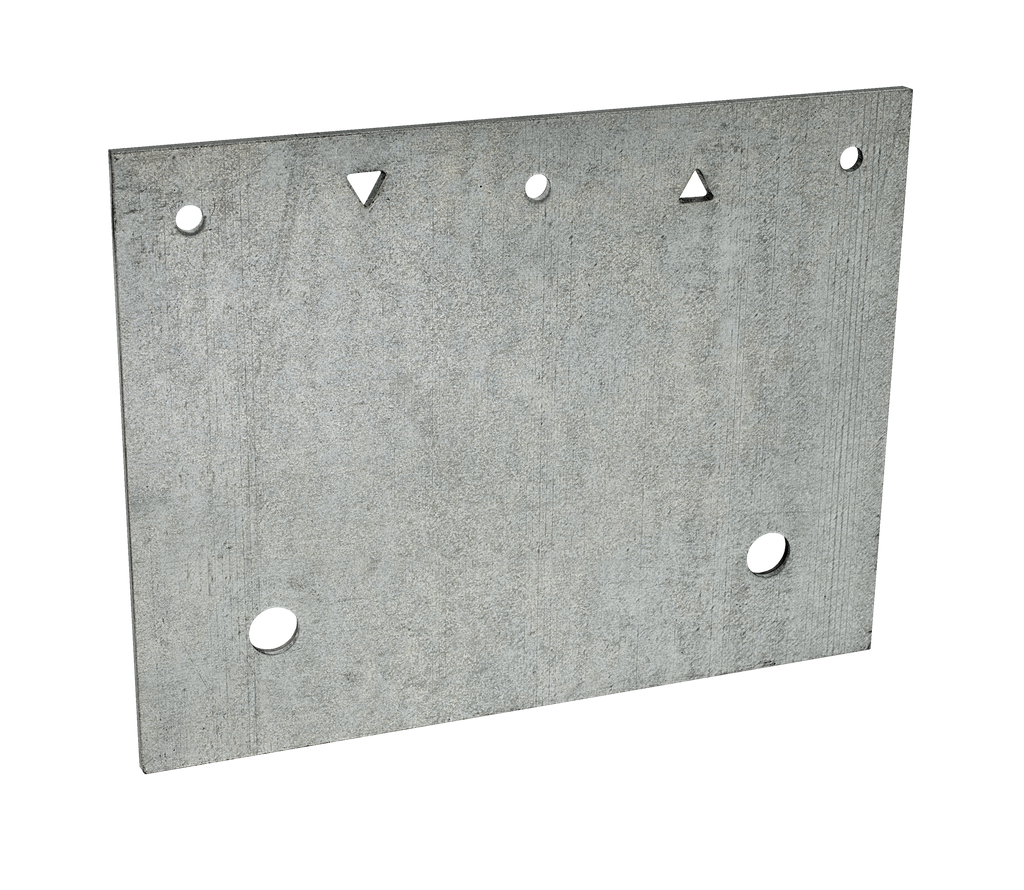

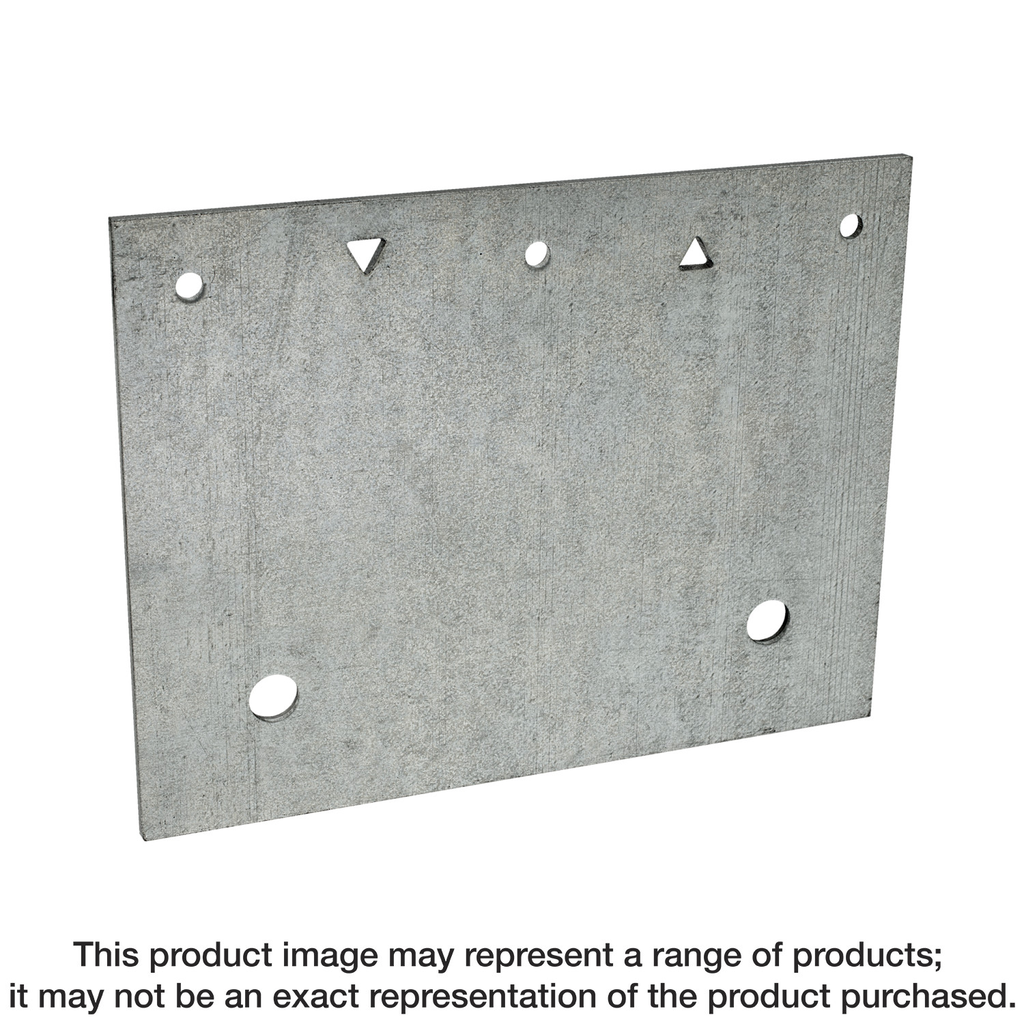

The FRFP® is designed to connect the mudsill to the foundation and provide lateral load resistance. This flat retrofit foundation plate features a design that allows the designer to maintain prescriptive requirements. The FRFP can be used by filling the three round holes, or as an alternative, filling two optional triangle holes to allow designers increased loads and greater spacing.
Additional information
| Weight | 3.28 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 9 in |
| Height | 7 in |
