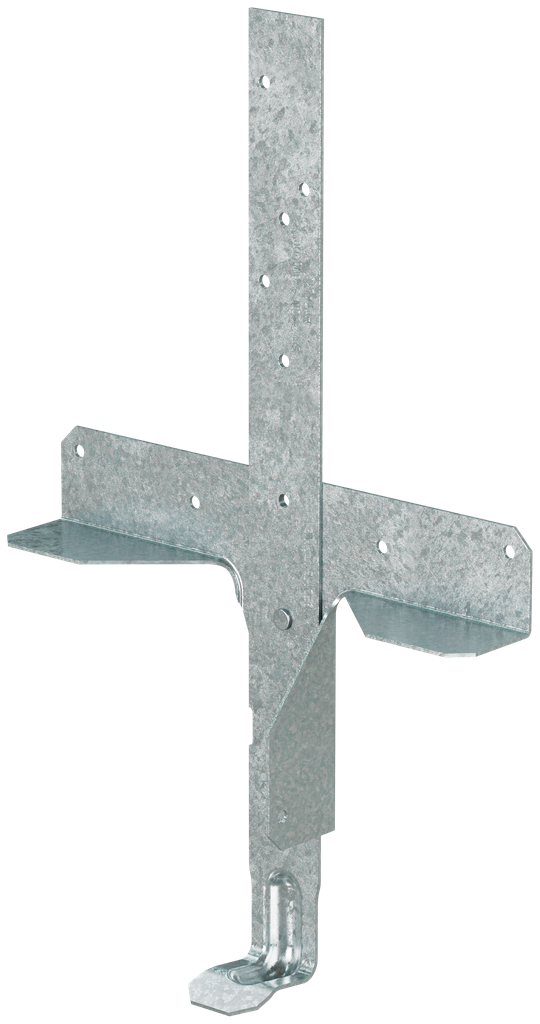

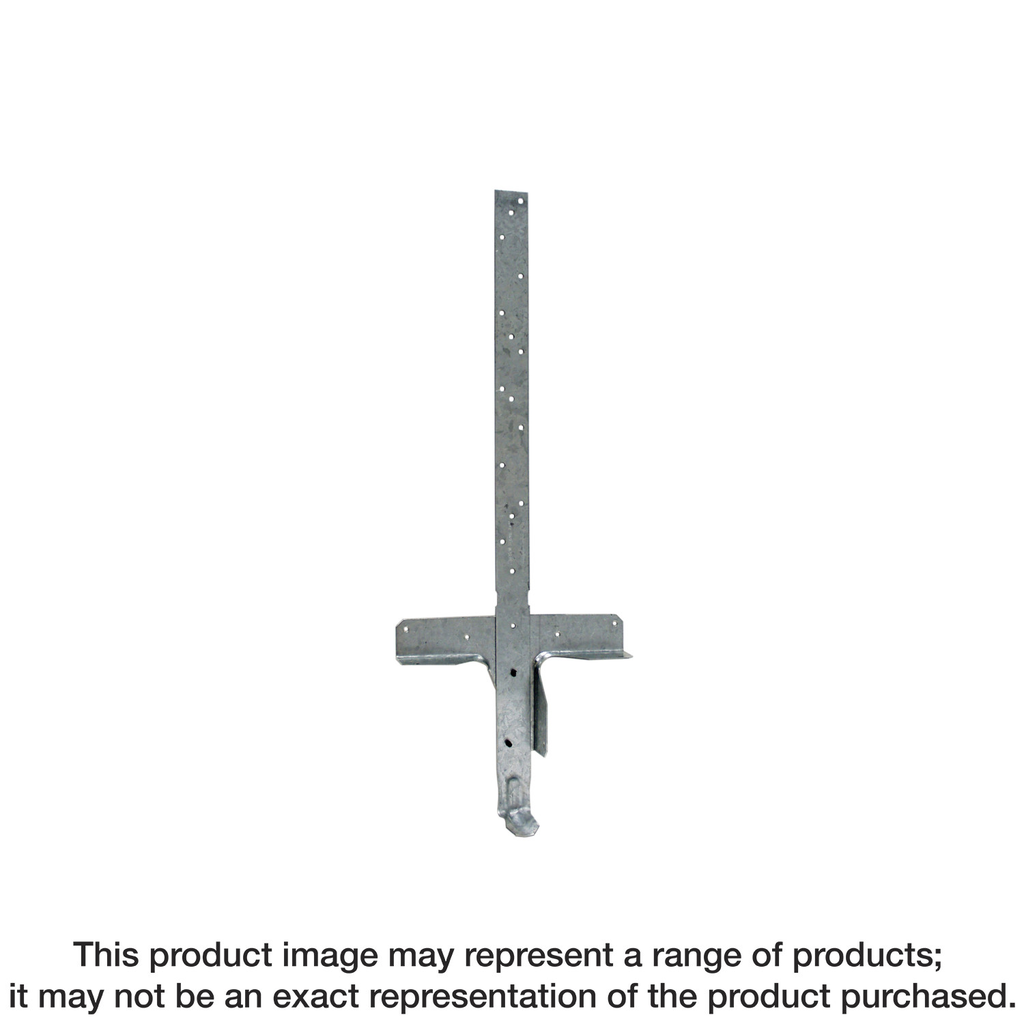

7IN W/5-1/16IN EMBED TRUSS ANCHOR
$4.25
Engineered for robust performance in structural applications, this heavy embedded truss anchor showcases durable construction with a strap made from 16-gauge steel and a truss seat from 18-gauge steel. Designed for versatility, it can be installed straight or bent in the field to accommodate various truss or rafter configurations. With a 7-inch exposed length and a secure embedment of 5-1/16 inches into a poured concrete bond beam or grouted block wall, it provides reliable anchorage that meets load requirements for wind and seismic forces. Additionally, the galvanized (G90) finish offers enhanced corrosion resistance, while the built-in moisture barrier ensures long-lasting performance in challenging environments.
Description
The HETAL provides an engineered method to attach roof trusses securely to concrete and masonry walls. This heavy embedded truss anchor works specifically to support lateral loads and features a staggered nail pattern to strengthen uplift resistance. The HETAL also features a built-in moisture plate that sits above the concrete or masonry wall.
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Rating | Wind and seismic forces |
| Length | 12 in |
