8 X 10 FACE MOUNT HANGER
$33.34

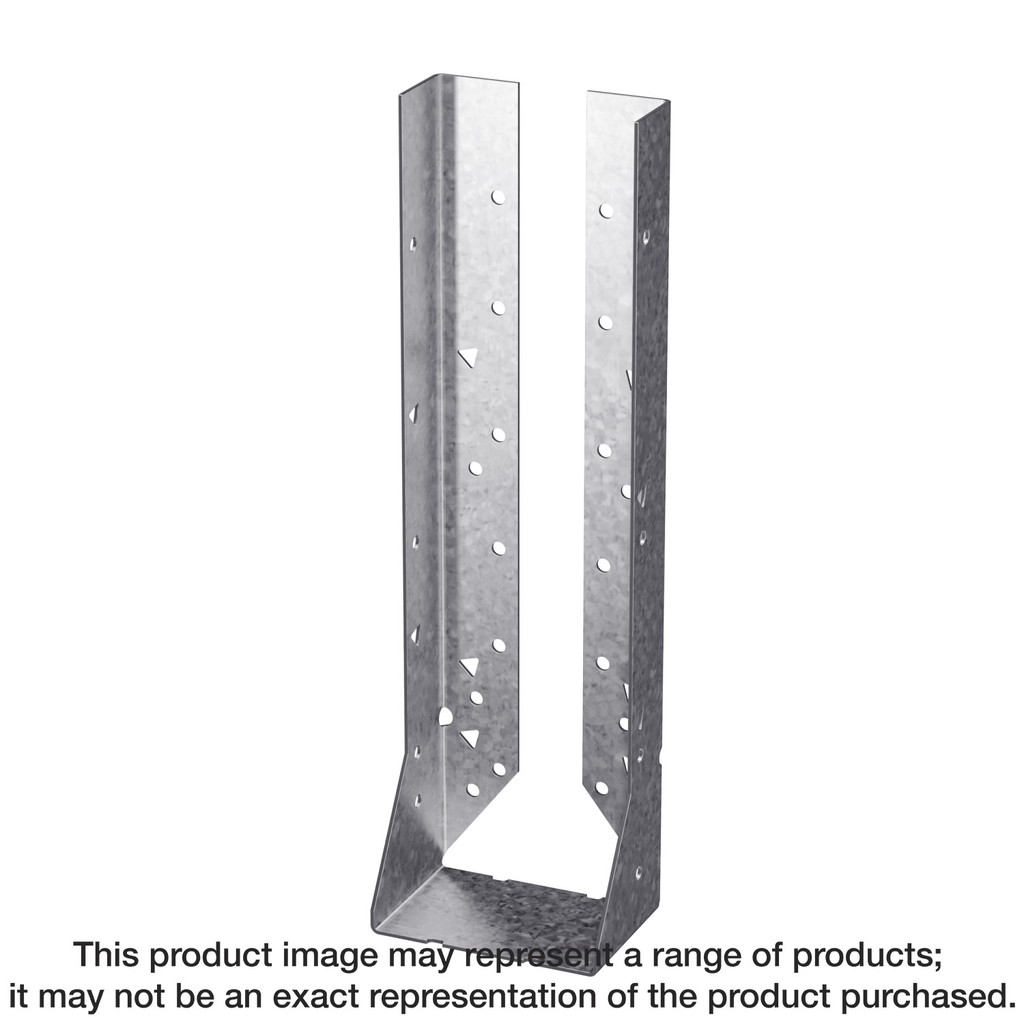

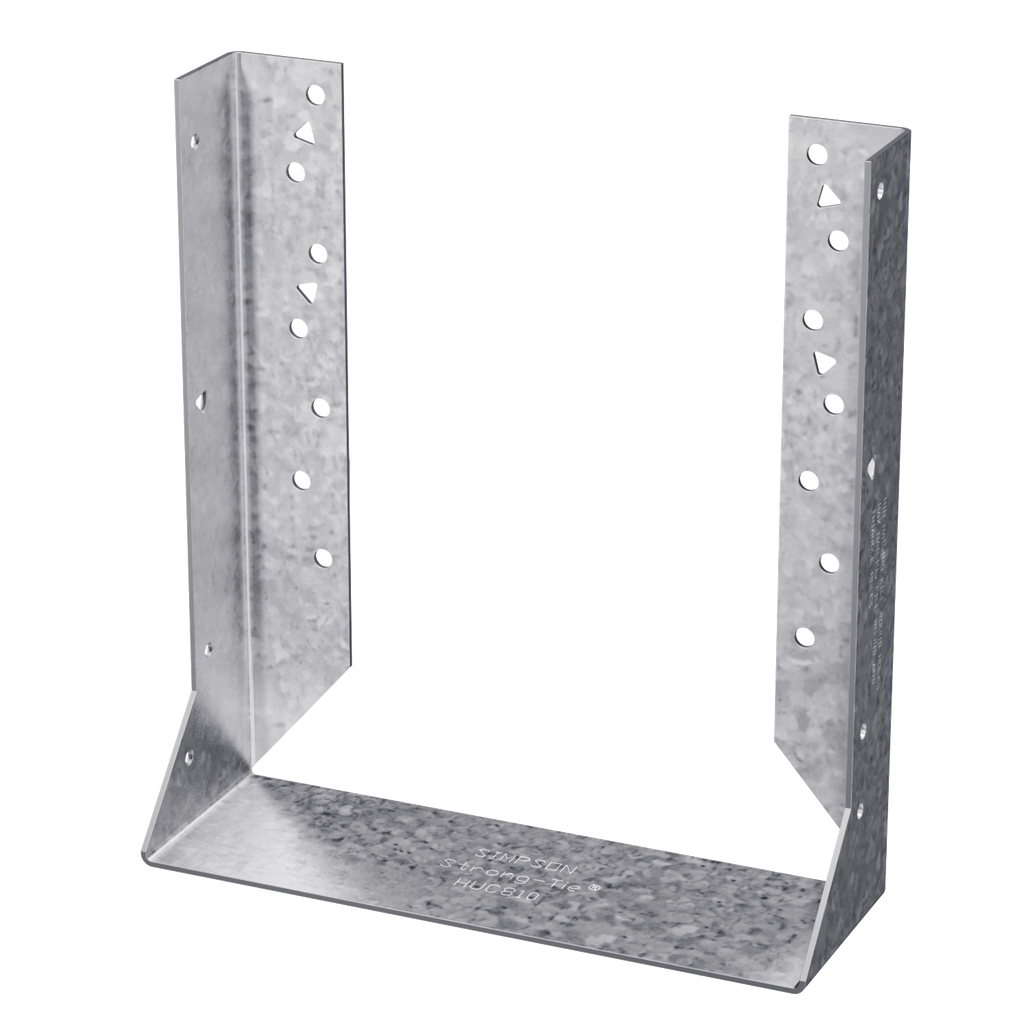

Engineered for strength and durability, the HUC-series concealed-flange joist hanger accommodates nominal joist sizes of 8×10 inches, providing robust support for wood joists when installing them to various materials including wood, masonry, and concrete. Constructed from 14-gauge steel and finished with a galvanized (G90) coating, this hanger offers enhanced corrosion resistance to ensure long-lasting performance in challenging environments. Additionally, the design includes extra optional triangle holes that allow for increased load capacity, making it an excellent choice for a range of building projects. Each hanger has been rigorously tested, load rated, and conforms to applicable codes, delivering peace of mind in your construction endeavors.
Description
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Additional information
| Weight | 1.27 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 8×10 in. |
| Seat Width | 7-1/2 in. |
