8IN W/4IN EMBED TRUSS ANCHOR
$0.97

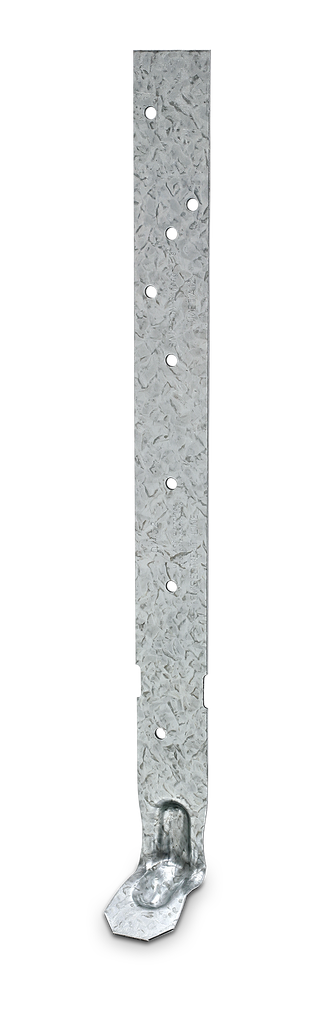

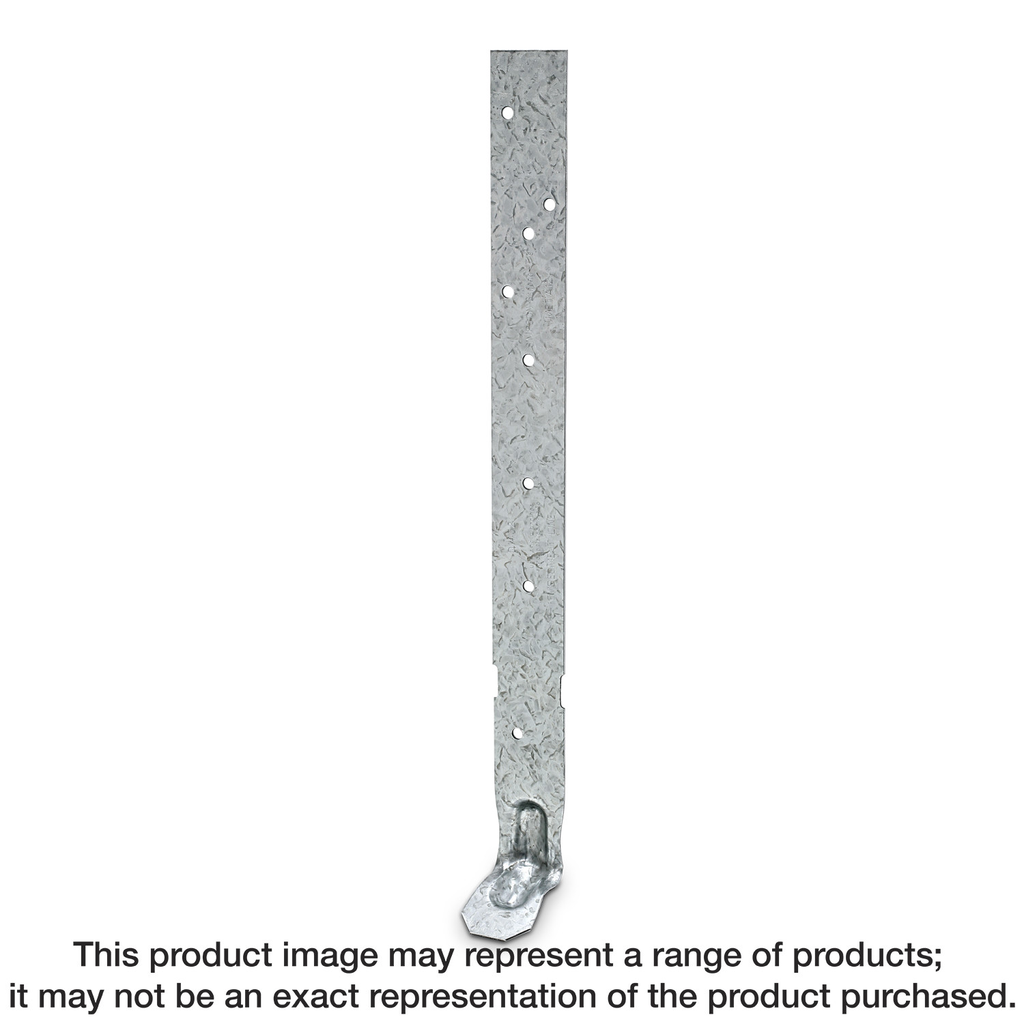

The META 12-in. Galvanized Embedded Truss Anchor from Simpson Strong-Tie is expertly crafted from 18-gauge steel, providing robust support for truss installations. Designed to be compatible with both the Simpson Strong-Tie TSS truss seat snap-in and the TBP8 moisture barrier plate, this anchor ensures reliable performance even in challenging conditions. With a load rating that meets the demands of wind and seismic forces, it is engineered to embed four inches into a minimum six-inch concrete beam or an eight-inch nominal grouted block wall. The galvanized G90 finish provides exceptional corrosion resistance, while the indented embedment line facilitates precise installation, making this anchor a reliable choice for engineers and builders alike.
Description
Simpson Strong-Tie® connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. The META provides an engineered method to attach roof trusses securely to concrete and masonry walls. This medium embedded truss anchor features staggered nail patterns to strengthen uplift resistance and can be used in pairs on single- and multi-ply trusses. The versatile META can be installed straight or field-bent around truss or rafter members.
Additional information
| Weight | 0.22 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Rating | Wind and Seismic Forces |
| Length | 12 in |
