8X BEAM, 6X POST COLUMN CAP
$173.18

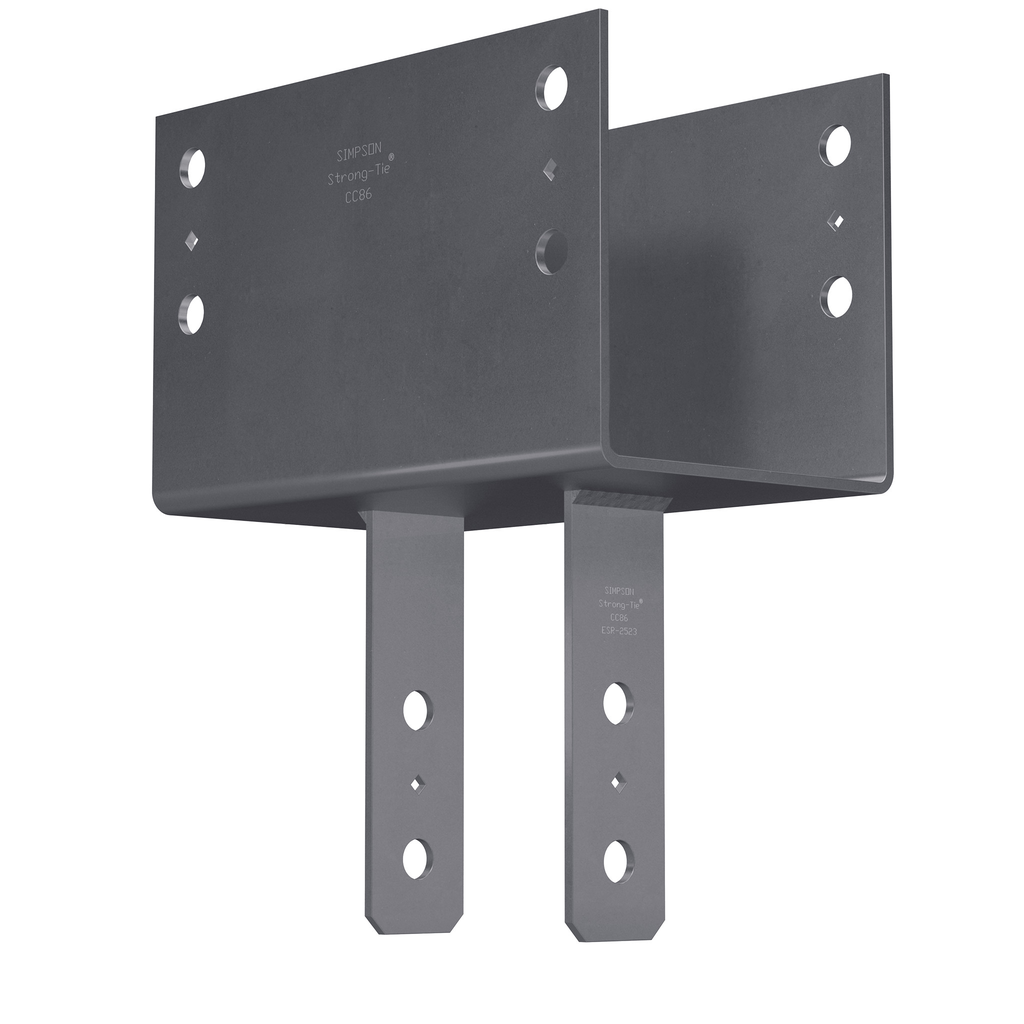

Engineered for robust structural support, the CC Column Cap is a vital component in creating secure connections between beams and posts. Constructed from durable 3-gauge steel, it features certified welds that ensure strength and reliability under load, while its bolt spacing is designed to comply with NDS code requirements, promoting optimal performance across various applications. Enhanced for increased uplift loads, this column cap is particularly suited to withstand the challenges posed by earthquake and wind forces. Additionally, the inclusion of diamond holes allows for temporary fastening, providing flexibility during installation, all presented in a durable Simpson Strong-Tie gray paint finish to ensure lasting resilience.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 22.7 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal beam width | 8x |
| Nominal post size | 6x |
