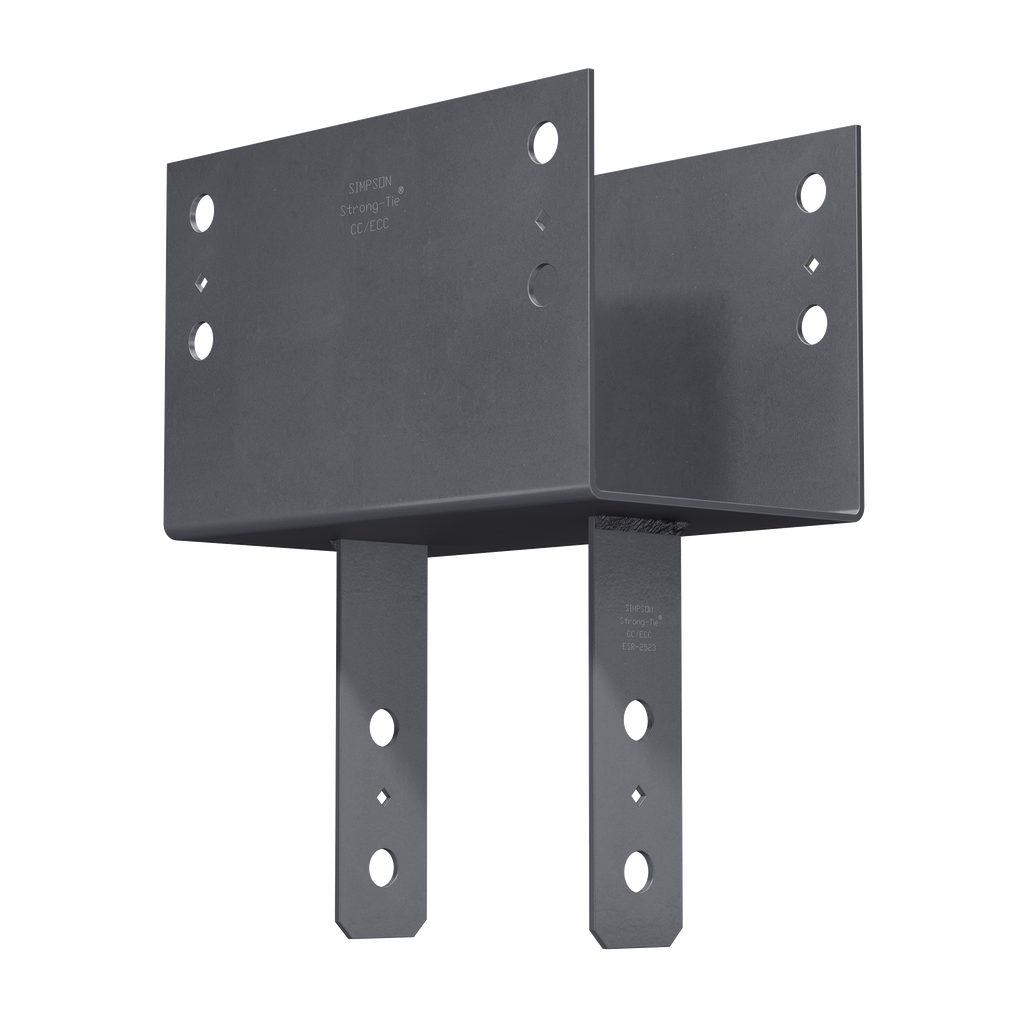

8X BEAM, 8X POST COLUMN CAP
$205.07
Engineered to provide robust support for structural applications, the CC Column Cap by Simpson Strong-Tie is designed specifically for 8x beams and posts. Crafted from durable 3-gauge steel, this cap ensures strength and reliability, featuring certified welds that instill confidence in its loading capabilities. It enhances uplift loads, making it ideal for use in environments subject to earthquake or wind forces, ensuring your structures remain secure under stress. The design incorporates diamond holes for temporary fastening, facilitating ease of installation, while the bolt spacing adheres to NDS code requirements, optimized for performance. Finished with a distinctive Simpson Strong-Tie gray paint, this column cap not only performs well but also stands the test of time in both function and aesthetics.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 22.7 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 7.958 in |
| Size | 8 in post, 8 in beam |
