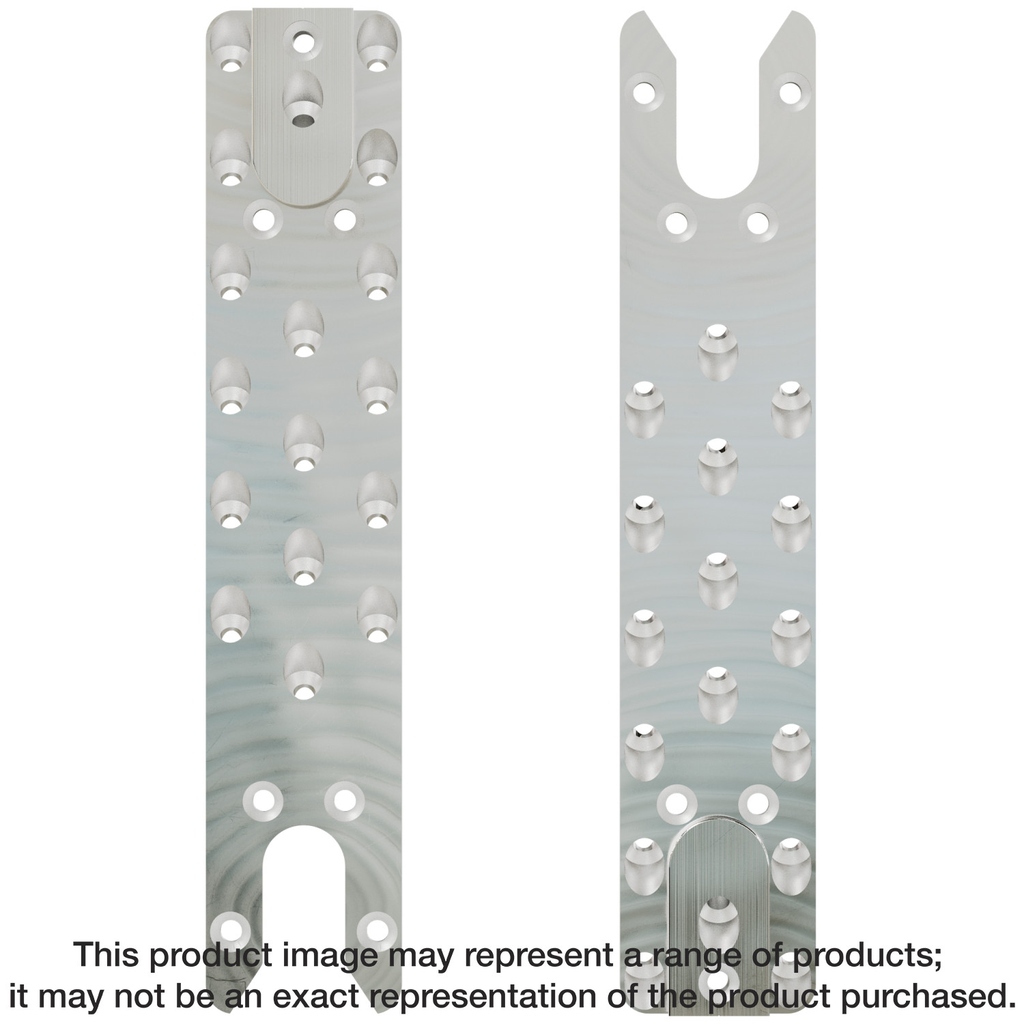

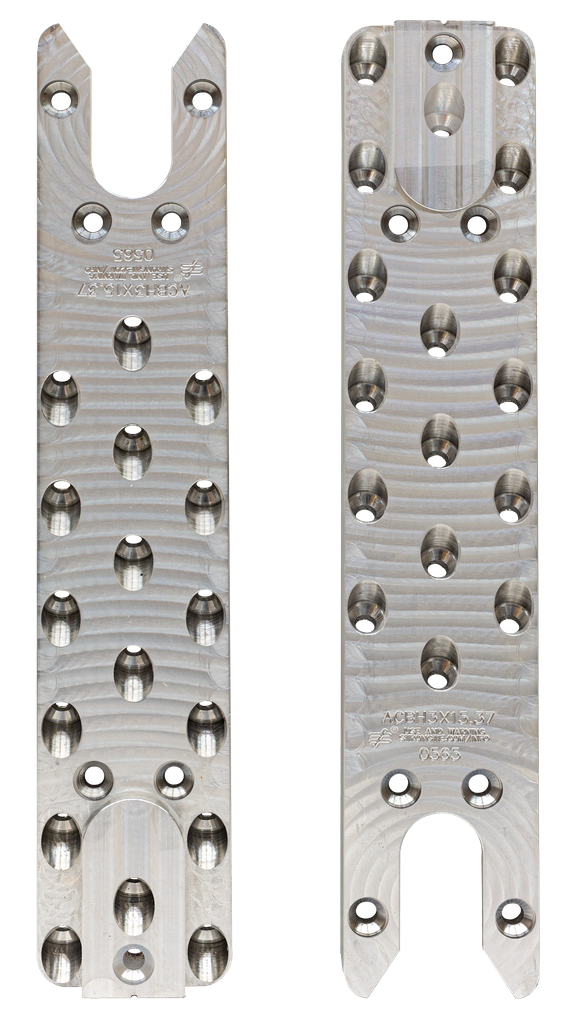

ACBH3X15.37 – 16 BACKPLATES/ 8 PAIRS
$2,738.08
Crafted for superior structural integrity, the ACBH™ joist-to-beam concealed hanger from Simpson Strong-Tie provides a robust solution for beam connections, ideal for both residential and commercial applications. With high capacity and a beam length tolerance of +/- 1/16 inch on each end, installation is streamlined and reliable, ensuring a precise fit. Its concealed design not only enhances architectural aesthetics but also supports fire-rated performance, meeting one- and two-hour fire resistance ratings as per ASTM E119 standards. This versatile hanger is particularly suitable for beam-to-beam connections in any Seismic Design Category, while also offering flexibility with multiple router options to accommodate specific job site requirements. The package includes 16 backplates for 8 connections, although screws are not included, making it a comprehensive solution for your construction needs.
Description
The ACBH concealed beam hanger is made for the rigors of mass timber construction and is machined from aluminum for a high-capacity design. With an allowable stress design load capacity of up to 20 kips, it is the strongest connector in the Simpson Strong-Tie line of concealed end-grain beam hangers. Its concealed connection allows for a wood-only aesthetic while offering one- and two-hour fire resistance ratings per ASTM E119. This hanger installs easily in the factory using fully threaded Strong-Drive® SDCF Timber-CF structural screws and offers generous onsite fit-up tolerance for smooth and easy beam installation. The ACBH is manufactured and stocked in the US for reliable availability.
Additional information
| Weight | 30.7 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Height | 15-3/8 in |
| Size | 3 in x 15-3/8 in |
