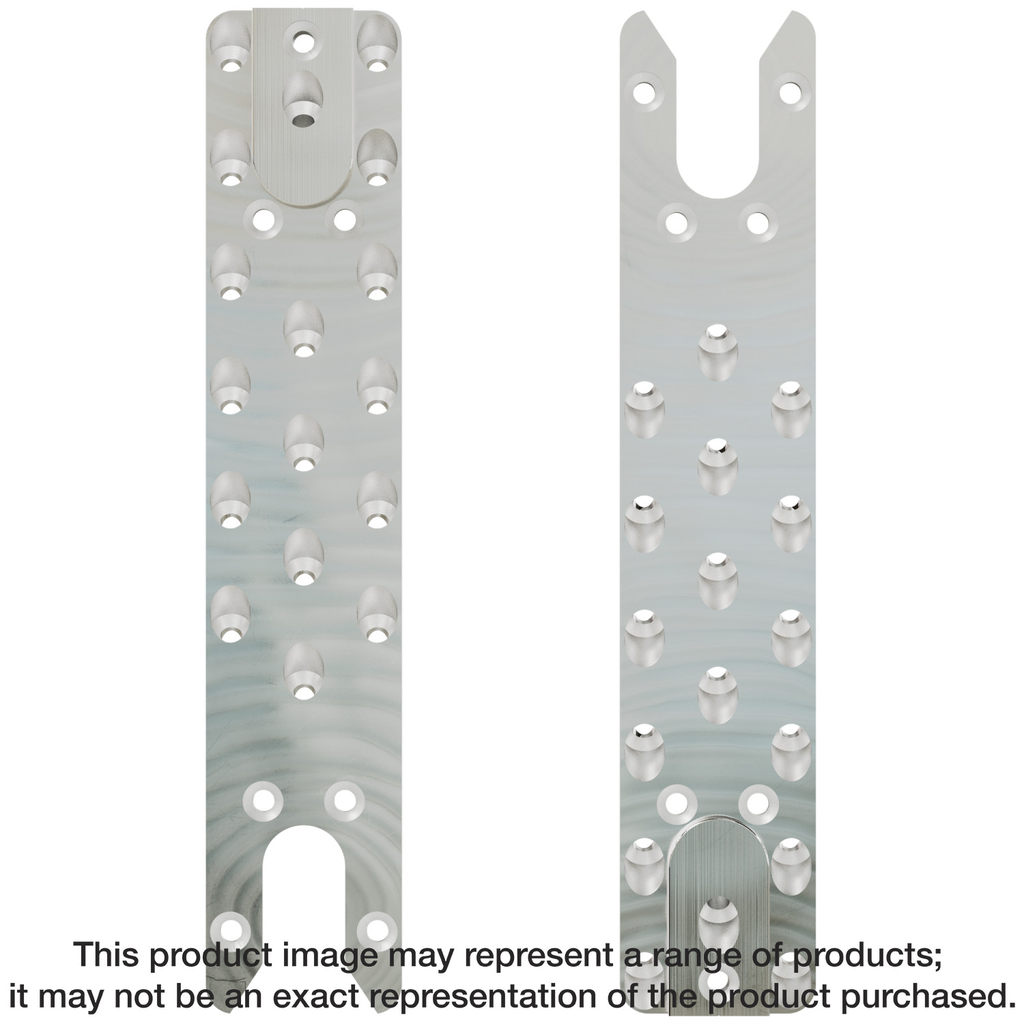

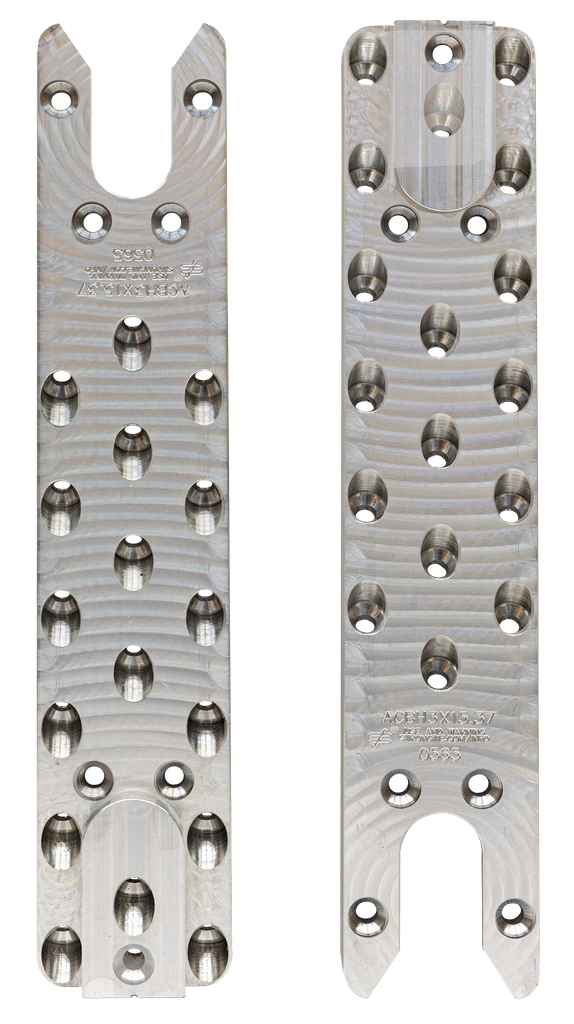

ACBH3X15.37 – 2 BACKPLATES/ 1 PAIR
$342.27
Engineered for strength and versatility, the ACBH™ Joist-to-Beam Concealed Hanger by Simpson Strong-Tie is a vital component for secure beam-to-beam and beam-to-column connections, particularly in seismic design categories A and B. Its distinctive design not only conceals the hardware for enhanced architectural aesthetics, but also boasts impressive one- and two-hour fire resistance ratings in accordance with ASTM E119, ensuring safety without compromising style. The included backplates facilitate easy installation and adjustment, with a beam length tolerance of +/- 1/16 inch on each end, allowing for flexibility to meet specific job site needs. Ideal for high-capacity applications, this hanger is a reliable choice for construction projects requiring exceptional performance and dependability.
Description
The ACBH concealed beam hanger is made for the rigors of mass timber construction and is machined from aluminum for a high-capacity design. With an allowable stress design load capacity of up to 20 kips, it is the strongest connector in the Simpson Strong-Tie line of concealed end-grain beam hangers. Its concealed connection allows for a wood-only aesthetic while offering one- and two-hour fire resistance ratings per ASTM E119. This hanger installs easily in the factory using fully threaded Strong-Drive® SDCF Timber-CF structural screws and offers generous onsite fit-up tolerance for smooth and easy beam installation. The ACBH is manufactured and stocked in the US for reliable availability.
Additional information
| Weight | 4.1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Height | 15-3/8 in |
| Width | 3 in |
