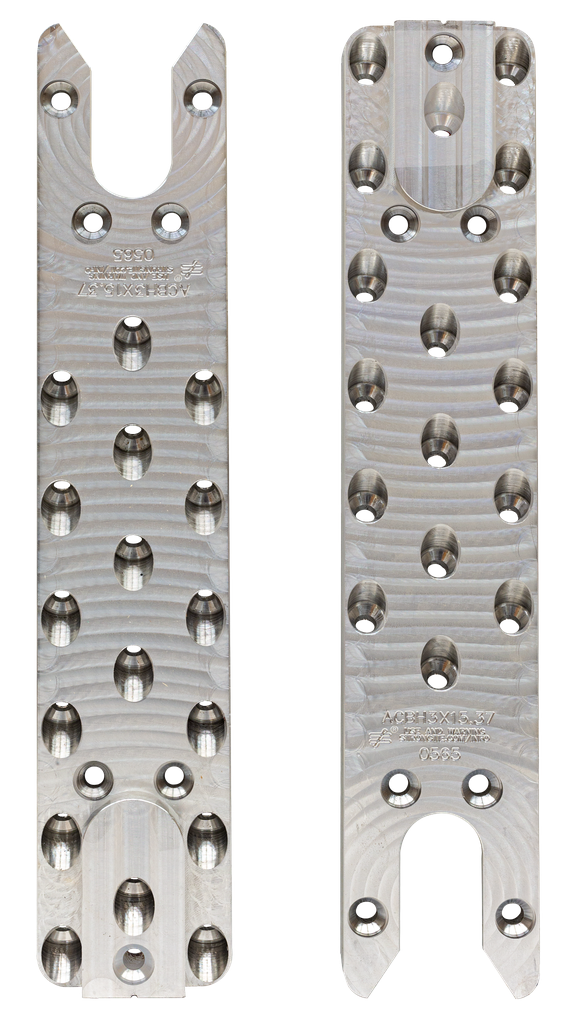

ACBH3X15.37 – 2 BACKPLATES w/ SDCF22614
$593.05
Engineered for strength and reliability, this concealed hanger from Simpson Strong-Tie is a vital component for establishing robust connections between joists and beams. The kit includes two high-capacity backplates and 48 Strong-Drive screws, providing everything needed for a secure assembly. Designed to meet specific jobsite requirements, it features multiple router options and ensures fire-rated performance with one- and two-hour ratings per ASTM E119, making it suitable for a range of structural applications. This product not only supports beam-to-beam connections in various seismic design categories but also maintains a clean aesthetic, keeping the focus on the overall architectural design while ensuring safety and durability.
Description
The ACBH concealed beam hanger is made for the rigors of mass timber construction and is machined from aluminum for a high-capacity design. With an allowable stress design load capacity of up to 20 kips, it is the strongest connector in the Simpson Strong-Tie line of concealed end-grain beam hangers. Its concealed connection allows for a wood-only aesthetic while offering one- and two-hour fire resistance ratings per ASTM E119. This hanger installs easily in the factory using fully threaded Strong-Drive® SDCF Timber-CF structural screws and offers generous onsite fit-up tolerance for smooth and easy beam installation. The ACBH is manufactured and stocked in the US for reliable availability.
Additional information
| Weight | 8.3 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Width | 3 in |
| Depth | 3 in |
