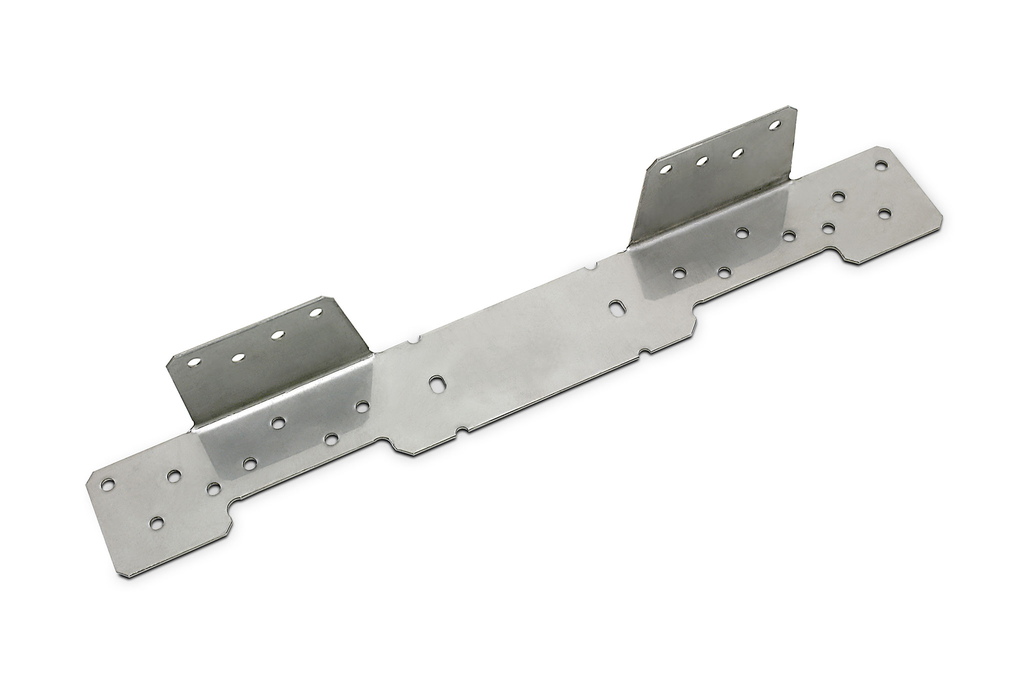

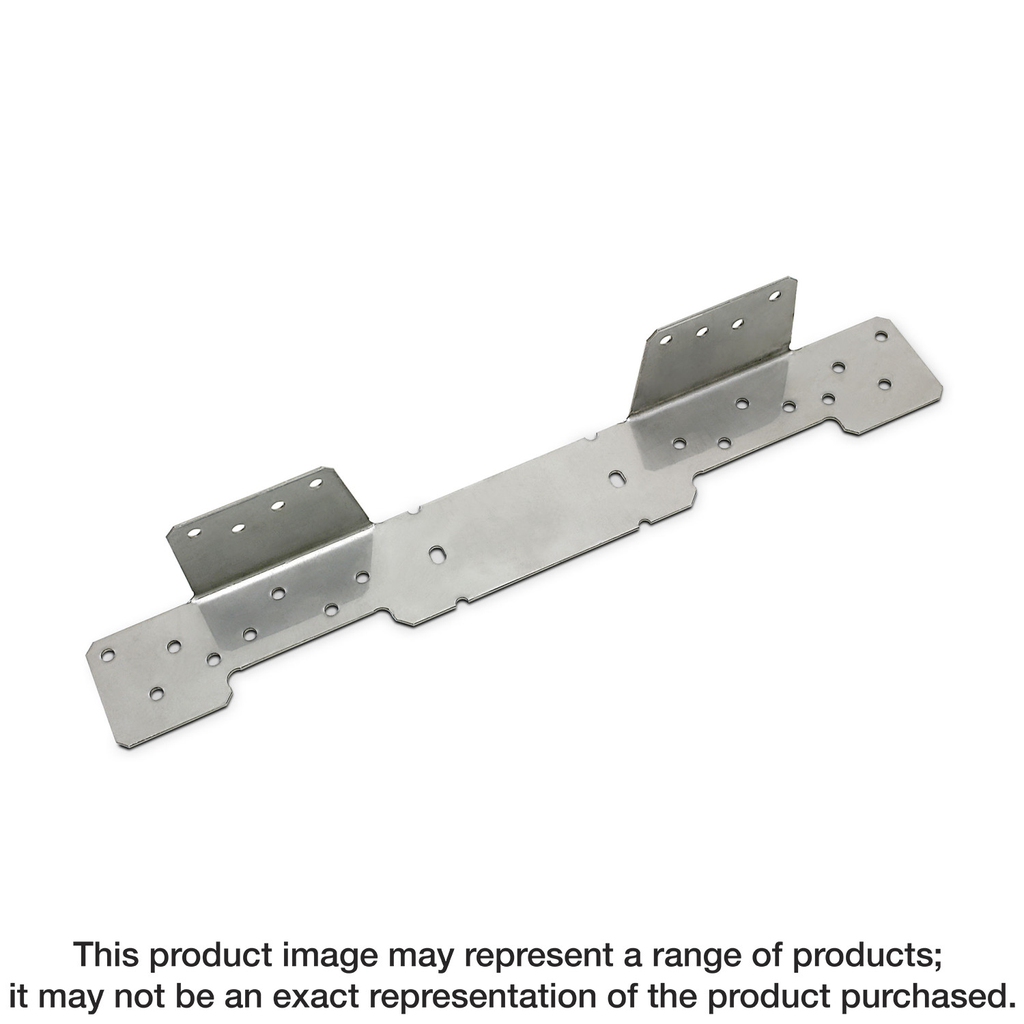

ADJUSTABLE STAIR-STRINGER CONNECTOR SS
$36.56
Engineered for versatility and resilience, this adjustable stringer connector from Simpson Strong-Tie is crafted from 18-gauge stainless steel, ensuring exceptional corrosion resistance in even the most demanding environments. Its unique design allows for easy installation, whether flush with the top of the carrying member or positioned lower on the face, making it suitable for a variety of applications on nominal 2×10 or 2×12 header and rim boards. Additionally, its interchangeable configuration accommodates both left and right applications, effectively replacing the need for extra framing and toe-nailing, streamlining your construction process while maintaining structural integrity.
Description
The Simpson Strong-Tie® LSC adjustable stair-stringer connector offers a versatile, concealed connection between the stair stringer and the carrying header or rim joist while replacing costly framing. Field slopeable to all common stair stringer pitches, the LSC connector is suitable for either solid or notched stringers. The LSC replaces additional framing and toe-nailing and is interchangeable for left or right applications.
Additional information
| Weight | 0.27 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.546 in |
| Material | 18-gauge Stainless Steel |
