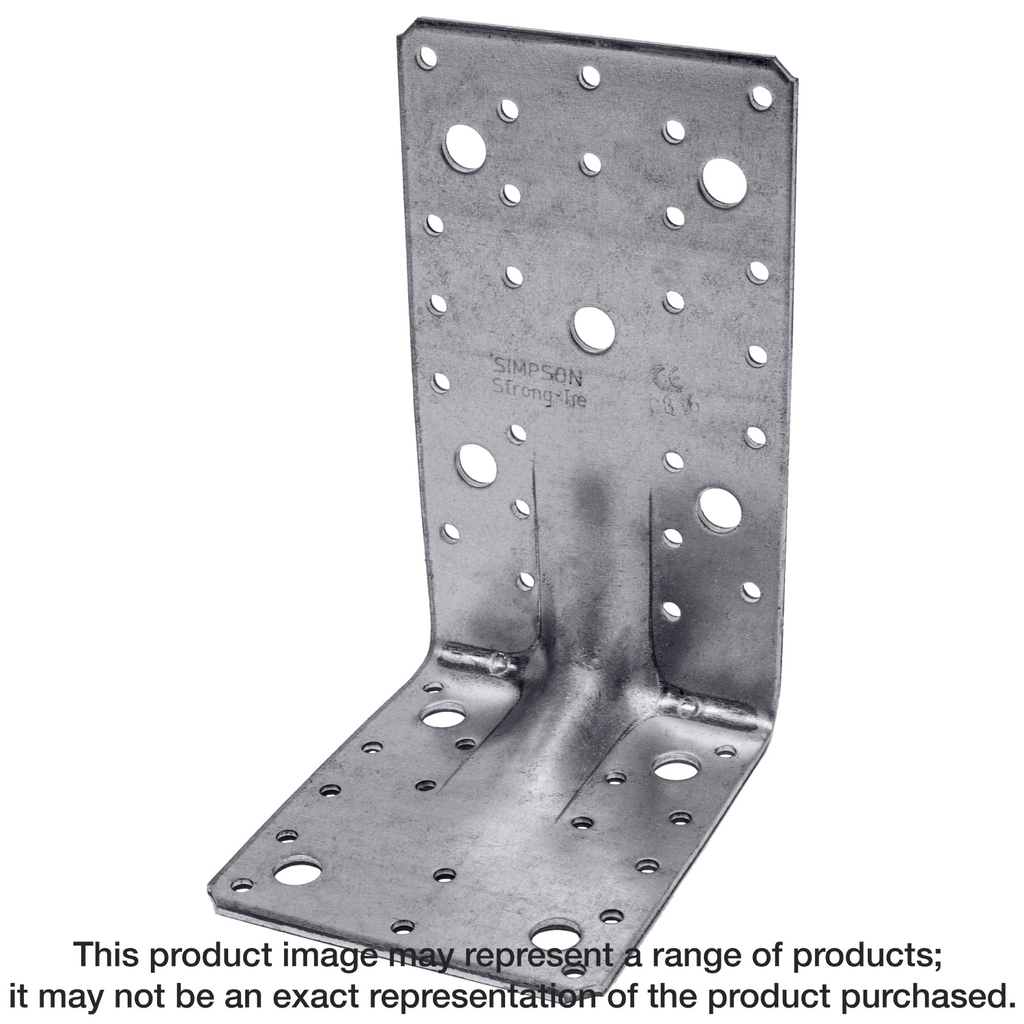

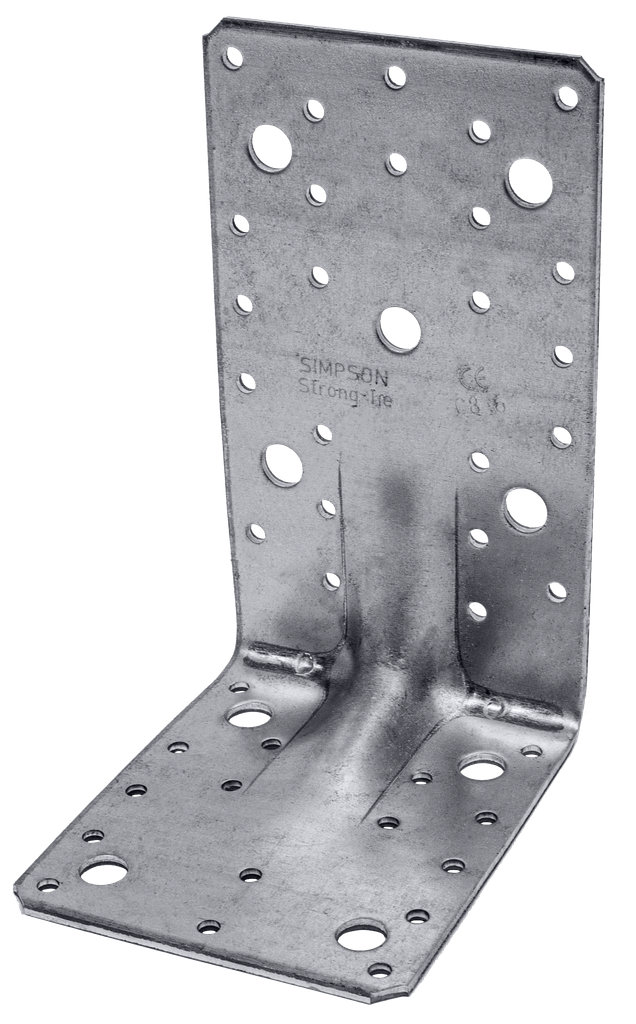

ANGLE REINF 170/110/95/3
$8.50
Offering an exceptional solution for structural support, this angle bracket is specifically designed for cross-laminated timber applications. Constructed from heavy 11-gauge steel, it provides superior load capacity while ensuring reliable anchorage to concrete. Galvanized for enhanced corrosion resistance, it is built to withstand the rigors of various environments, maintaining structural integrity for years to come. Additionally, this bracket is load-rated for use with up to a 2-inch base-of-wall gap, making it a versatile choice for both residential and commercial projects.
Description
Simpson Strong-Tie® E angle brackets are used to connect cross-laminated timber (CLT) wall panels to concrete slabs. A wide variety of fastener and anchor options are available depending on the required loads and application. The E20/3 angle bracket has been load-rated with up to a 2-inch gap between the bottom of the CLT wall and the top of concrete slab. This gap allows the wall to be separated with a pressure-treated sill plate, concrete curb, grout pad, or other specified material.
Additional information
| Weight | 1.285 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Height | 6-3/4 in |
| Width | 3-3/4 in |
