Brick Veneer Ledger Conn. ZMAX Kit 1pak
$50.84
Engineered for versatility and performance, the galvanized ledger connector from Simpson Strong-Tie is an essential solution for supporting brick veneer in various construction scenarios. Designed to minimize penetrations through existing exterior water barriers, this connector is capable of accommodating a range of air gaps and brick sizes, making it ideal for both new builds and retrofit applications. Constructed from robust 12-gauge steel, it features ZMAX galvanization for enhanced corrosion resistance, ensuring durability in exposed environments. Additionally, its design allows for drilling through mortar joints, facilitating easy installation and compliance with building department inspections. With this connector, you can confidently tackle your brick veneer projects while adhering to safety and structural integrity standards.
Description

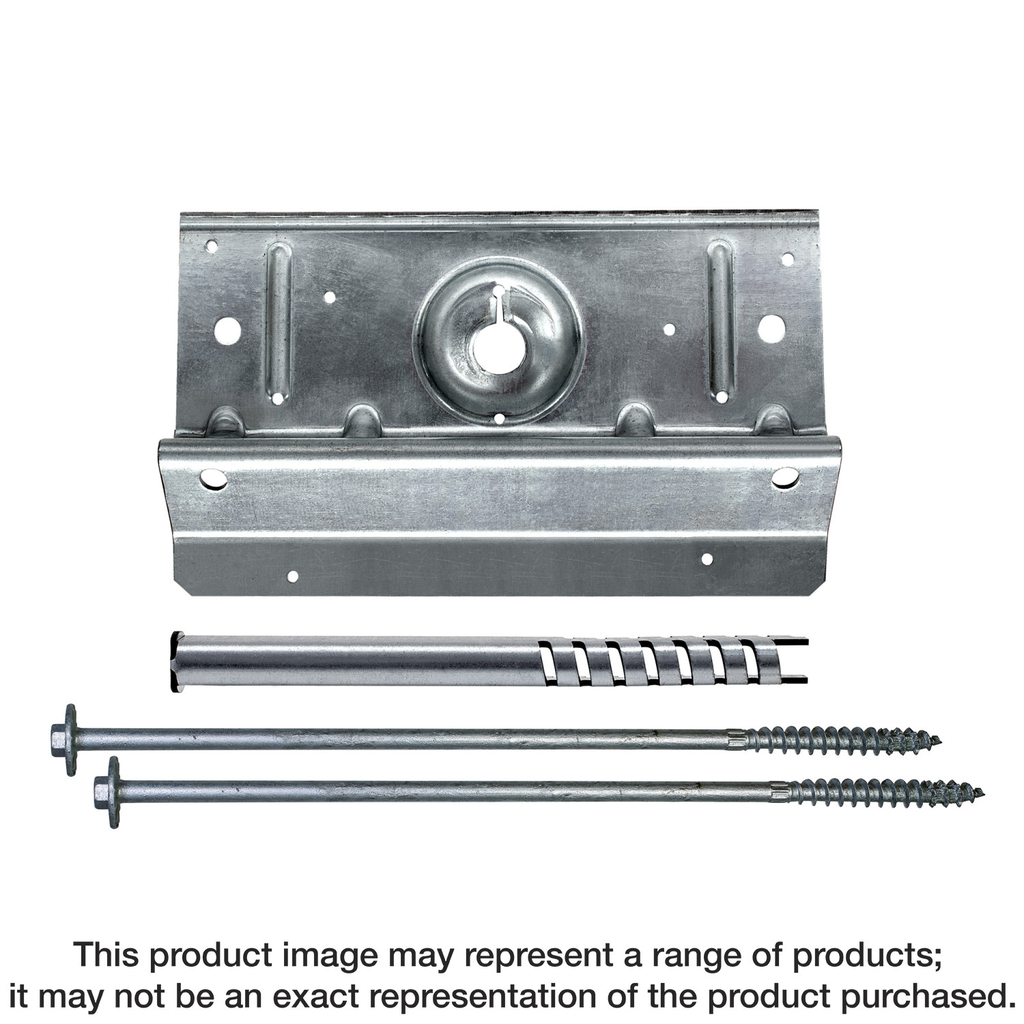

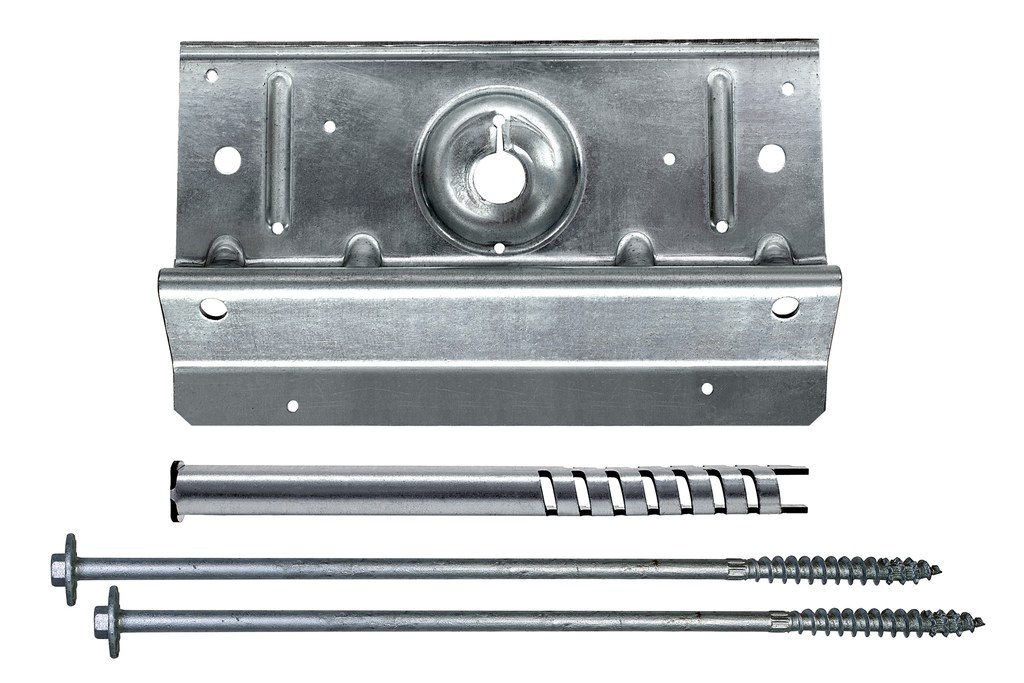

The BVLZ brick veneer ledger connector provides a code-compliant, tested solution for safely adding a deck to an existing house with brick veneer exterior. It attaches a wood ledger to the framing through the veneer. This connector kit provides a viable alternative to building a free-standing deck, and it installs without having to remove or replace large sections of brick veneer. The BVLZ brick veneer ledger connector kit includes a steel ledger plate, a compression strut, installation guide, two 14-in. Strong-Drive® SDWH Timber-Hex HDG tension screws and six Strong-Drive SD Connector shear screws. It’s designed so the two tension screws pass through the mortar into the structural framing, and the compression strut transfers compression forces from the ledger plate to the rim joist. The system enables the ledger to hang freely without bearing on the brick veneer.
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 9.50 in |
| Material | 12-gauge steel |
