Brick Veneer Ledger Conn. ZMAX Kit 4pak
$174.29
The Simpson Strong-Tie BVLZ-KT4 BLVZ™ ZMAX® Galvanized Brick Veneer Ledger Connector is engineered for versatility and durability in brick veneer applications. Made from robust 12-gauge steel, this connector accommodates a variety of air gaps and brick sizes, ensuring a secure attachment point while minimizing penetrations through existing water barriers. Enhanced with ZMAX galvanization, it offers superior corrosion resistance, making it suitable for exterior and treated-wood settings. The design not only facilitates compliance with building department regulations during retrofit projects but also allows for easy installation, including drilling through mortar joints.
Description

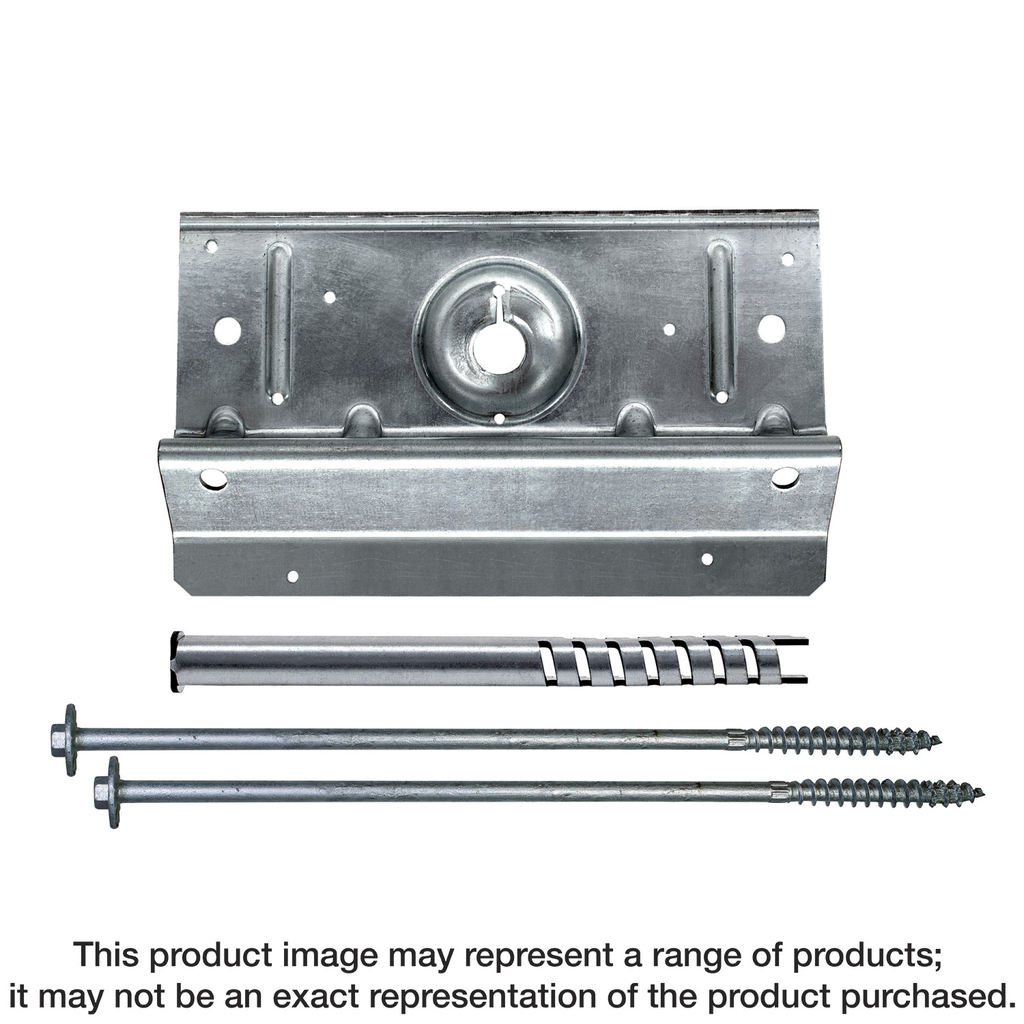

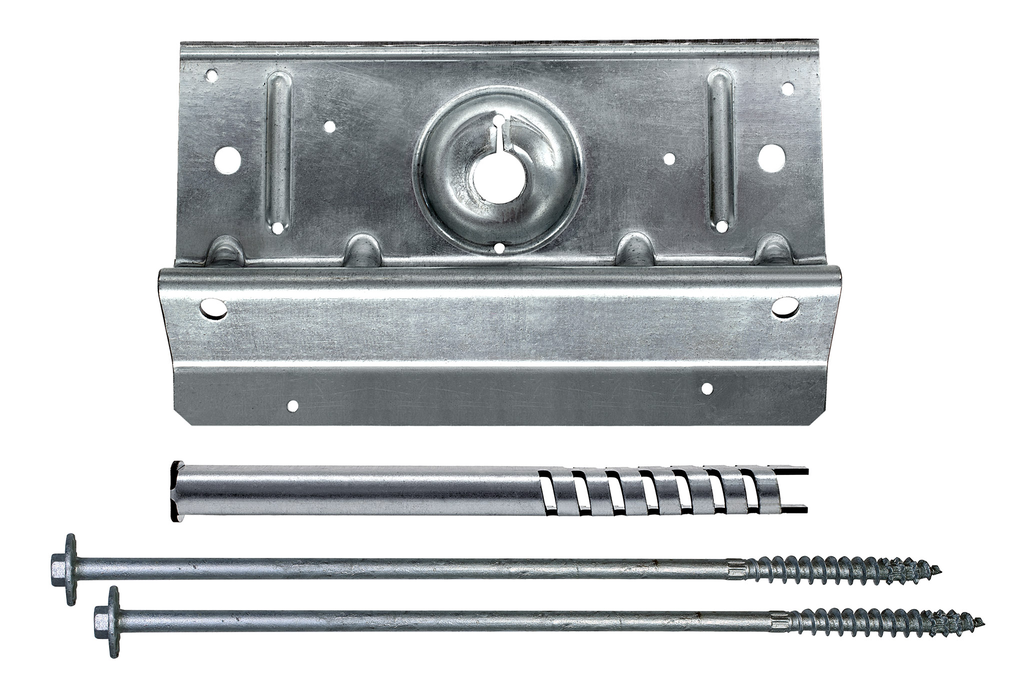

The BVLZ brick veneer ledger connector provides a code-compliant, tested solution for safely adding a deck to an existing house with brick veneer exterior. It attaches a wood ledger to the framing through the veneer. This connector kit provides a viable alternative to building a free-standing deck, and it installs without having to remove or replace large sections of brick veneer. Each BVLZ brick veneer ledger connector kit includes a steel ledger plate, a compression strut, installation guide, two 14-in. Strong-Drive® SDWH Timber-Hex HDG tension screws and six Strong-Drive SD Connector shear screws. It’s designed so the two tension screws pass through the mortar into the structural framing, and the compression strut transfers compression forces from the ledger plate to the rim joist. The system enables the ledger to hang freely without bearing on the brick veneer.
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 9.50 in |
| Material | 12-gauge steel |
