BRIDGING
$0.54

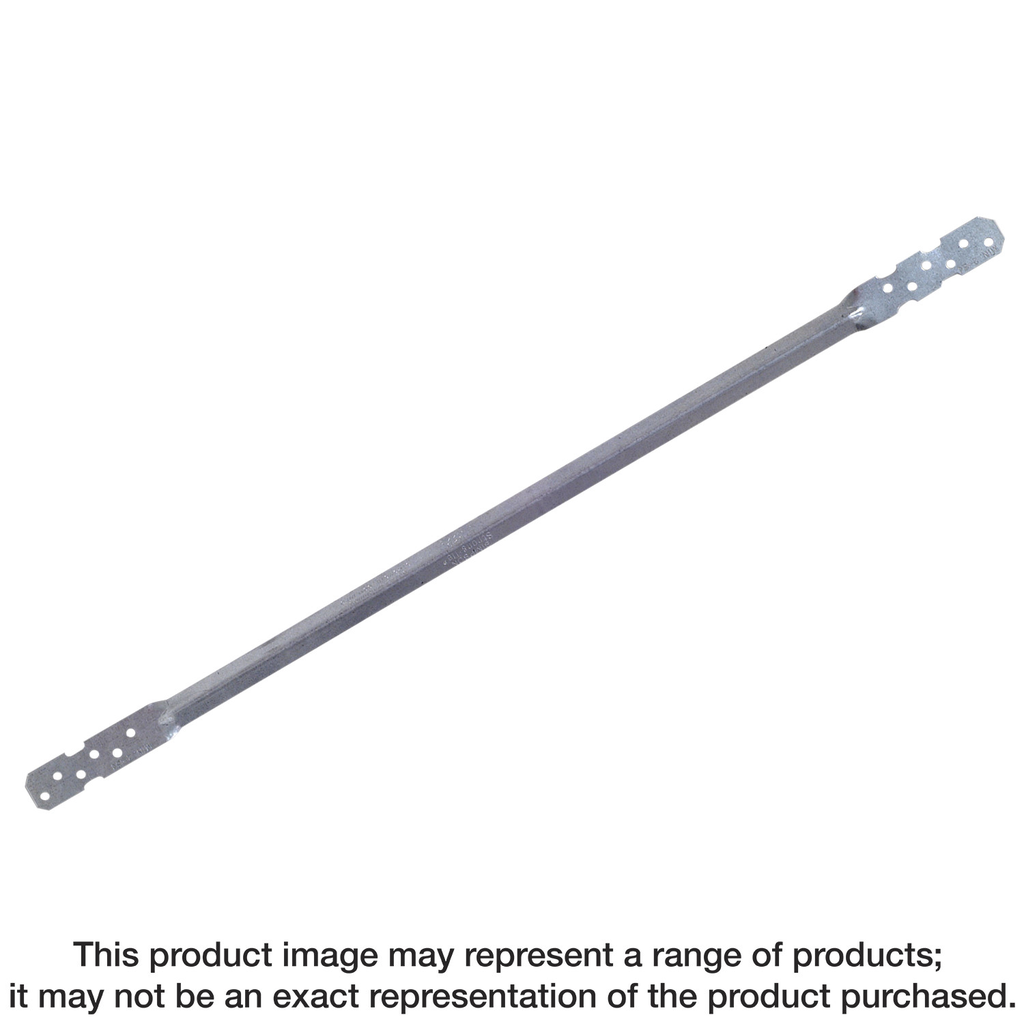

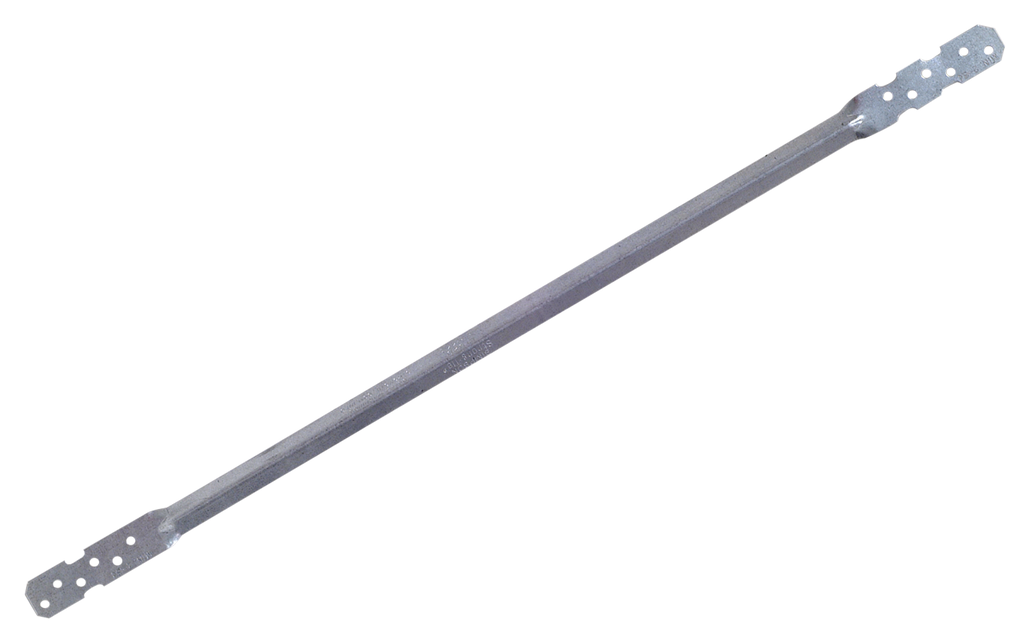

Engineered for optimal structural integrity, the galvanized tension bridging from Simpson Strong-Tie significantly enhances the durability of your projects. This 19-1/2 inch component, crafted from sturdy 22-gauge steel and treated with a G90 galvanization process, offers exceptional corrosion resistance that ensures long-lasting performance. Its unique staggered nail pattern is tailored to accommodate both 2×8 and 2×10 joists, allowing for maximum nailing flexibility while maintaining cross pairs in tension. By preventing joist rotation, this bridging solution plays a crucial role in preserving the continuity of the floor system, making it an essential choice for builders seeking reliable support in their construction projects.
Description
The Simpson Strong-Tie® LTB provides bracing between floor joists as a critical contribution to the structural strength of a floor. Installed in pairs, this light tension-type bridging keeps joists in place and prevents them from rotating while distributing loads over more than one joist. The LTB features a staggered nail pattern to accommodate 2×8 and 2×10 joists and is designed for maximum nailing flexibility, with the option to use as few as two nail holes on each end, and as many as six.
Additional information
| Weight | 0.13 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 19-1/2 in |
| Depth | 19.50 in |
