COLUMN CAP
$96.64

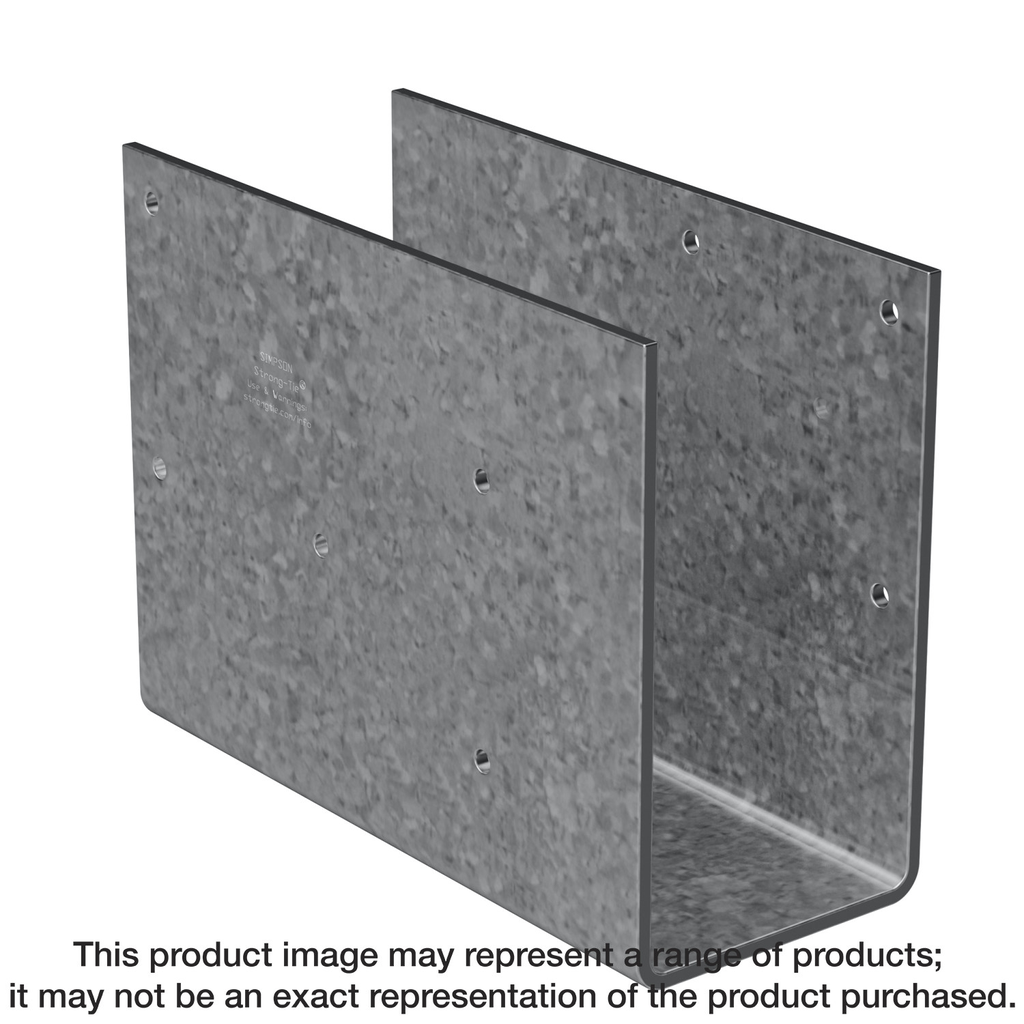

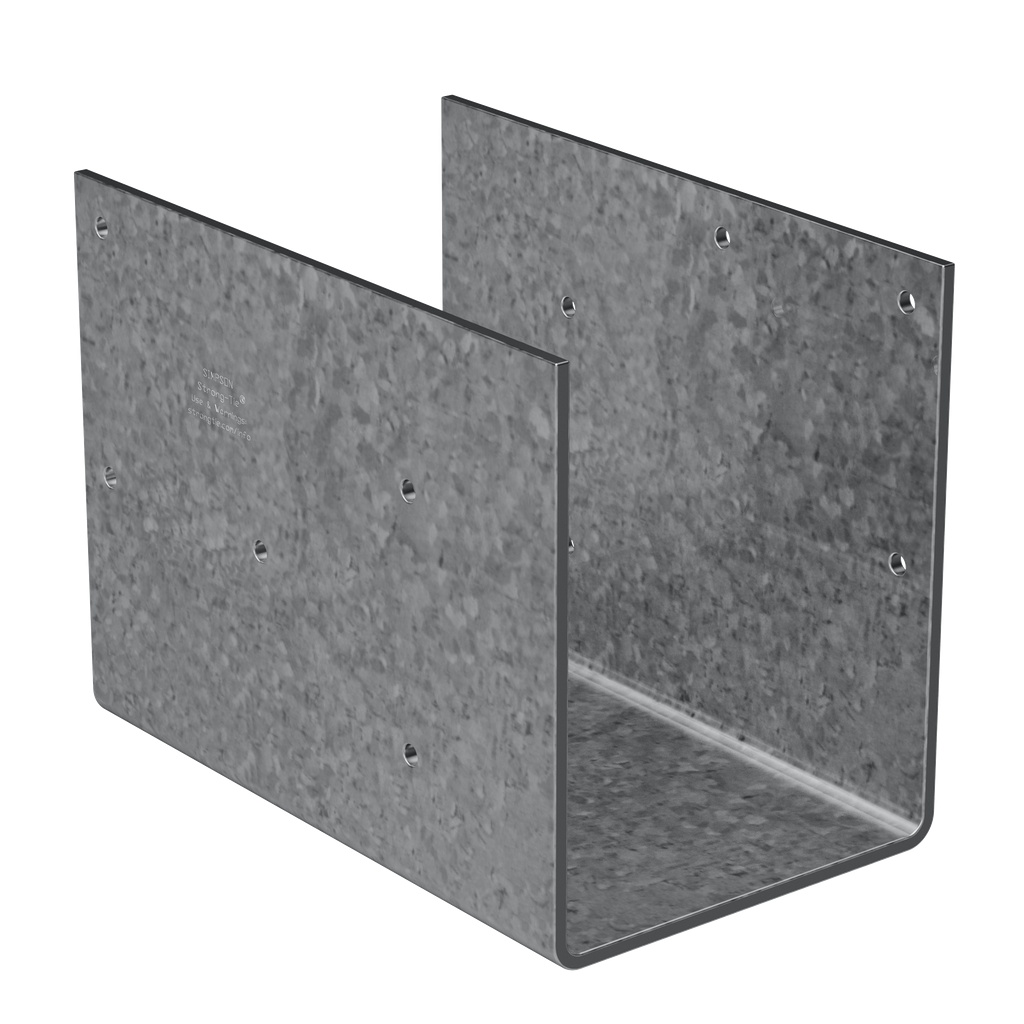

Engineered for strength and durability, the CCOS Column Cap from Simpson Strong-Tie offers a robust solution for supporting triple 2×10 or 2×12 beams. This cap is constructed from heavy-duty 7-gauge steel and features a galvanized finish to protect against corrosion, ensuring longevity even in demanding environments. Designed to provide an adequate bearing length for larger girder reactions, it also includes self-tapping screws to streamline installation. Whether used with solid sawn lumber or engineered wood products, this versatile column cap meets the structural needs of a variety of construction projects, delivering confidence in its performance while adhering to safety standards.
Description
The Simpson Strong-Tie® CCOS steel-column cap provides a high-capacity connection for column-to-beam combinations. This design without the column straps was created specifically for field welding to a steel column. For faster installation, the CCOS requires that self-tapping screws (included) be used to attach the column cap to the column cap plate.
Additional information
| Weight | 6.78 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 4-5/8 in. |
| Beam Width | Triple 2×10, triple 2×12 |
