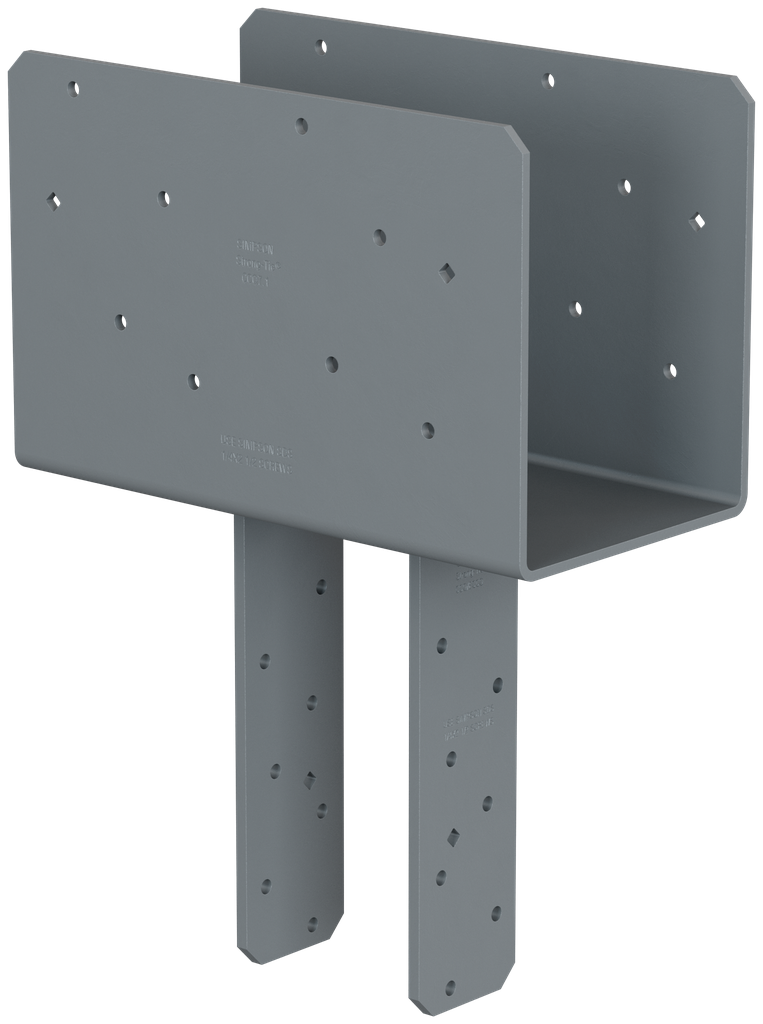

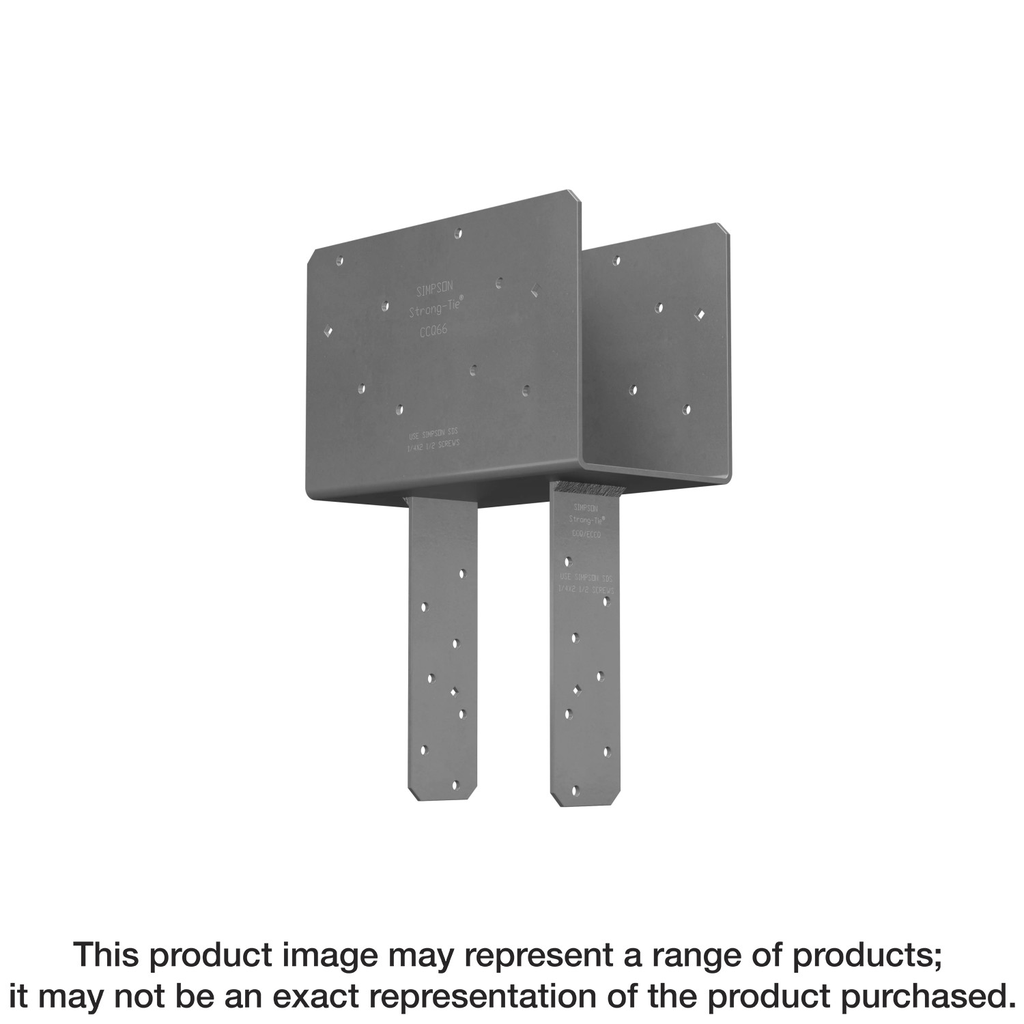

COLUMN CAP W/SCREWS
$216.69
Engineered for exceptional strength and reliability, the CCQ™ Column Cap is crafted from robust 3-gauge steel, ensuring superior performance in demanding applications. Designed to accommodate 7-inch beams and 4x posts, this cap features specially designed Strong-Drive® SDS screws that provide a streamlined profile compared to traditional through bolts, enhancing both aesthetics and ease of installation. With uplift loads tailored to withstand challenging conditions such as earthquakes or high winds, this product embraces safety without compromise. Certified welds lend confidence to structural integrity while the distinctive Simpson Strong-Tie gray paint finish contributes to durability against the elements. For added convenience, diamond holes facilitate temporary fastening, making it a versatile choice for your construction needs.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 19.67 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Post Size | 4x |
| Beam Width | 7 in. |
