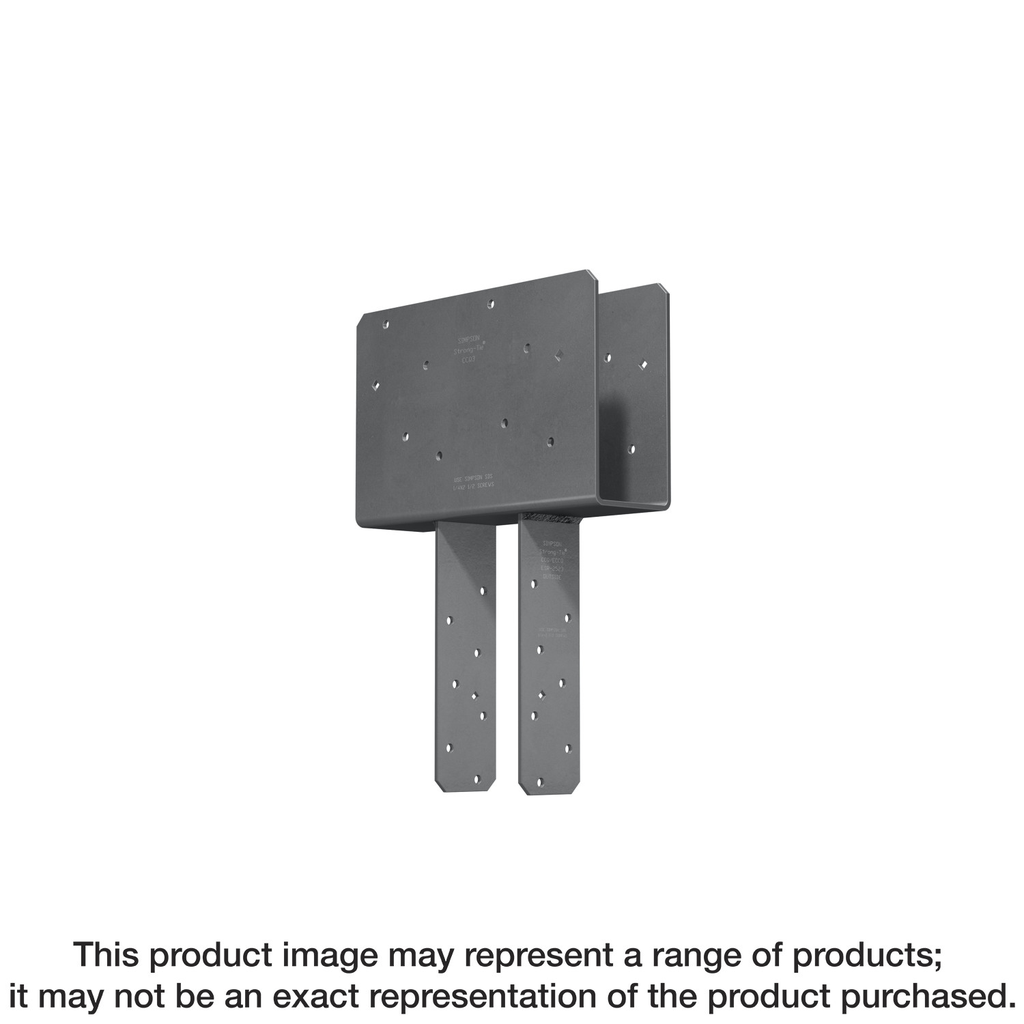

COLUMN CAP W/SCREWS
$173.41
Constructed from robust 3-gauge steel, this column cap supports a nominal post size of 6 inches and is engineered specifically for use with 7-inch beams. The design features diamond holes that allow for temporary fastening, ensuring a secure installation process. Enhanced for use in environments subject to high uplift loads, such as during earthquakes or high winds, it incorporates certified welds to provide confidence in its strength and loading capabilities. For added convenience, the included Strong-Drive® SDS screws offer a sleek, lower profile compared to traditional through bolts, contributing to both aesthetic and functional benefits in your structural projects.
Description

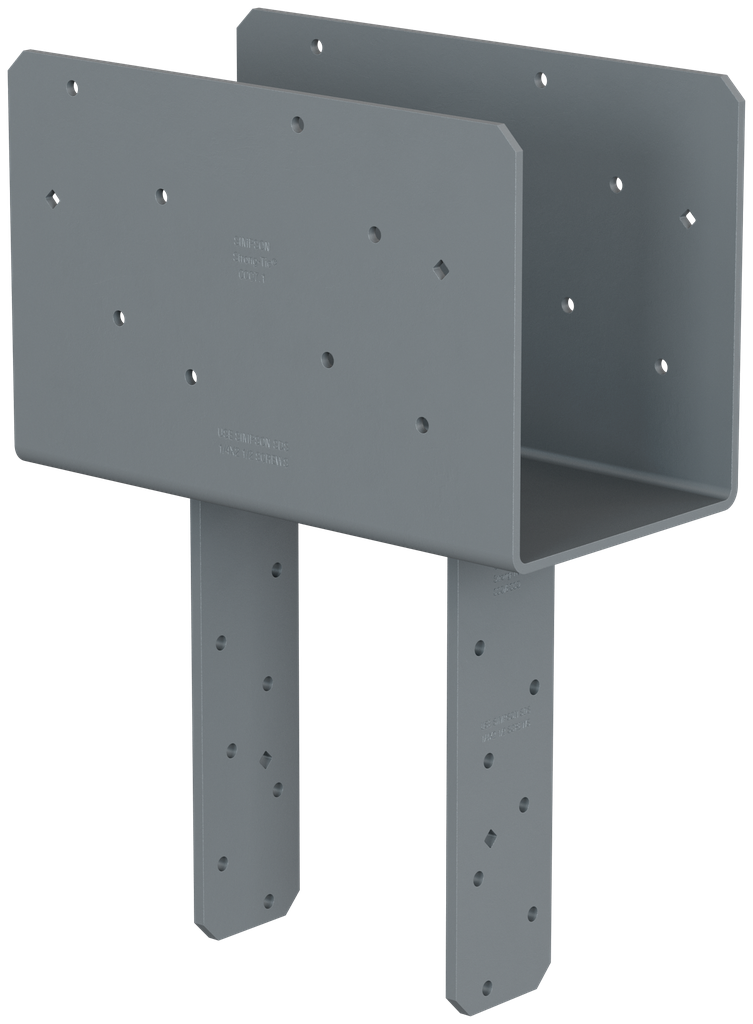

The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 19.67 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Post Size | 6 in |
| Beam Width | 7 in |
