CONCEALED BEAM TIE 14IN 4.75PIN ZMAX
$54.56

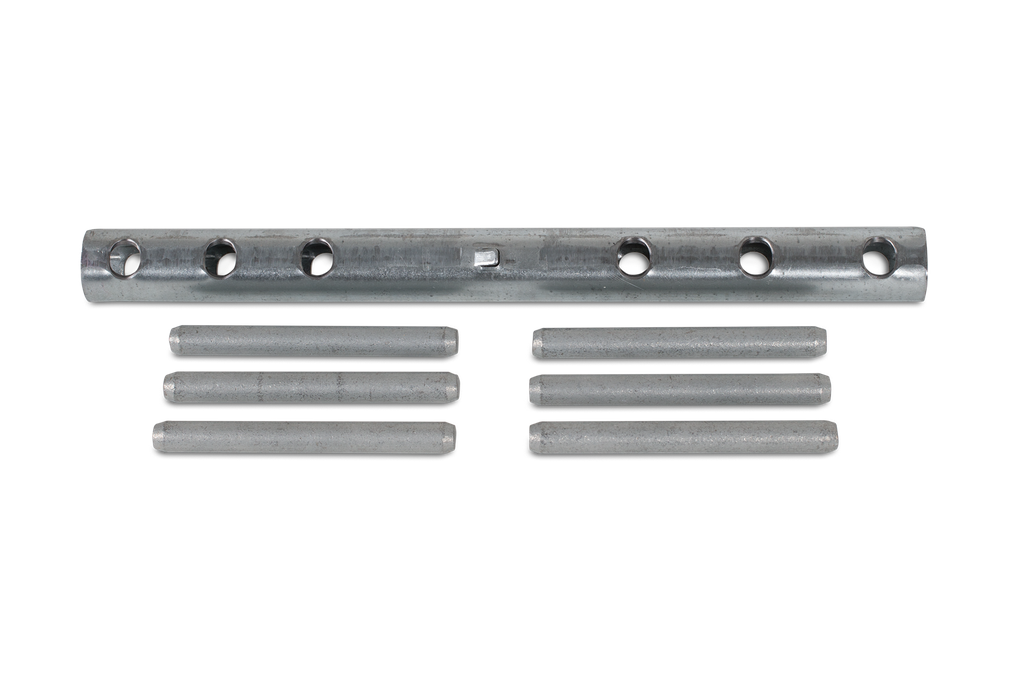

Engineered for robust structural connections, the Simpson Strong-Tie CBT4Z-KT Concealed Beam Tie is specifically sized to accommodate a nominal 6×6 post, ensuring a secure fit for your building projects. Crafted from durable 12-gauge steel with ZMAX® galvanization, this beam tie provides exceptional corrosion resistance, making it ideal for both exterior use and treated-wood applications. The design incorporates helpful features such as locator tabs for precise dimensional layout and orientation markings to guide proper installation. Additionally, the included 1/2-inch diameter drift dowels are mechanically galvanized, enhancing strength and longevity while meeting ASTM standards. This product not only simplifies the installation process but also ensures your structure is built to withstand the elements.
Description

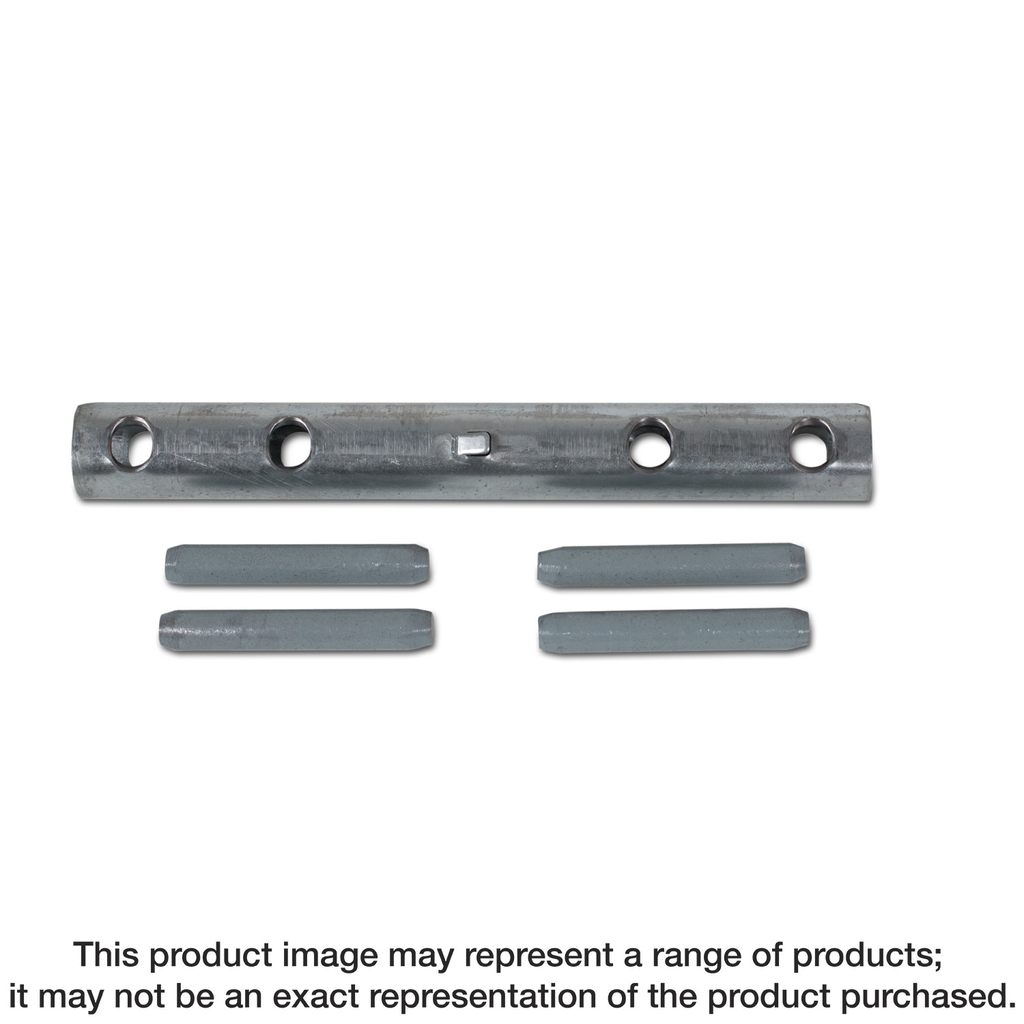

The Simpson Strong-Tie® CBTZ™ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.
Additional information
| Weight | 3.1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Dimensions | 1-1/4 in. x 14 in. |
| Depth | 1.40625 in |
