CONCEALED JOIST TIE W/LONG PINS – ZMAX
$65.64

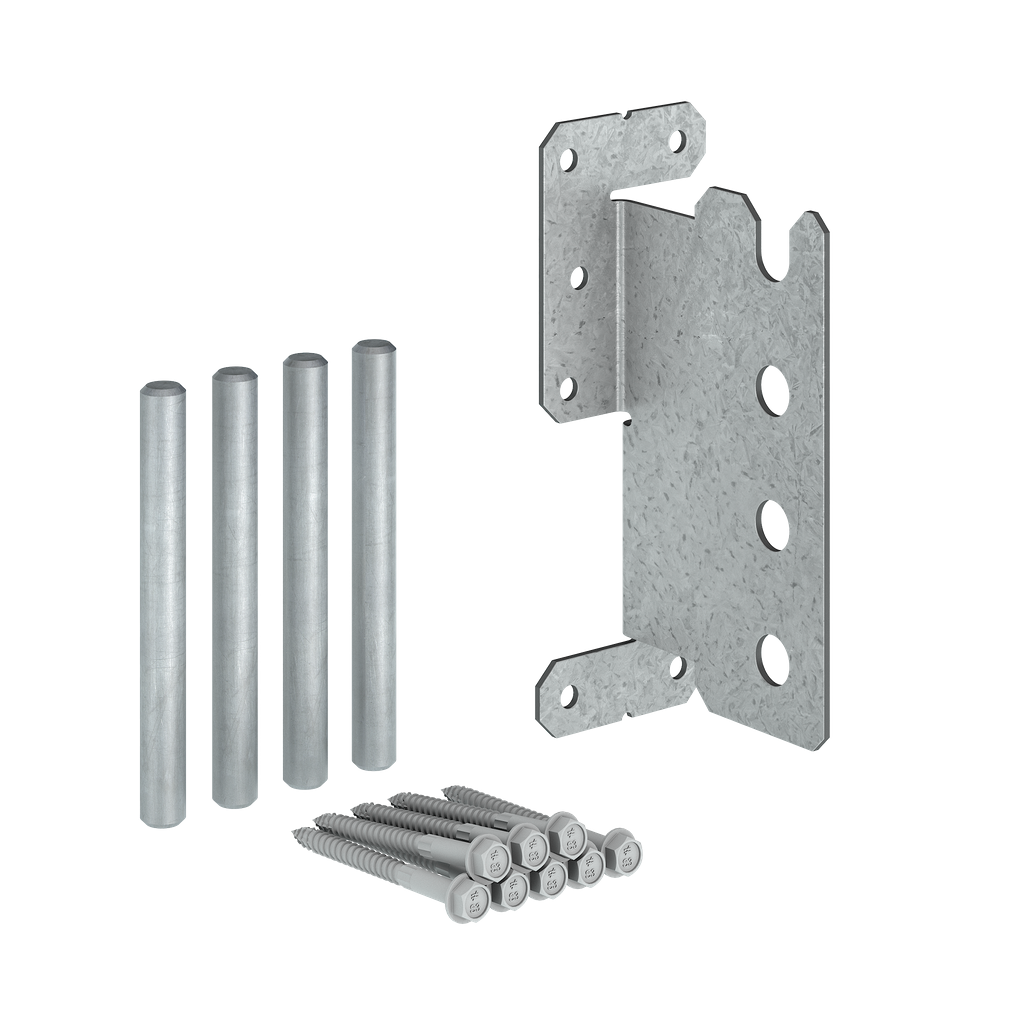

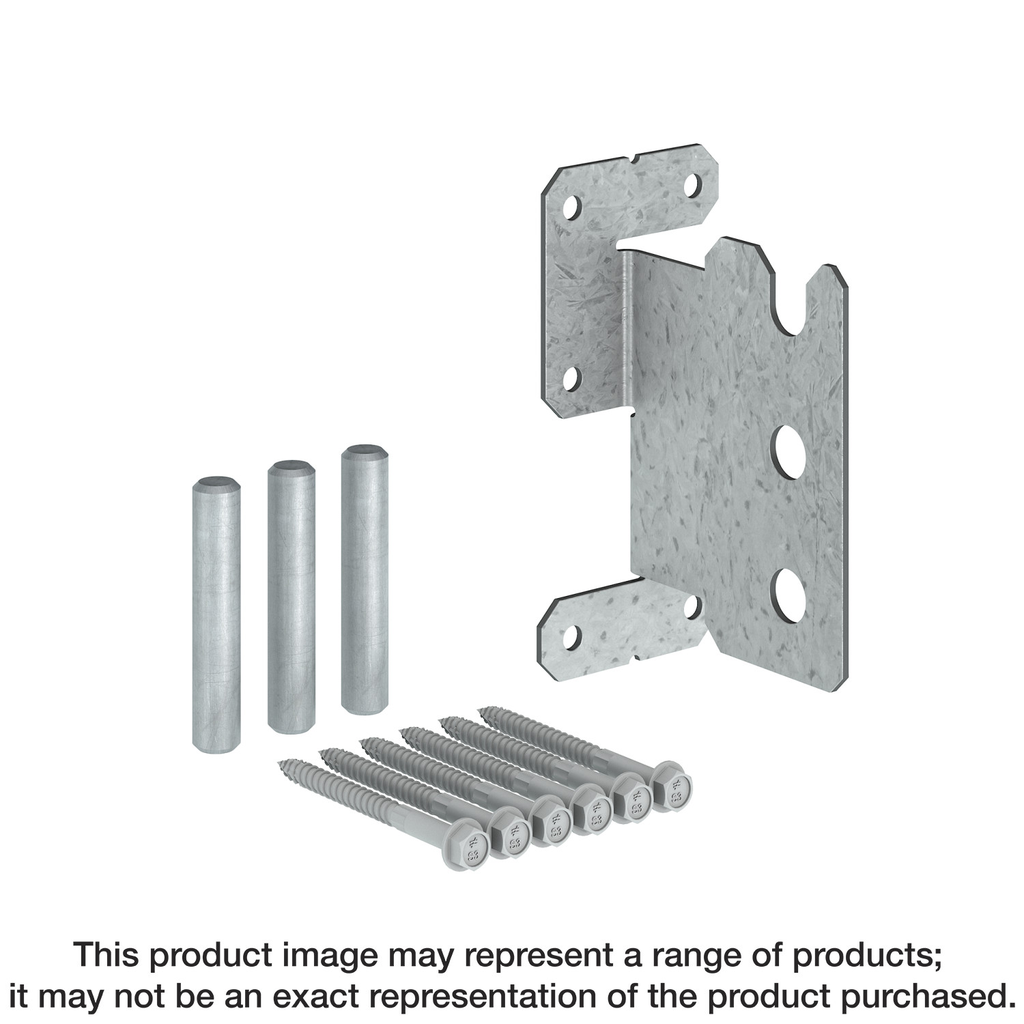

The CJT4ZL CJTZ® concealed joist tie from Simpson Strong-Tie combines robust construction with advanced corrosion resistance, making it a reliable choice for a variety of building applications. Crafted from 12-gauge steel and finished with ZMAX® galvanization, this joist tie is designed to withstand the rigors of exterior and treated-wood projects. It features a long dowel measuring 1/2 inch by 4-3/4 inches, suitable for use with glulam beams or lumber widths of 5-1/8 inches or greater, ensuring a secure and stable connection in your construction. For optimal performance, it is crucial to install this product only in glulam or well-dried lumber, allowing it to maintain its integrity while providing solid support.
Description
The CJTZ® is a concealed connector. It can be installed three ways: with no routing of header/post or beam, a routed header/post or a routed beam. It is part of a concealed connector system that includes the CPTZ and CBTZ.
Additional information
| Weight | 2.6 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 2.46875 in |
| Material | 12-gauge steel |
