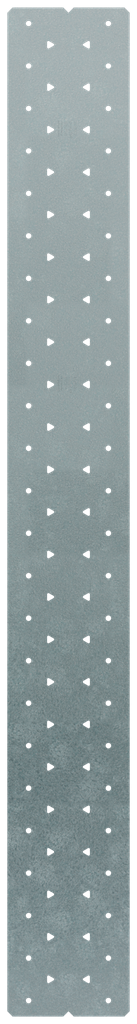

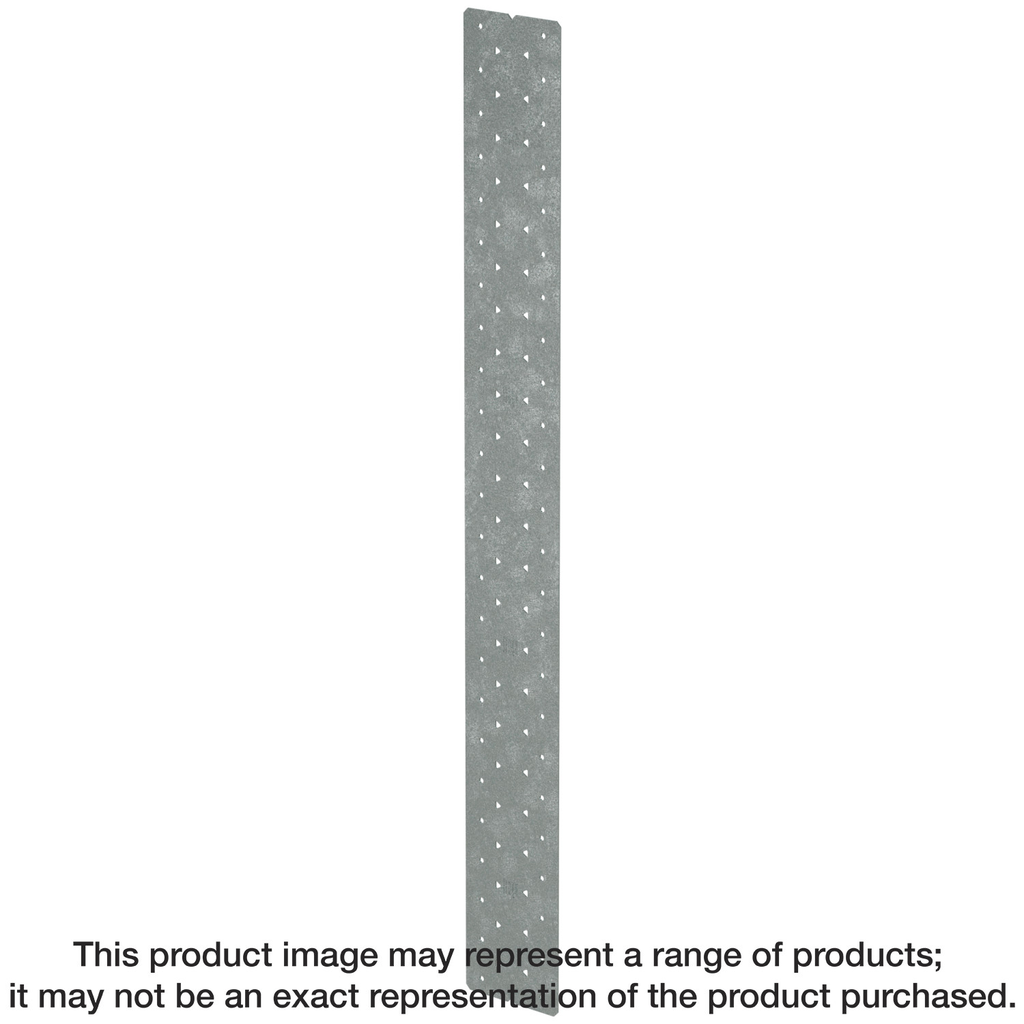

DIAPHRAGM TENSION STRAP 5.75X48X14 GA
$31.36
Engineered for exceptional load-bearing capacity and built from durable 14-gauge steel, this galvanized diaphragm chord strap tie is a robust solution for structural applications. Its galvanized finish provides enhanced corrosion resistance, ensuring longevity in demanding environments. Designed to streamline the installation process, the pre-punched screw holes facilitate quick fastening, while the option to overlap straps allows for versatility in reducing the physical footprint when transferring high loads across panel joints. This innovative approach not only simplifies construction but also eliminates the need for costly, custom-fabricated steel plates, making it an efficient choice for builders and contractors.
Description
Simpson Strong-Tie tested and load-rated tension straps and fasteners are designed to minimize cost and maximize speed and precision — while providing the strength, versatility and reliability you depend on. The MDCST48 is a 14-gauge high-capacity strap specifically designed to carry tension across a CLT floor or wall panel joint. The MDCST48 installs with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws.
Additional information
| Weight | 5.65 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 47-1/2 in |
| Width | 5-3/4 in |
