DRYWALL TOP FLANGE HANGER W/SDS SCREWS
$61.09

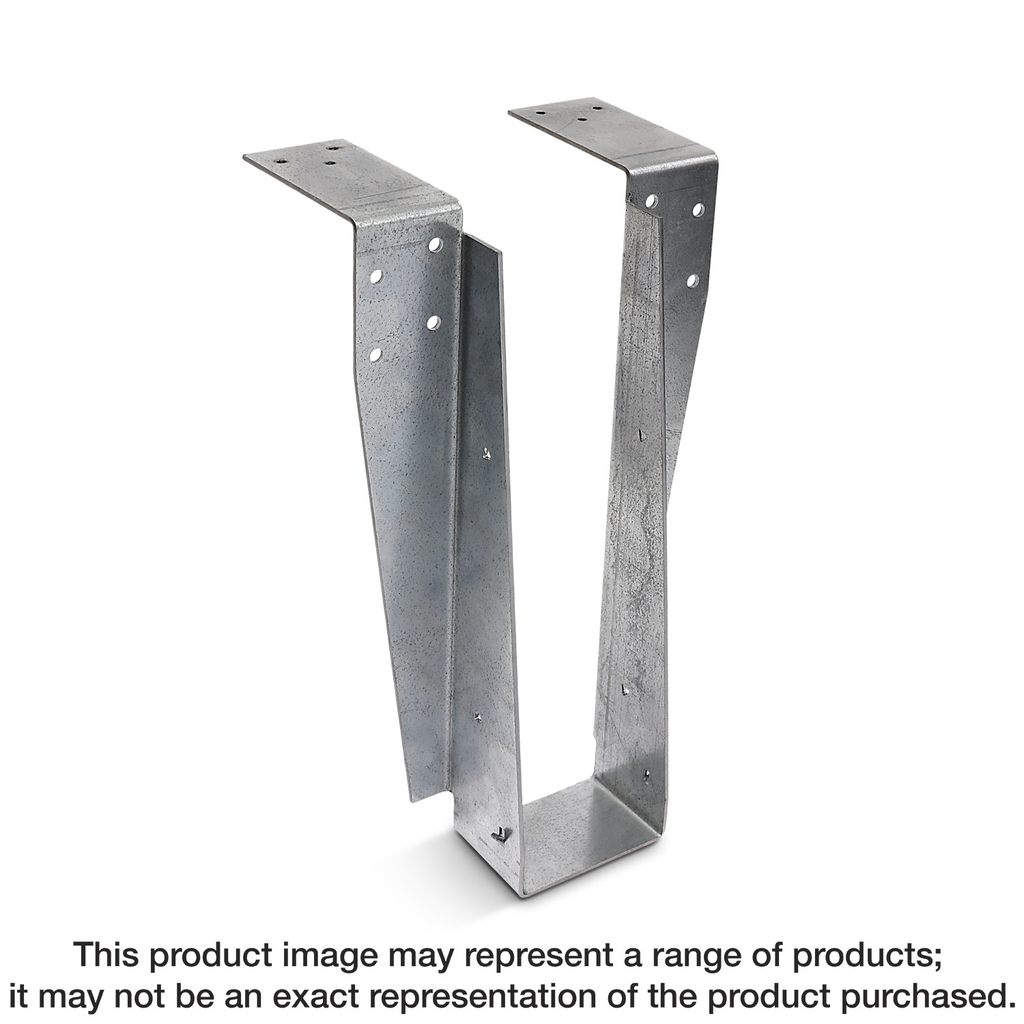

Crafted for robust structural integrity, the Simpson Strong-Tie DHU3.56/18TF is a top-flange drywall hanger designed to support 3-1/2 inch by 18 inch engineered wood applications. Made from durable 12-gauge steel and finished with a G90 galvanization process, this hanger offers exceptional corrosion resistance, making it suitable for various construction environments. Its design is code-listed for structural use under ICC-ES ESR-2552, ensuring compliance and reliability in fire wall assembly without compromising on safety—thorough testing confirms that it maintains a two-hour fire wall assembly rating even when used on both sides of 2×4 or 2×6 walls. Additionally, this hanger is versatile, available to order in skewed configurations up to 45 degrees.
Description
Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHUTF top-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.
Additional information
| Weight | 4.35 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 3-9/16 in. |
| Designed For | 3-1/2 in x 18 in Engineered Wood |
