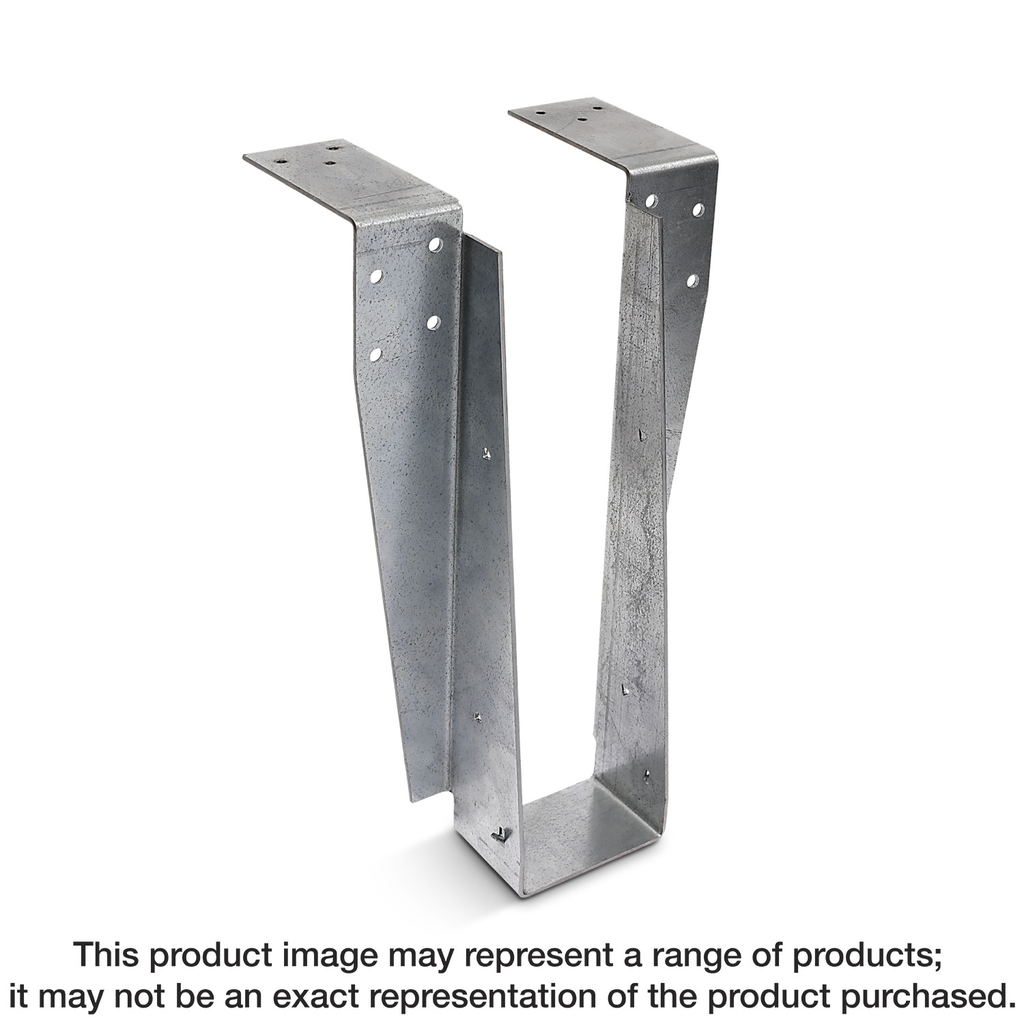

DRYWALL TOP FLANGE HANGER W/SDS SCREWS
$51.51
The Simpson Strong-Tie DHU2.37/11.88TF Top-Flange Drywall Hanger is expertly designed for securing engineered wood dimensions of 2-5/16 inches by 11-7/8 inches, providing reliable support and stability for your construction projects. Constructed from durable 12-gauge steel and galvanized for corrosion resistance (G90), this hanger offers exceptional performance in demanding environments. Its design has undergone rigorous testing in accordance with ASTM E814, achieving impressive F (flame) and T (temperature) ratings, making it suitable for installation on either side of a wall without compromising fire wall assembly ratings. With the ability to accommodate installations in both 2×4 and 2×6 walls, and an option for skewed configurations up to 45 degrees, you can trust the DHUTF hangers to meet diverse structural needs while adhering to regulatory standards as verified by ICC-ES ESR-2552.
Description
Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHUTF top-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.
Additional information
| Weight | 3.06 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 2-3/8 in. width x 7.073 in. depth x 11-13/16 in. height |
| Material | 12-gauge steel |
