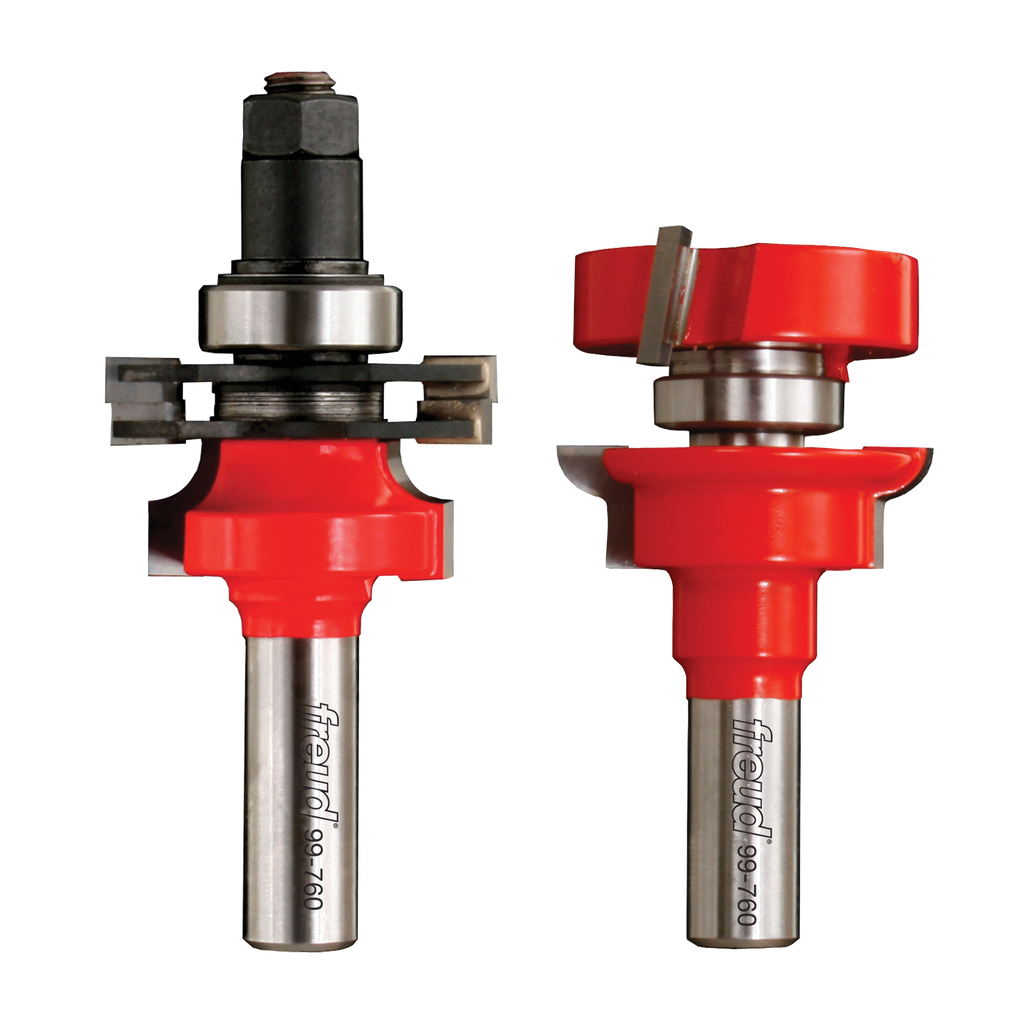

Freud 1-11/16″ (dia.) Premier Adjustable Rail & Stile Bit with 1/2″ shank (round over), 3-3/4″ overall length #99-760
$158.94
Engineered for precision and versatility, this adjustable rail and stile bit from Freud Tools features a unique cutter geometry designed to eliminate tearout, ensuring a smooth finish on various materials, including hardwoods, softwoods, and veneered plywood. With patented extended tenon capability, it allows for the milling of extra-strong long tenon joints, making it an exceptional choice for creating durable rail and stile doors. Users can select from five different profiles to accommodate stock thicknesses ranging from 5/8″ to 1-1/4″, producing perfectly fitting doors tailored to specific project needs. The bit is manufactured with TiCo™ Hi-Density Carbide and is protected by Freud’s Perma-SHIELD® Coating, maximizing both lifespan and performance for your woodworking endeavors.
Description

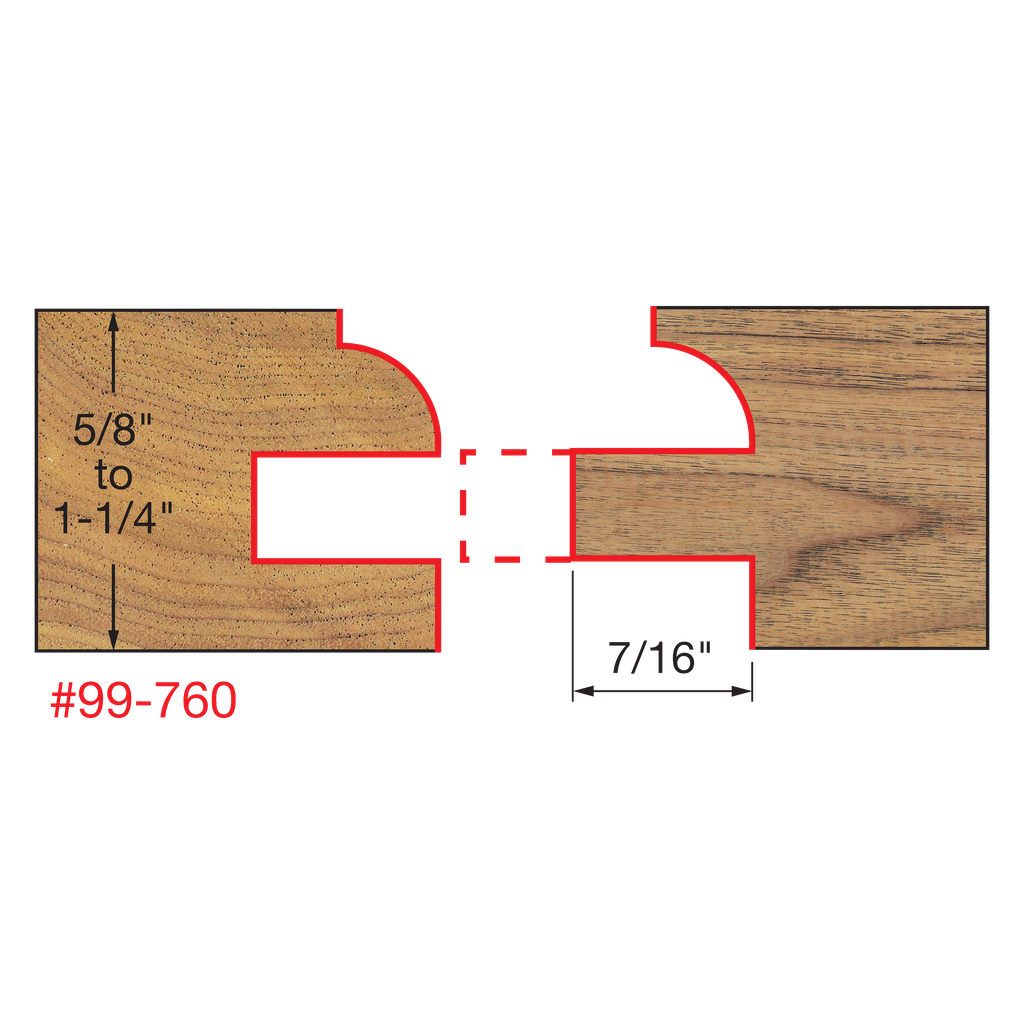

Freud’s unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8″ to 1-1/4″ thick, and also features Freud’s patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32″(5.5mm) for thinner plywood panels to 3/8″ (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.
Additional information
| Weight | 1.43 lbs |
|---|---|
| Dimensions | 4.55 × 4 × 5.45 in |
| Diameter | 1-11/16 in |
| Overall Length | 3-3/4 in |
