GIRDER HNGR MASONRY SDS 2-1/2 THD37400
$158.89

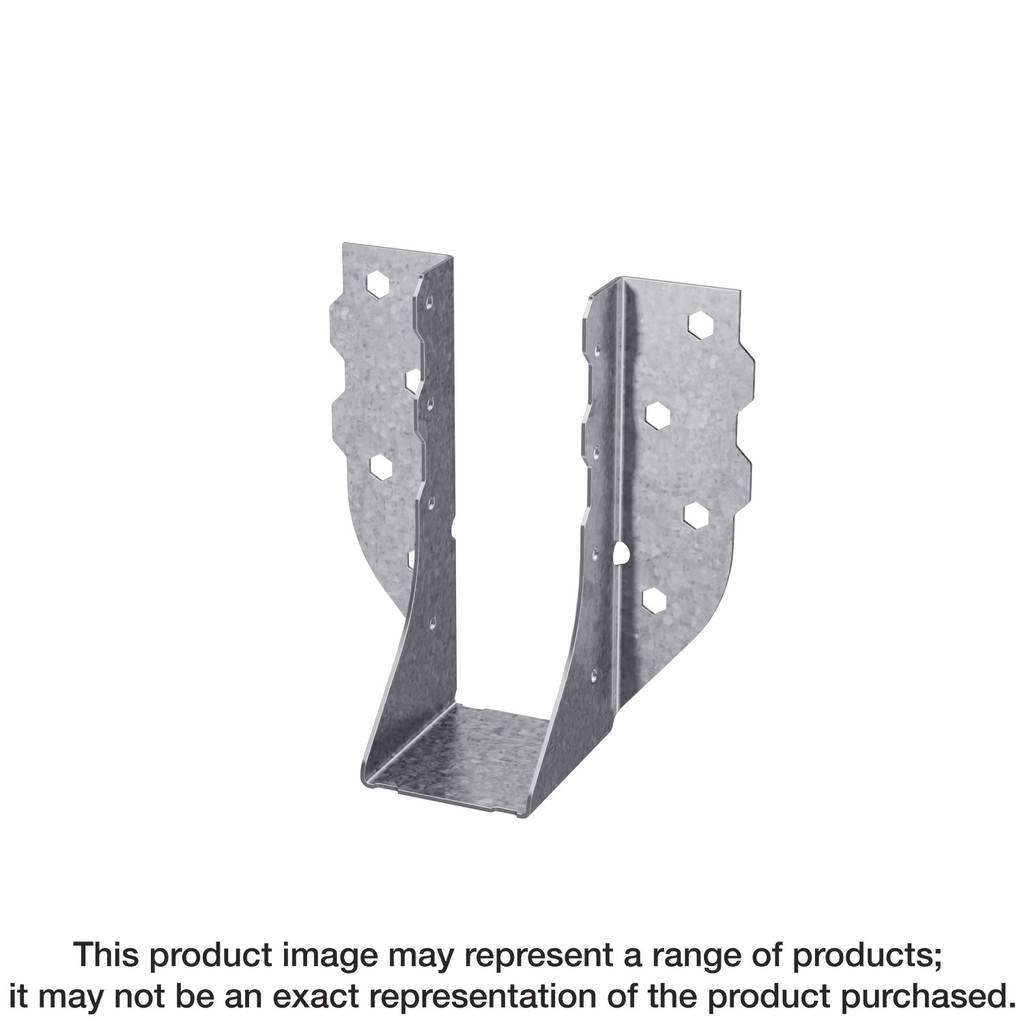

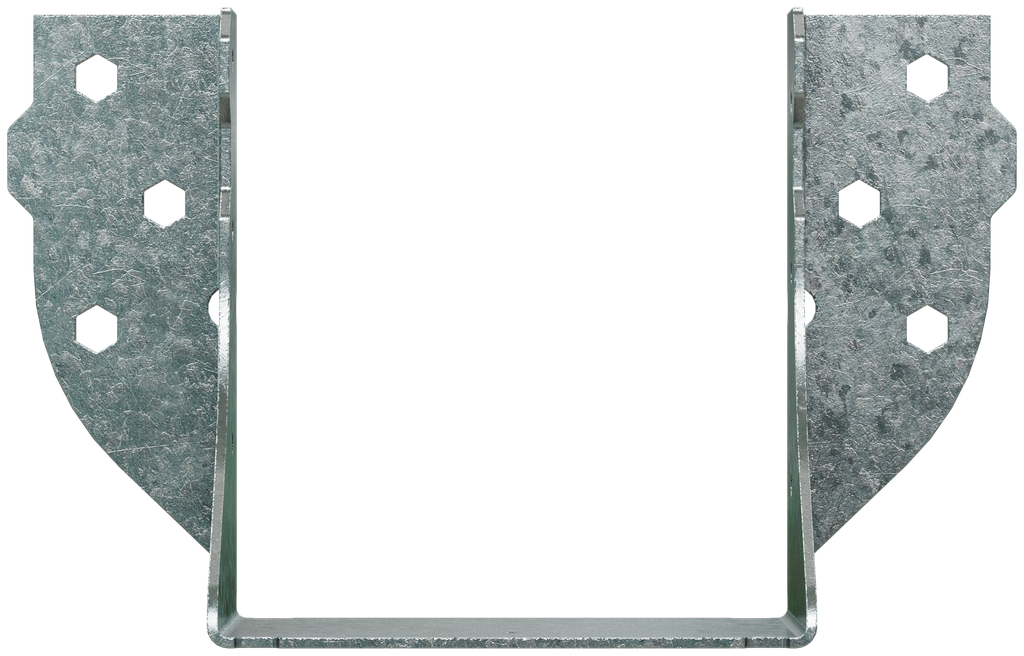

Engineered for robust structural support, the LGUM high-capacity girder hanger from Simpson Strong-Tie is specifically designed for masonry applications with Quad 2×8 beams. Constructed from durable 12-gauge steel and galvanized for superior corrosion resistance, this hanger ensures long-lasting performance even in demanding environments. Installation is straightforward, as it attaches easily to a concrete or grouted CMU wall using Titen HD anchors, although these are not recommended for exposed exterior applications. To comply with local regulations, it is crucial to provide a moisture barrier between the beam and wall, ensuring that your construction stays reliable and secure over time.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LGUM high-capacity beam or girder hangers are for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie® Strong-Drive® SDS screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.
Additional information
| Weight | 3.87 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 12.01 in |
| Nominal joist size | Quad 2×8 |
