GIRDER HNGR MASONRY SDS 2-1/2 THD37400
$146.71

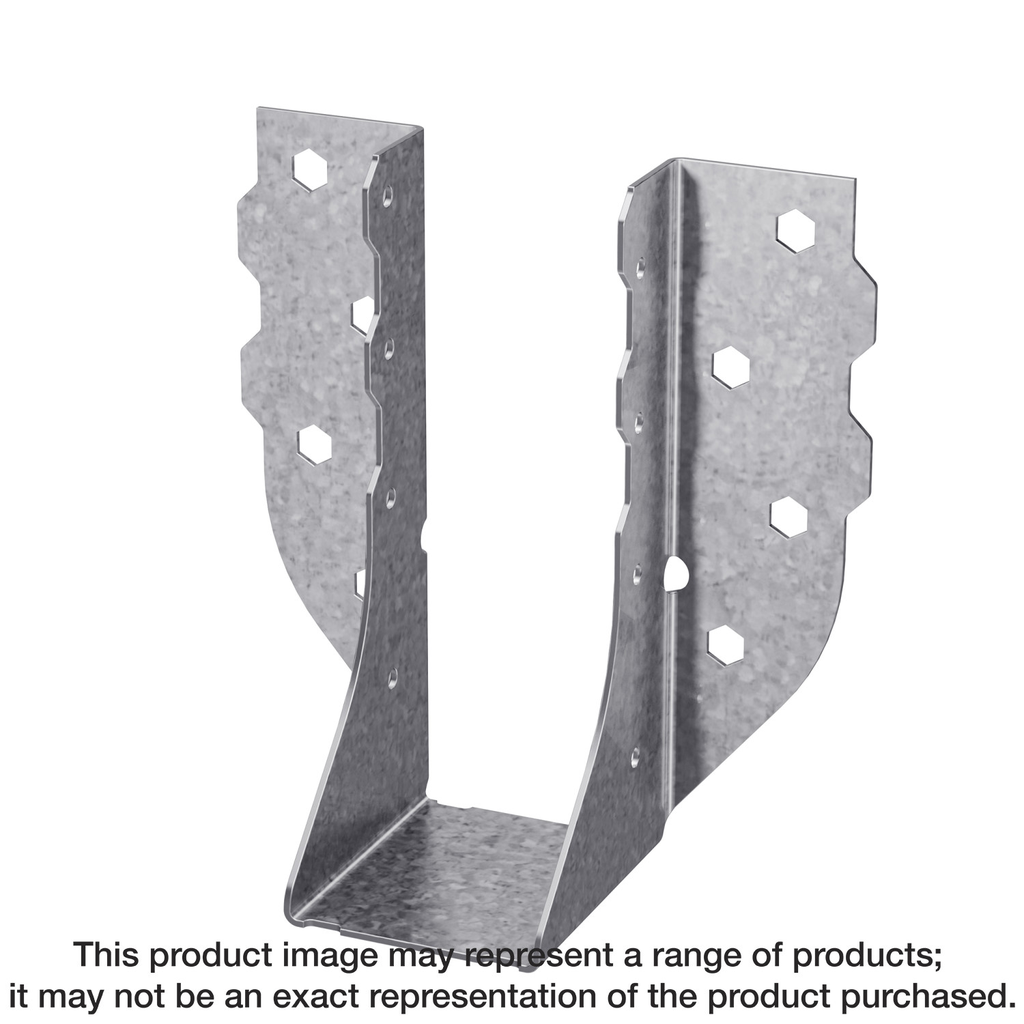

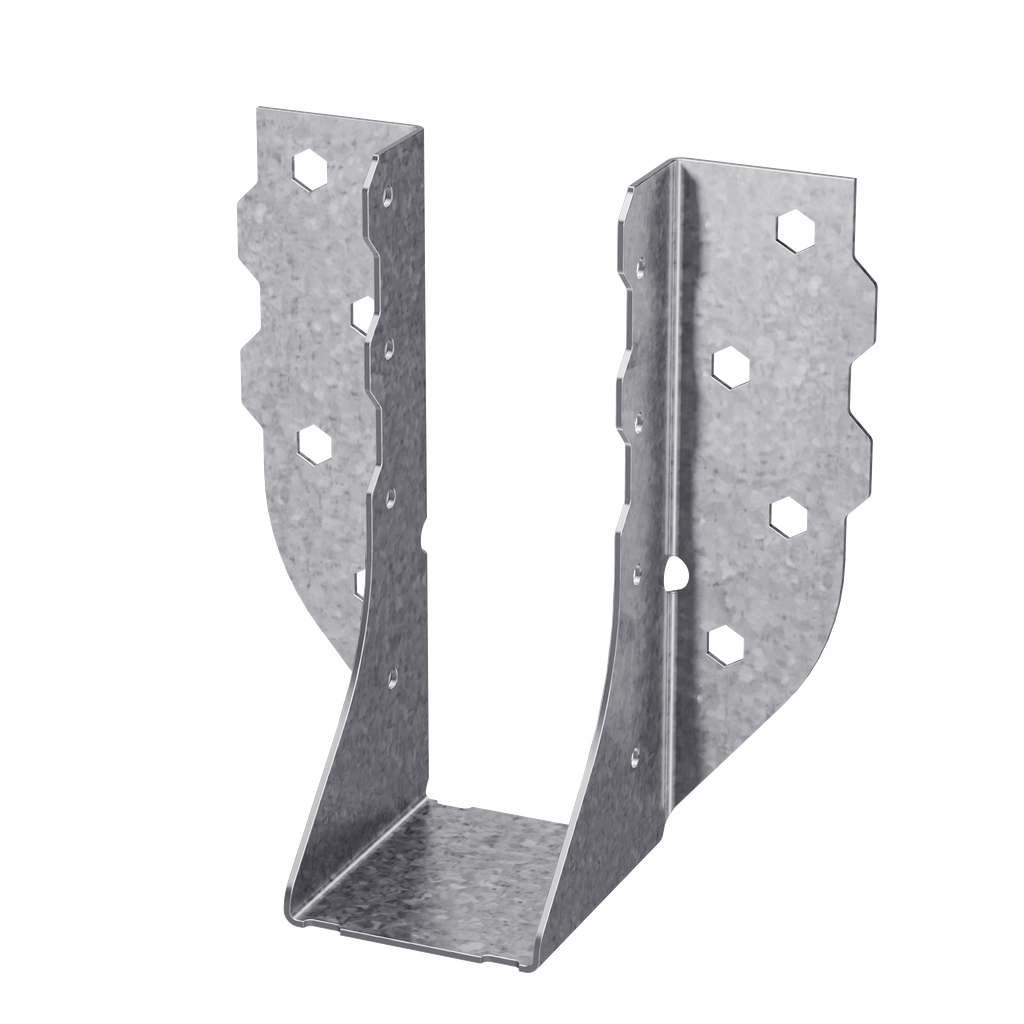

Offering robust support for your construction needs, the high-capacity girder hanger from Simpson Strong-Tie is designed specifically for masonry applications, facilitating the secure fastening of double 2×10 beams. Crafted from durable 12-gauge steel and galvanized for extra corrosion resistance, this hanger ensures longevity and reliability in various environments. For optimal performance, it provides a moisture barrier between the beam and wall in adherence to jurisdictional requirements, making it suitable for a range of structural projects. Additionally, the hanger can be easily attached to a concrete or grouted CMU wall using Titen HD anchors, although care should be taken as it is not recommended for exposed exterior applications.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LGUM high-capacity beam or girder hangers are for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie® Strong-Drive® SDS screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.
Additional information
| Weight | 4.25 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal joist size | Double 2×10 |
| Depth | 8.75 in |
