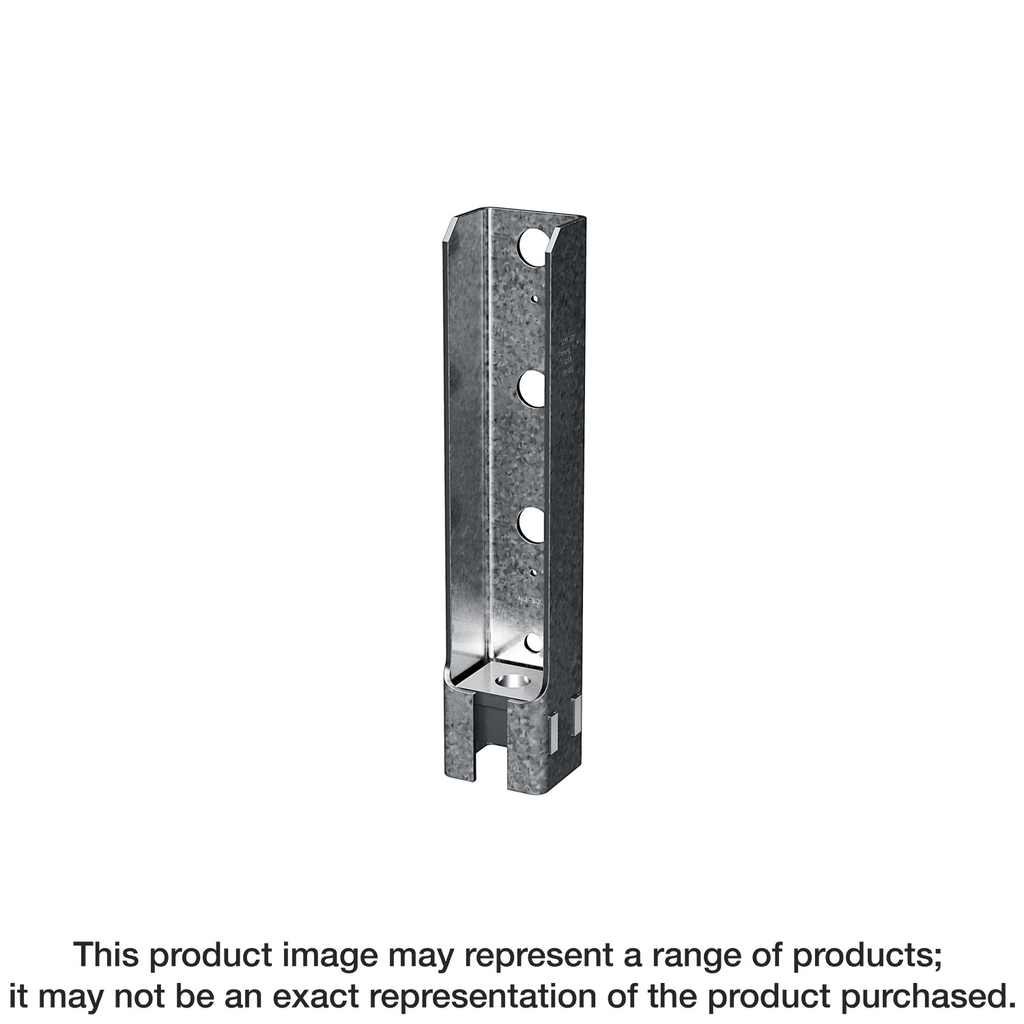

HD9BHDG BOLTED HOLDOWN HDG VERSION
$103.65
The Simpson Strong-Tie HD9BHDG HDB is a versatile bolted holdown designed to enhance structural integrity in various construction settings. Its innovative self-jigging feature allows for precise installation, ensuring compliance with code requirements by maintaining a minimum spacing of seven bolt diameters from the post’s end when installed flush against the sill plate. Made from robust materials, including a 3/8-inch steel base and a 7-gauge steel body, this product offers exceptional durability. With hot-dip galvanization providing superior corrosion resistance, it is particularly well-suited for exterior and treated-wood applications, making it an essential component in ensuring long-lasting construction stability. Its unique seat design further minimizes deflection under load, allowing for reliable performance in demanding environments.
Description
The Simpson Strong-Tie® HDB is designed to provide loads for intermediate-load-range shearwalls, braced-wall panels and lateral applications in wood construction. This bolted holdown is installed with bolts into studs or columns and offers low-deflection performance for a range of load requirements. The HDB is suitable for back-to-back applications where eccentricity is a concern.
Additional information
| Weight | 6.35 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Height | 14 in |
| Width | 2-7/8 in |
