HDG VERSION OF HD3B
$20.41

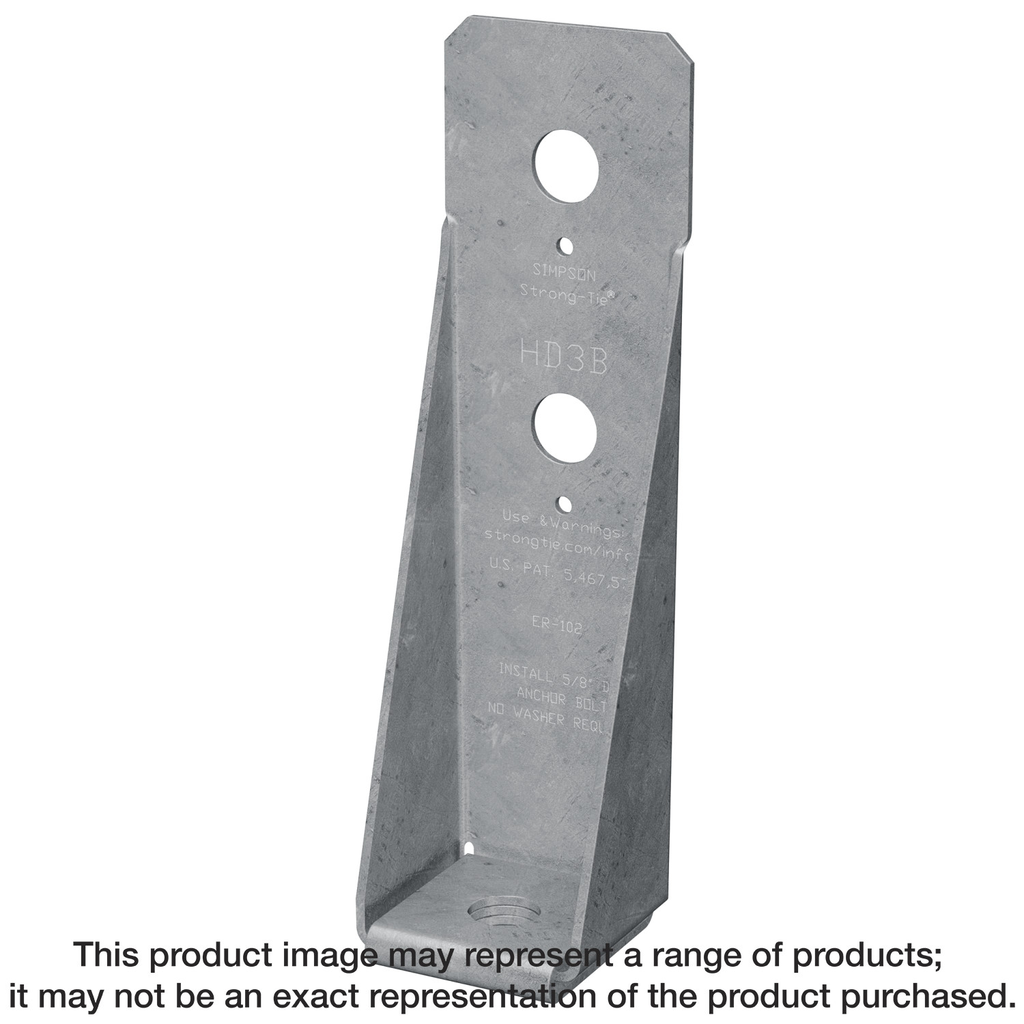

The HD3BHDG HDB is a light-duty holdown crafted by Simpson Strong-Tie, designed specifically for use in shear walls and braced-wall panels, making it ideal for various lateral applications. This holdown provides remarkable stability and strength, featuring a robust construction from 12-gauge steel and enhanced by hot-dip galvanization for superior corrosion resistance, particularly in exterior and treated-wood environments. Its thoughtful design allows for installation after concrete placement, ensuring seamless integration into existing structures, and it can be secured directly on the sill plate or elevated as needed. Notably, the self-jigging feature simplifies the installation process, ensuring compliance with critical building codes regarding bolt placement.
Description
The Simpson Strong-Tie® HDB is designed to provide loads for intermediate-load-range shearwalls, braced-wall panels and lateral applications in wood construction. This bolted holdown is installed with bolts into studs or columns and offers low-deflection performance for a range of load requirements. The HDB is suitable for back-to-back applications where eccentricity is a concern.
Additional information
| Weight | 1.32 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Height | 8-5/8 in |
| Width | 2-1/2 in |
