HEAVY DUTY STUD TO PLATE TIE
$3.13
Engineered for robust performance in demanding environments, this heavy-duty stud plate tie from Simpson Strong-Tie is designed to provide exceptional resistance against wind and seismic forces. With a load-rated construction, it boasts ZMAX galvanization, which enhances its corrosion resistance, making it ideal for both exterior and treated-wood applications. The innovative design eliminates the need for top or bottom track attachment, allowing for easier installation, while the 18-gauge steel construction ensures durability and strength. This stud plate tie is a reliable solution for builders seeking stability and protection in their structural framework.
Description

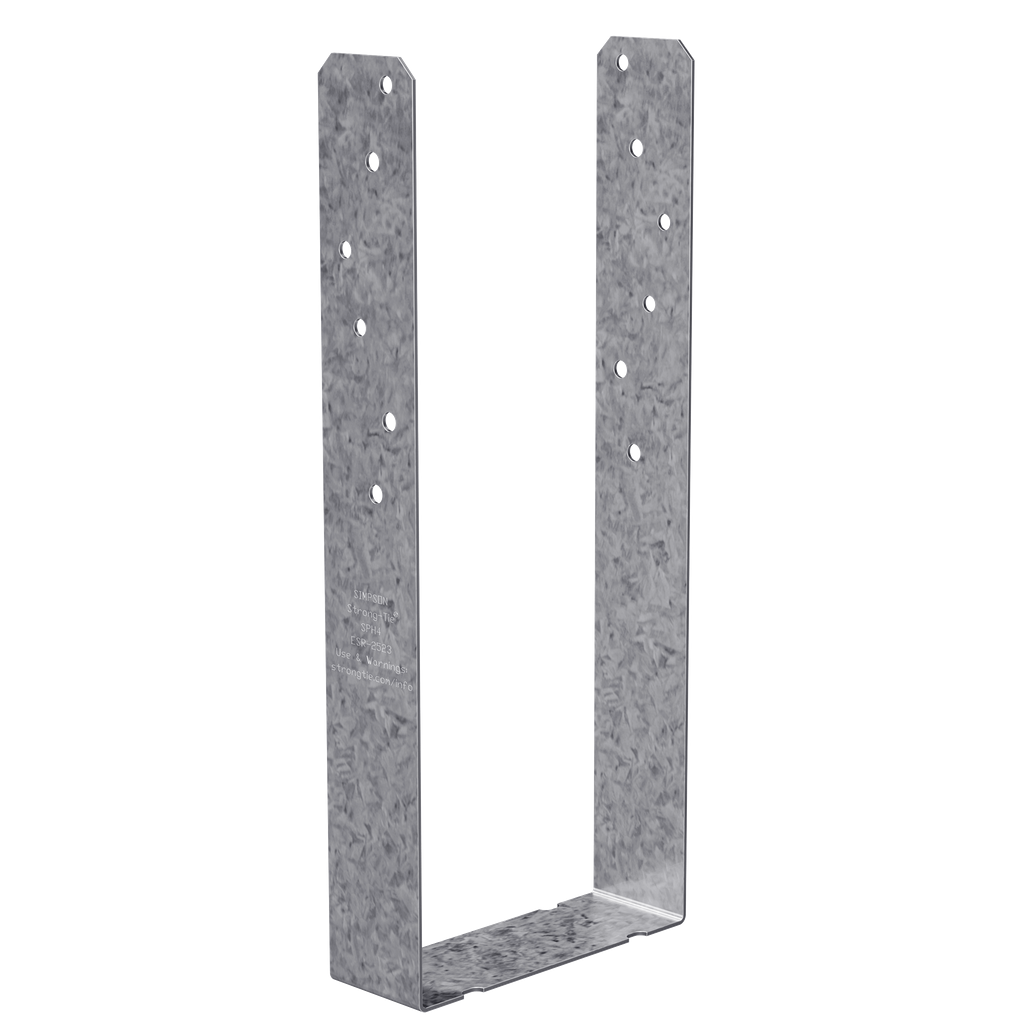

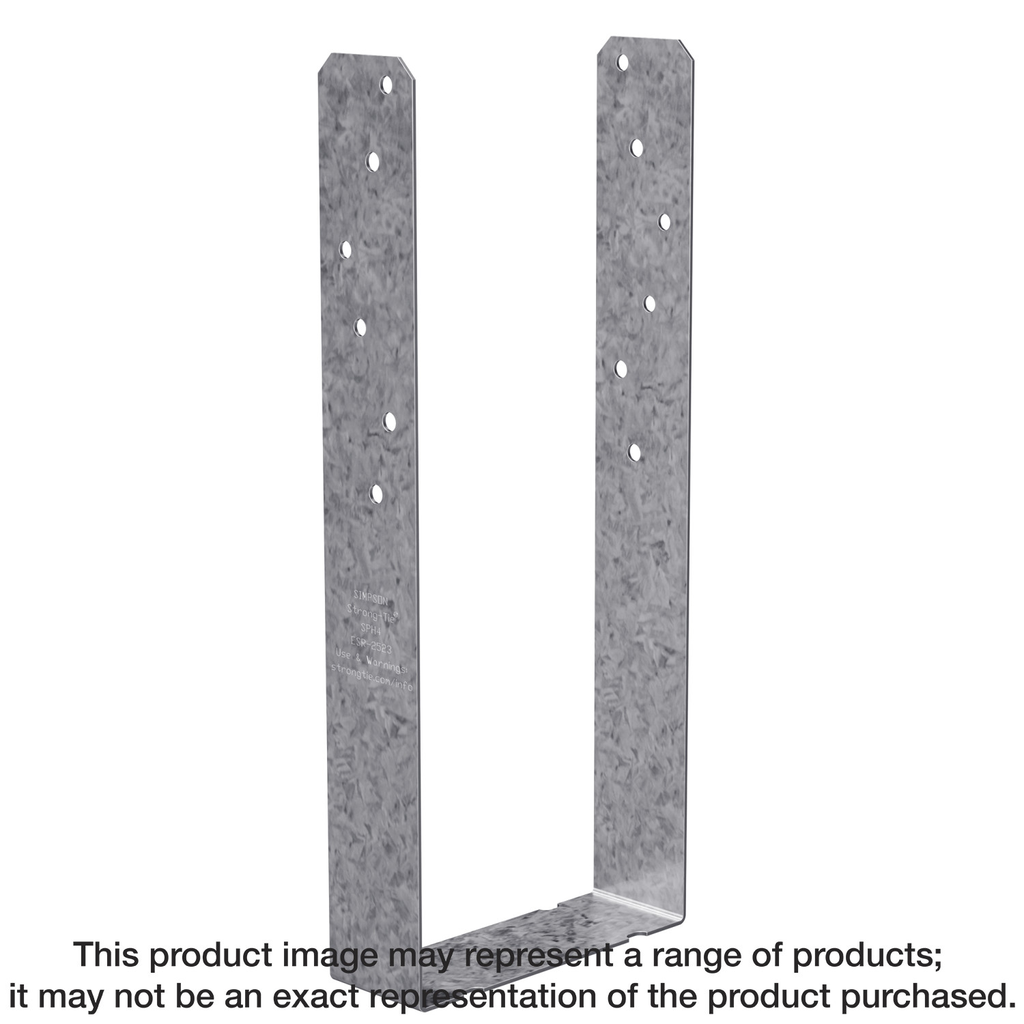

The SPH is a heavy U-shaped strap designed as a stud-to-plate connection to resist roof uplift. This heavy U-shaped strap has a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. This tie is a cost-effective option when properly installed before the placement of the wall.
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Rating | Load rated |
| Size | 3-9/16 in x 8-3/4 in (Depth 3.6585 in) |
