HEAVY DUTY STUD TO PLATE TIE
$2.71
Engineered for robust structural support, this heavy-duty stud plate tie is a vital component for any construction project requiring exceptional durability. Crafted from 18-gauge steel and treated with G90 galvanization, it offers significant corrosion resistance, ensuring longevity in various environmental conditions. This tie is specifically designed to withstand wind and seismic forces, making it a reliable solution for both residential and commercial applications. Its innovative design eliminates the need for top or bottom track attachments, simplifying installation while maintaining load-rated performance for secure support in your framework.
Description

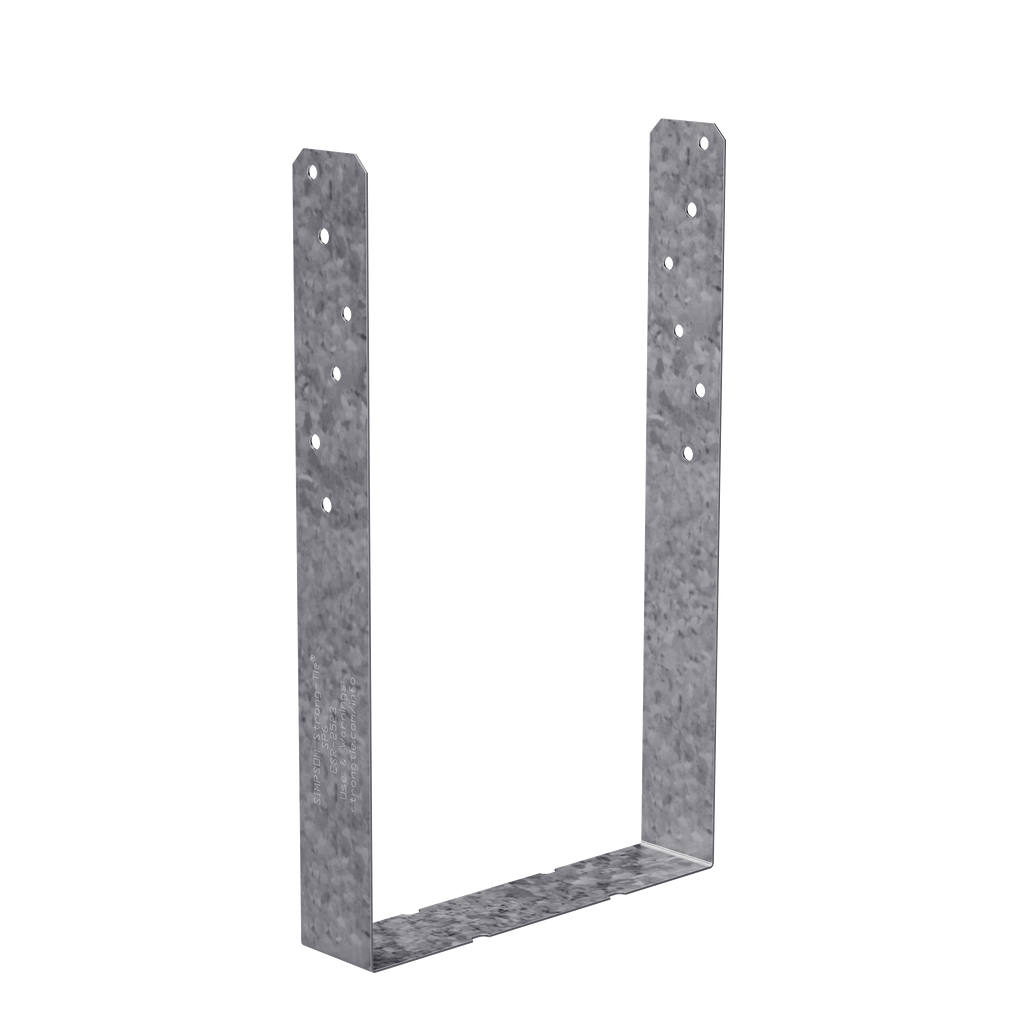

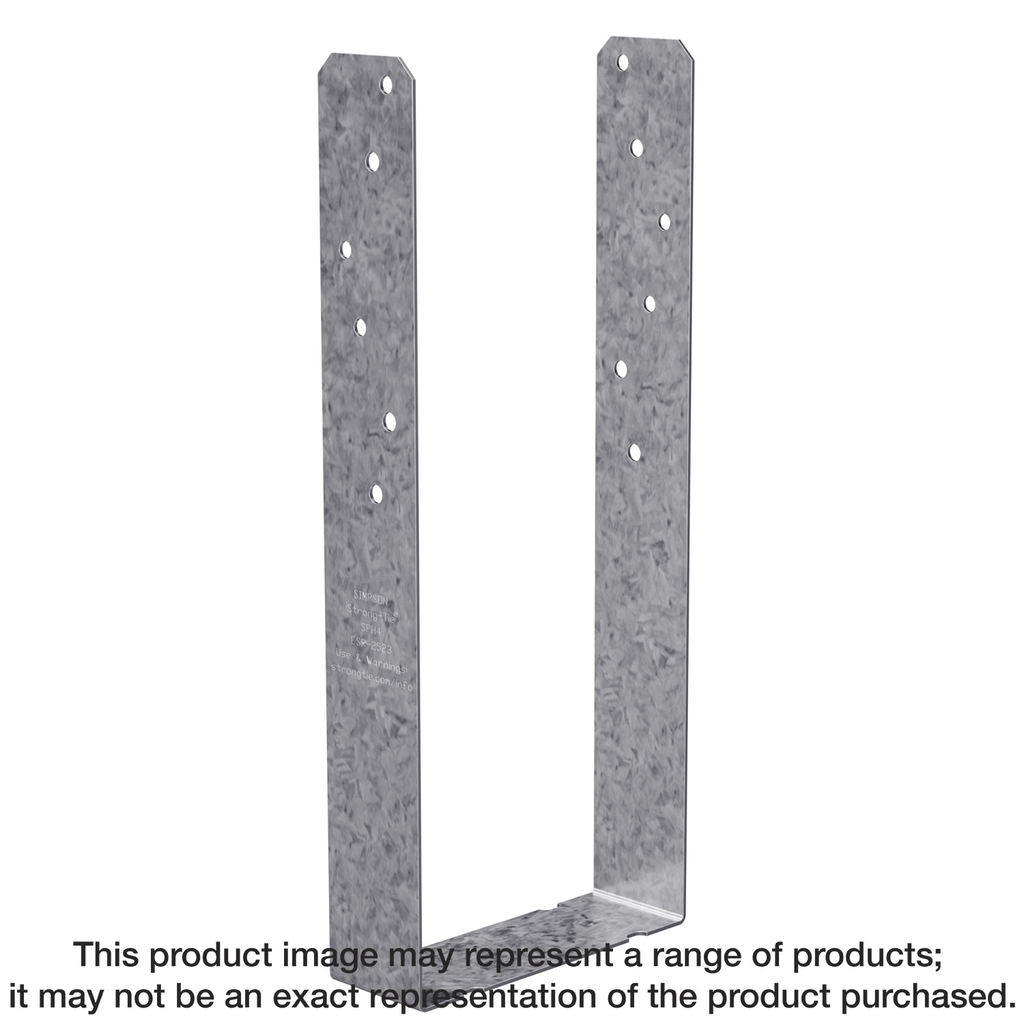

The SPH is a heavy U-shaped strap designed as a stud-to-plate connection to resist roof uplift. This heavy U-shaped strap has a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. This tie is a cost-effective option when properly installed before the placement of the wall.
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Rating | Load rated |
| Size | 5-9/16 in x 9-1/4 in |
