HEAVY DUTY STUD TO PLATE TIE
$3.02
Engineered to provide robust support in various construction applications, this heavy-duty stud plate tie is designed to effectively resist wind and seismic forces, ensuring structural integrity. Constructed from durable 18-gauge steel and galvanized with G90 coating, it delivers exceptional corrosion resistance, making it suitable for demanding environments. The design eliminates the need for top or bottom track attachment, allowing for streamlined installation while maintaining load-rated performance. With its dimensions tailored for standard nominal stud sizes, this stud plate tie is an essential component for builders seeking reliable and efficient connections in their projects.
Description

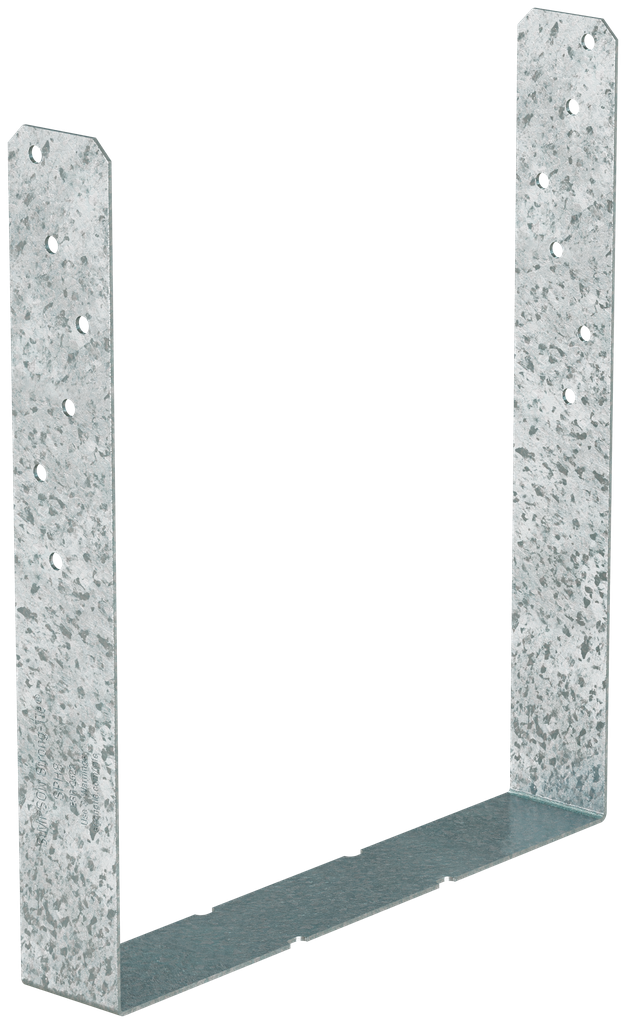

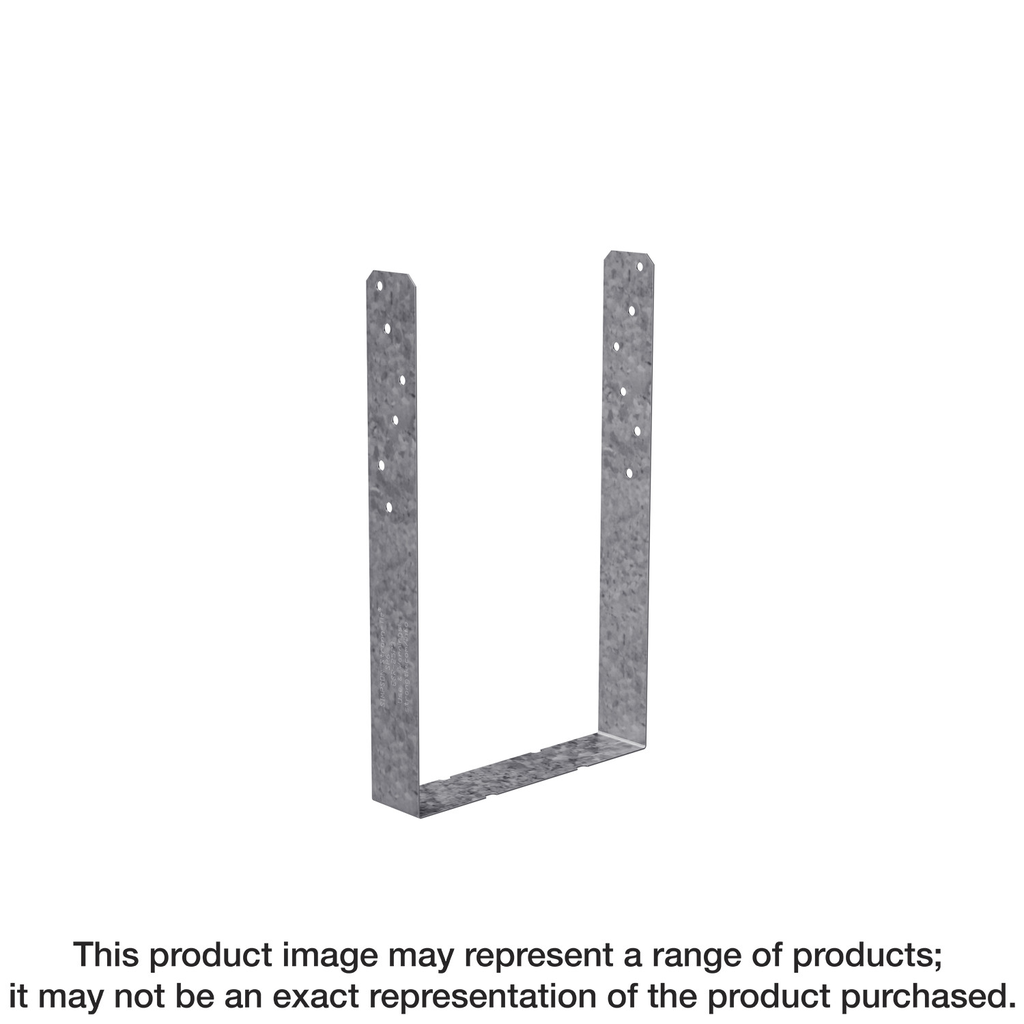

The SPH is a heavy U-shaped strap designed as a stud-to-plate connection to resist roof uplift. This heavy U-shaped strap has a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. This tie is a cost-effective option when properly installed before the placement of the wall.
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 7.4045 in |
| Nominal Plate Width | 8 in |
