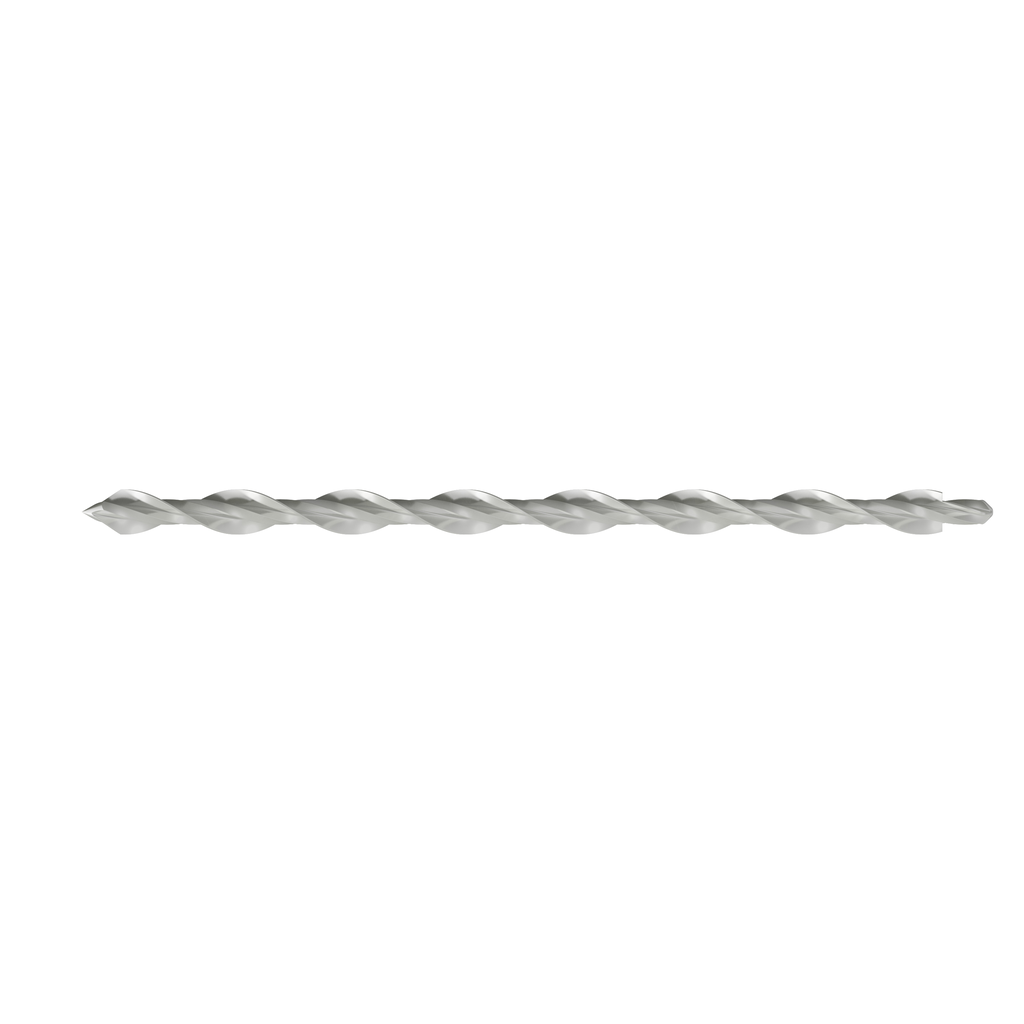

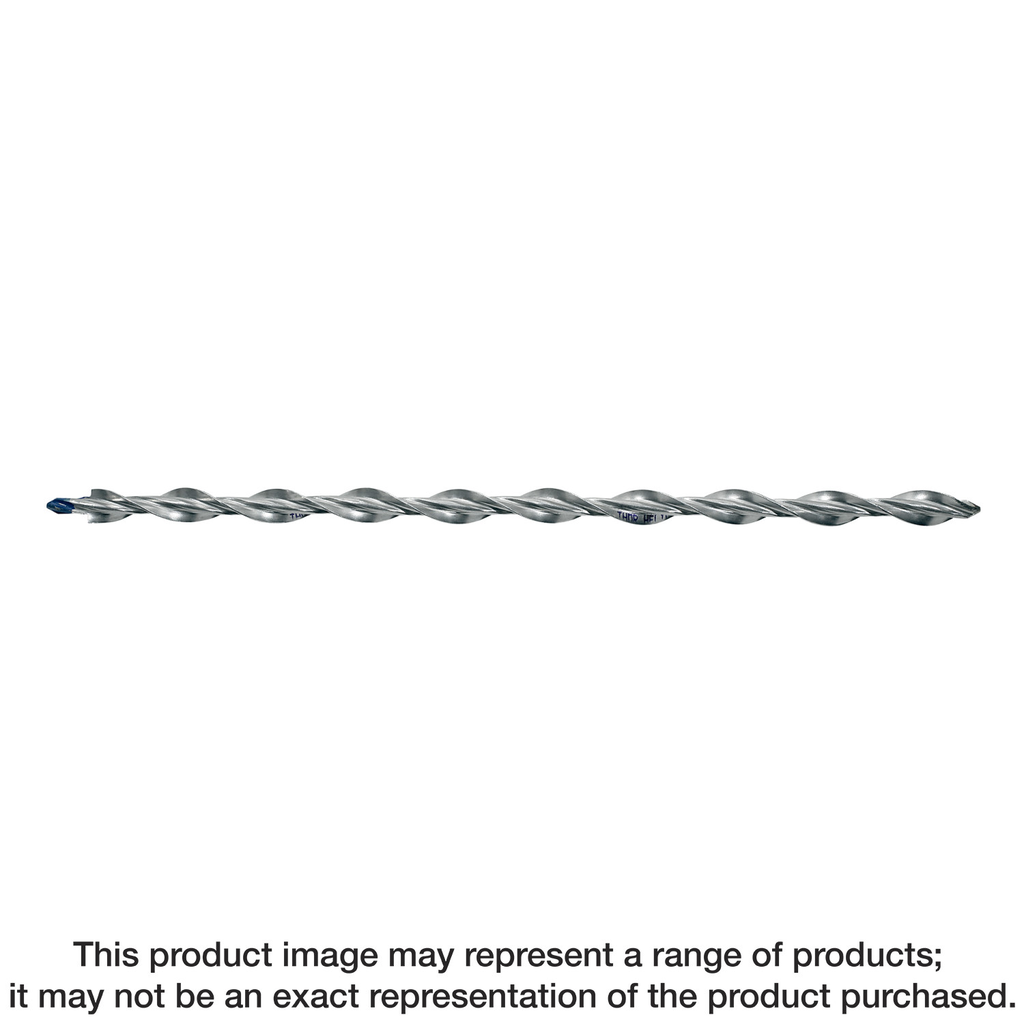

HELI-TIE HELICAL TIE 3/8 X 7 304SS
$290.20
The Heli-Tie™ from Simpson Strong-Tie is engineered for effective wall repairs, featuring a durable 3/8 inch by 7 inch design crafted from corrosion-resistant stainless steel. This innovative wall tie allows for inconspicuous installations, as it can be countersunk up to half an inch below the surface, ensuring the aesthetic integrity of your building remains intact. The unique fractional sizing eliminates the need for metric drill bits, while its larger core diameter enhances torsional capacity, minimizing deflection under load. With a straightforward installation process utilizing a rotohammer in hammer mode, the Heli-Tie™ stands out for its efficiency and reliability, making it an essential choice for both professional contractors and DIY enthusiasts.
Description
The Heli-Tie helical wall tie is a stainless-steel tie used to anchor building façades to structural members or to stabilize brick walls. The helical design allows the tie to be driven quickly and easily into a predrilled pilot hole (or embedded into mortar joints in new construction) to provide a mechanical connection between a masonry façade and its backup material. As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads. The Heli-Tie wall tie is installed into a predrilled hole using a proprietary setting tool with an SDS-plus® shank rotohammer to drive and countersink the tie. Heli-Tie wall ties perform in concrete and masonry as well as wood and steel studs.
Additional information
| Weight | 2.55 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 7 in |
| Depth | 7.087 in |
