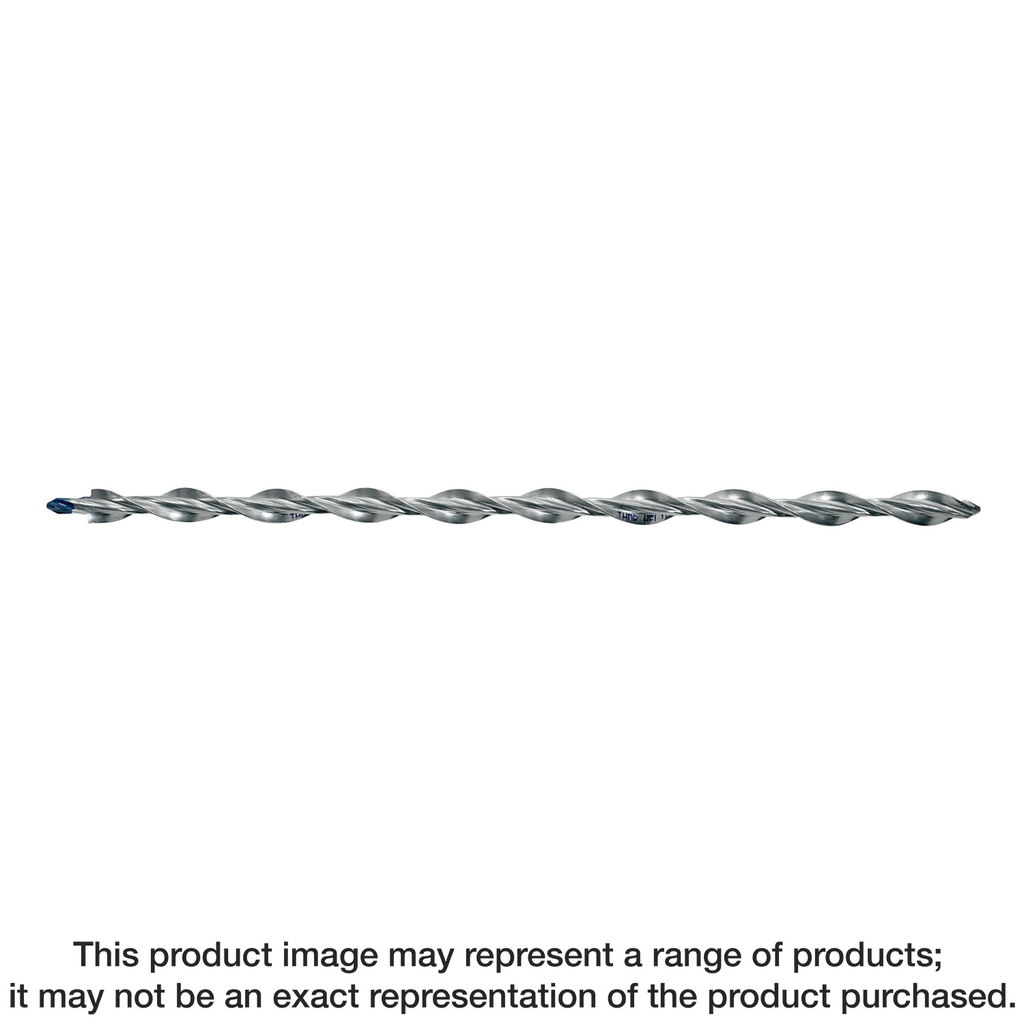

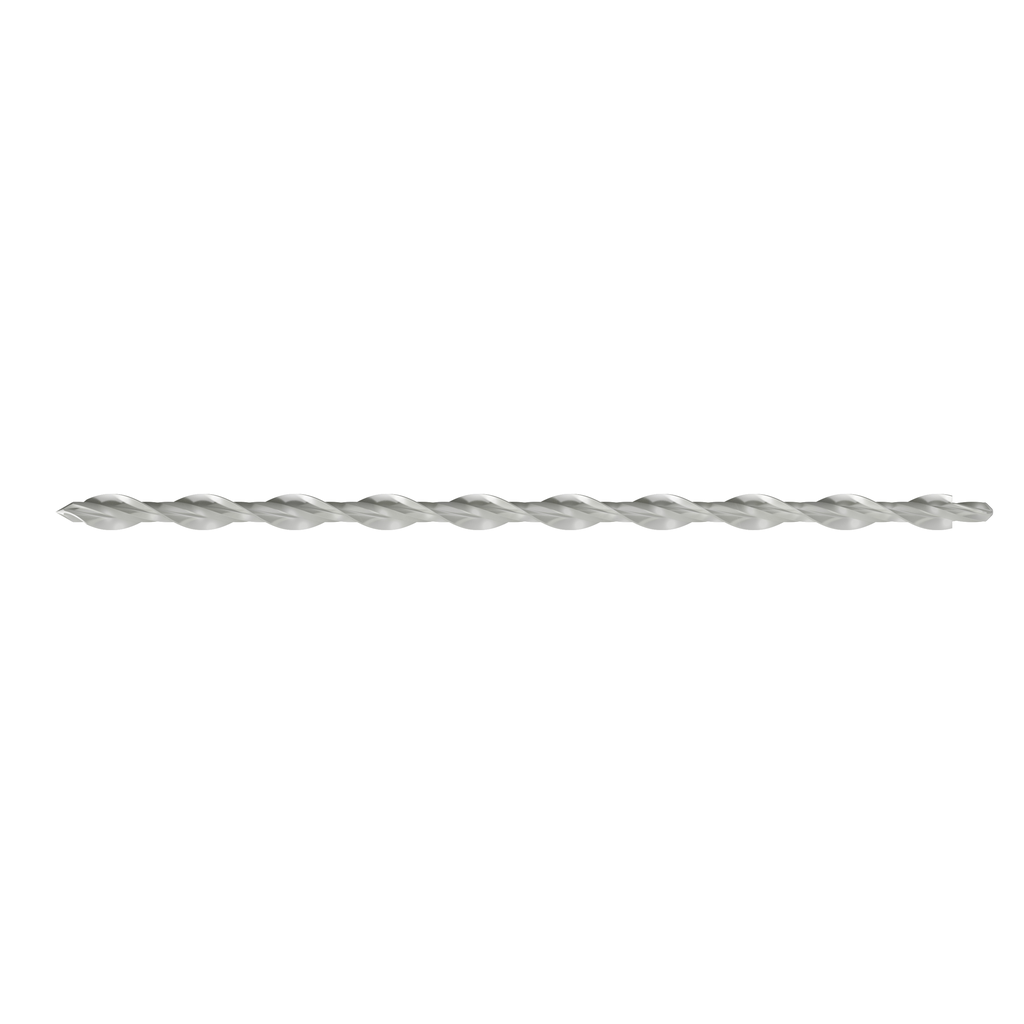

HELI-TIE HELICAL TIE 3/8 x 9 304SS
$379.00
The Heli-Tie™ from Simpson Strong-Tie offers an efficient solution for wall repairs with its innovative design and robust performance. This product, measuring 3/8 inch in diameter and 9 inches in length, installs rapidly when using a rotohammer in hammer mode, saving time compared to competitive options. The helical structure features a larger core diameter, which enhances torsional capacity and reduces deflection under load, making it an ideal choice for providing lasting support.
Description
The Heli-Tie helical wall tie is a stainless-steel tie used to anchor building façades to structural members or to stabilize brick walls. The helical design allows the tie to be driven quickly and easily into a predrilled pilot hole (or embedded into mortar joints in new construction) to provide a mechanical connection between a masonry façade and its backup material. As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads. The Heli-Tie wall tie is installed into a predrilled hole using a proprietary setting tool with an SDS-plus® shank rotohammer to drive and countersink the tie. Heli-Tie wall ties perform in concrete and masonry as well as wood and steel studs.
Additional information
| Weight | 2.95 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Length | 9 in |
| Country of Origin | United Kingdom |
