HIGH CAPACITY EMBEDDED TRUSS ANCHOR
$10.61
Developed with robust engineering, this high-capacity embedded truss anchor offers a reliable solution for securing trusses in various construction applications. Its staggered nail pattern significantly enhances uplift resistance, providing added peace of mind in structural integrity. Designed to be embedded 4-1/2 inches into a poured concrete bond beam or grouted block wall, it ensures a solid connection. Additionally, the G90 galvanized coating provides exceptional corrosion resistance, while the embossed angle contributes to the overall rigidity, making it an ideal choice for dependable and long-lasting performance in demanding environments.
Description

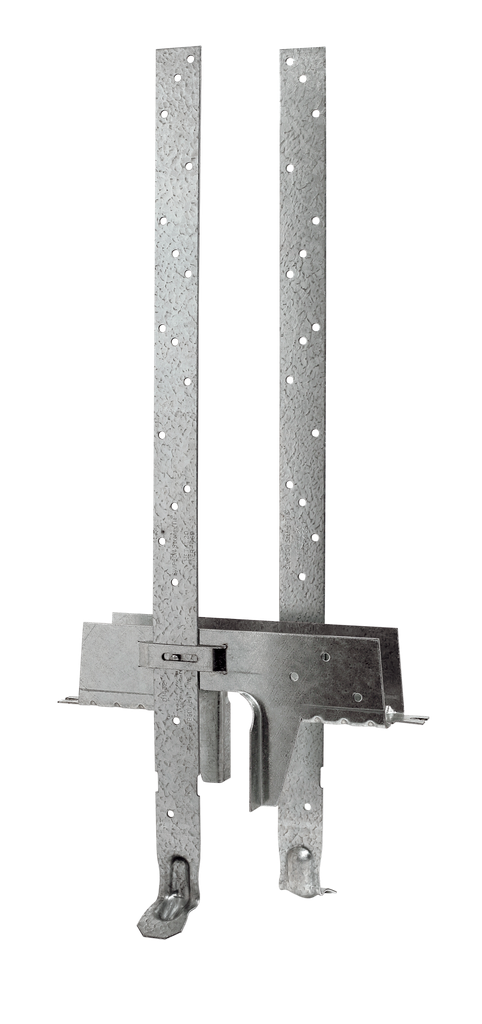

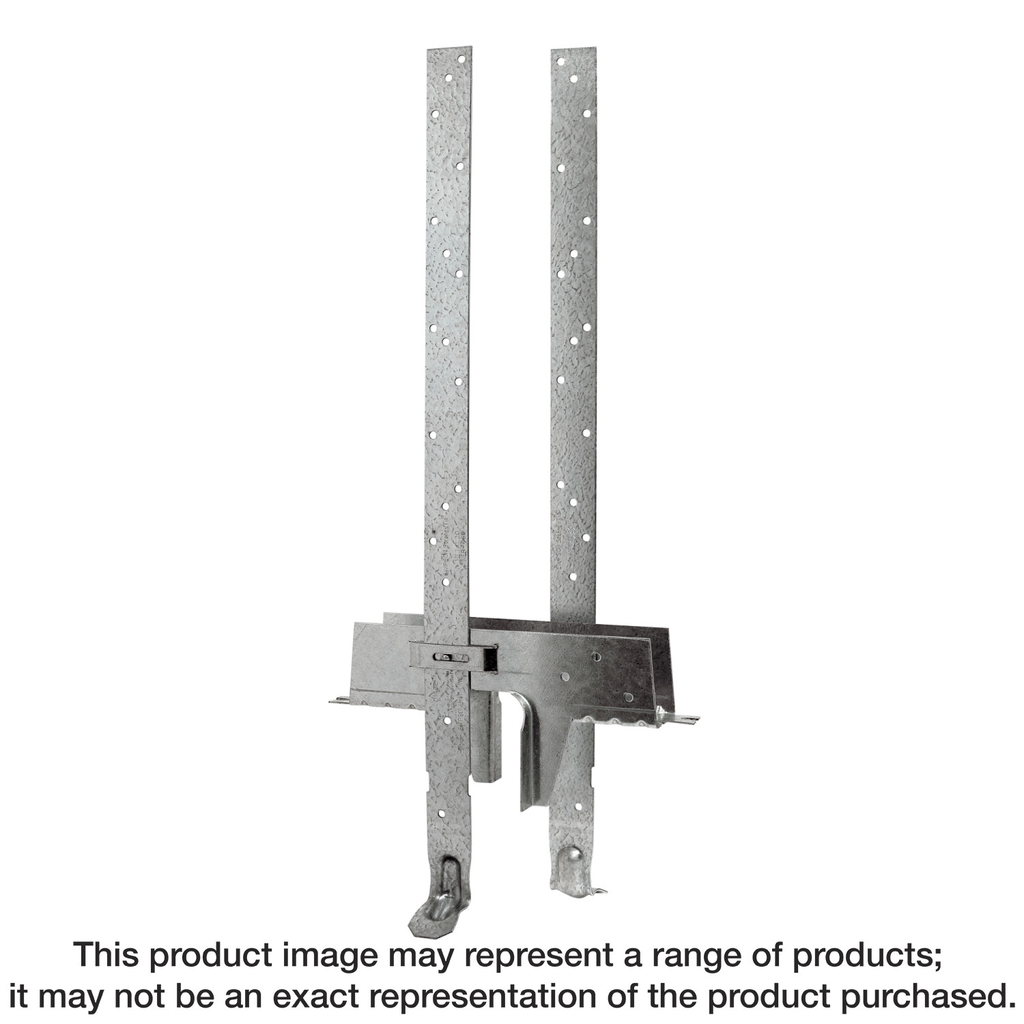

The DETAL20 is a high-capacity embedded truss anchor for attachment of single-ply trusses to concrete and masonry walls. It combines dual embedded anchors with a structural moisture-barrier seat that is partially embedded in the concrete or grout. This seat serves to protect the truss and also provides additional lateral and uplift capacity. The embedded anchors are pre-attached to the moisture barrier through slots that allow for a slight amount of adjustability, providing flexibility during installation to avoid rebar. The moisture-barrier seat includes tabs at each end for optional attachment to the form board in concrete tie-beam applications.
Additional information
| Weight | 1.438 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Steel gauge | 16 ga., barrier 18 ga. |
| Depth | 4.581 in |
