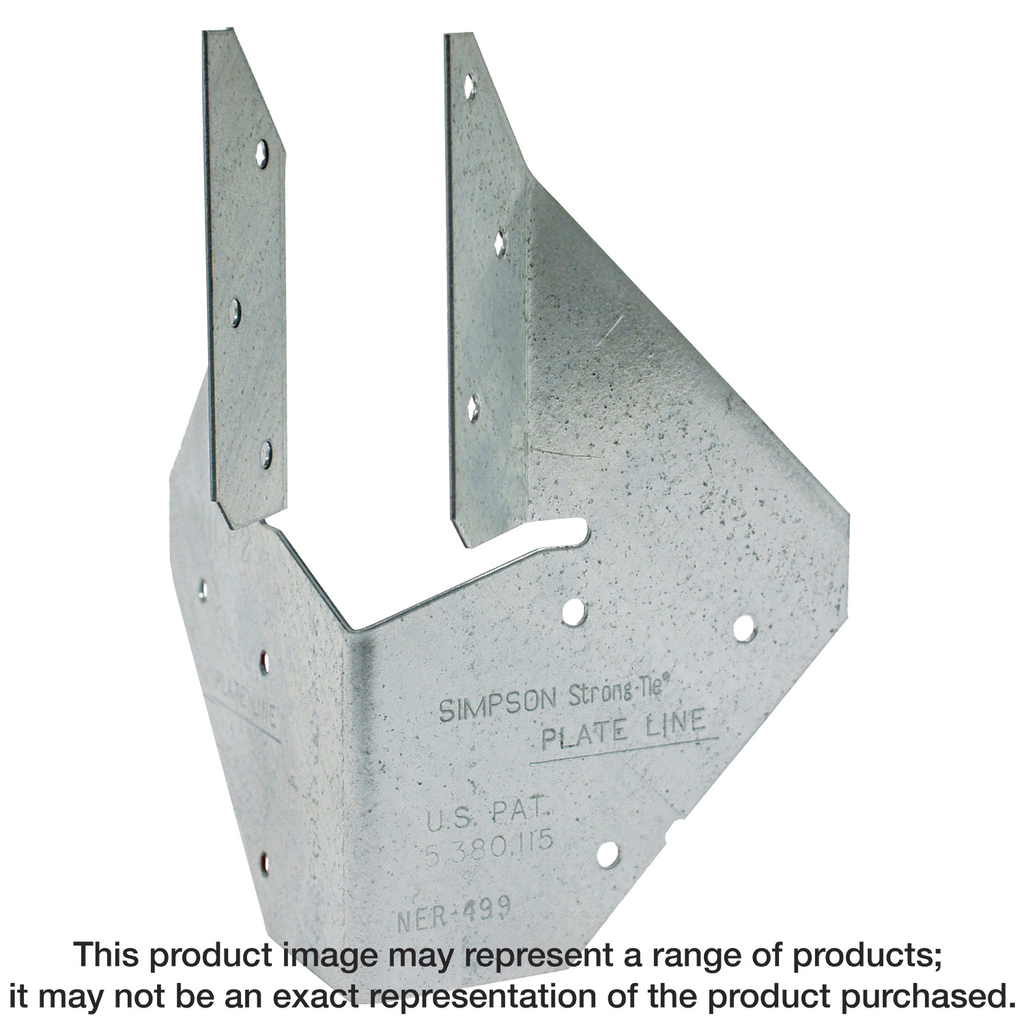

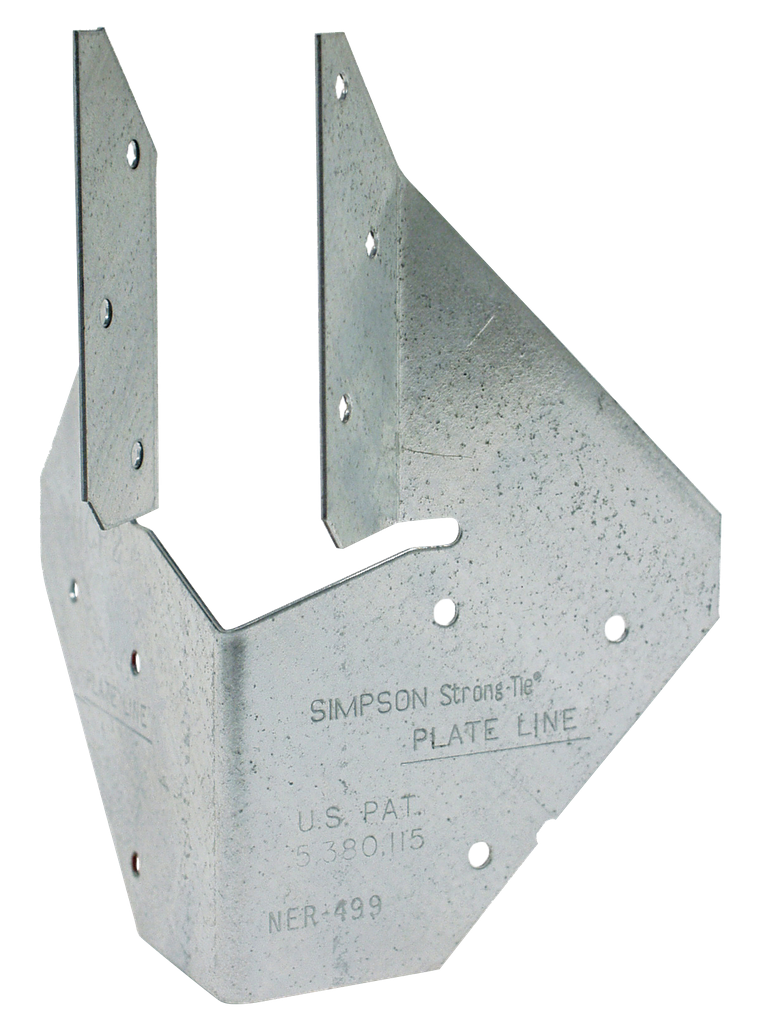

HIP CORNER PLATE
$4.76
Constructed with durability in mind, the hip corner plate from Simpson Strong-Tie is crafted from 18-gauge galvanized steel, ensuring robust performance and exceptional corrosion resistance. Designed specifically for 1-3/4 inch engineered wood, this plate facilitates straightforward installation of rafters and allows for configurations where the rafter may slope up to 45 degrees. It offers versatile application, effectively attaching to double top plates while negating the need for a birdsmouth cut in many cases, particularly for uplift loads. This makes it an ideal solution for those seeking reliable structural connections in various roofing applications.
Description
Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. Hip corner plates are designed for use on the hip of a roof. This corner plate connects LVL hip members to double top plates at a 45° angle. The HCPs provide resistance to uplift and download forces.
Additional information
| Weight | 0.37 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Maximum Rafter Slope | 45° |
| Compatible Wood Thickness | 1-3/4 in |
