HURRICANE TIE
$4.13

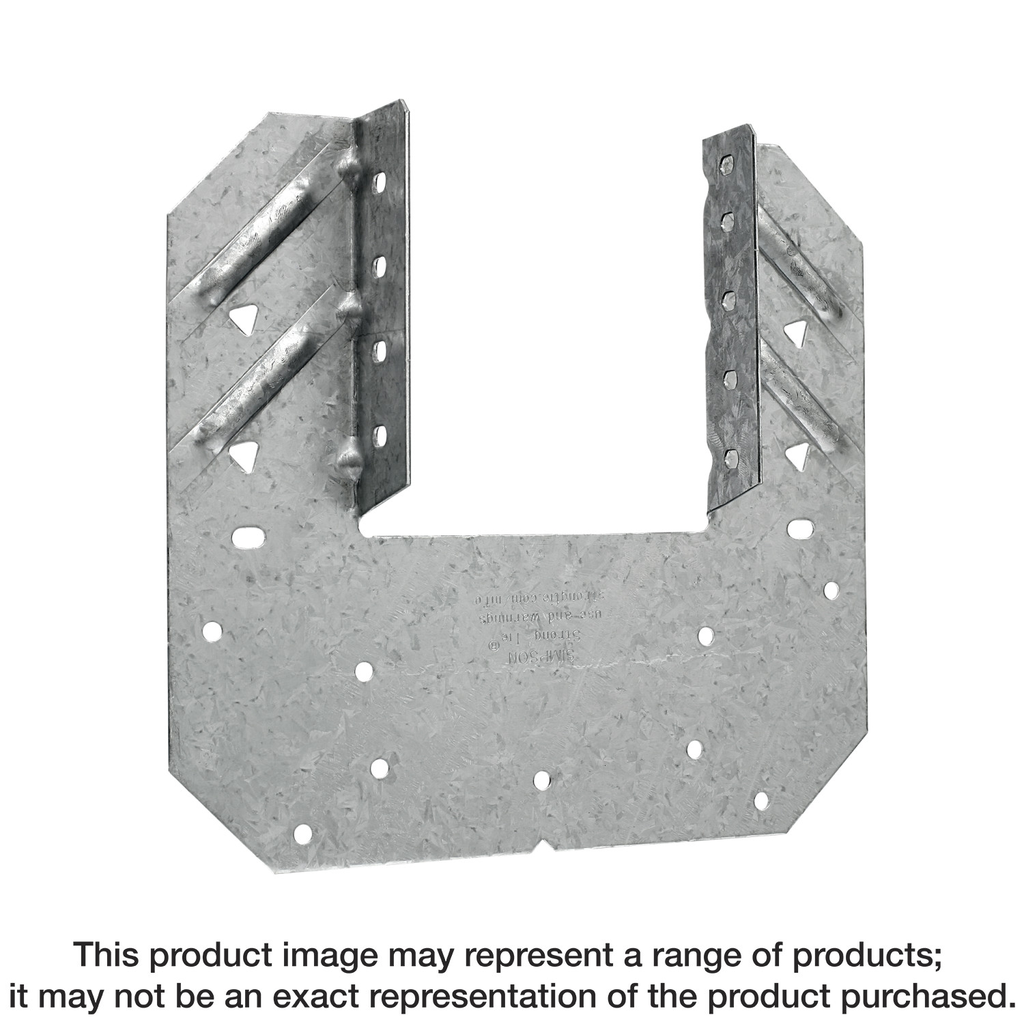

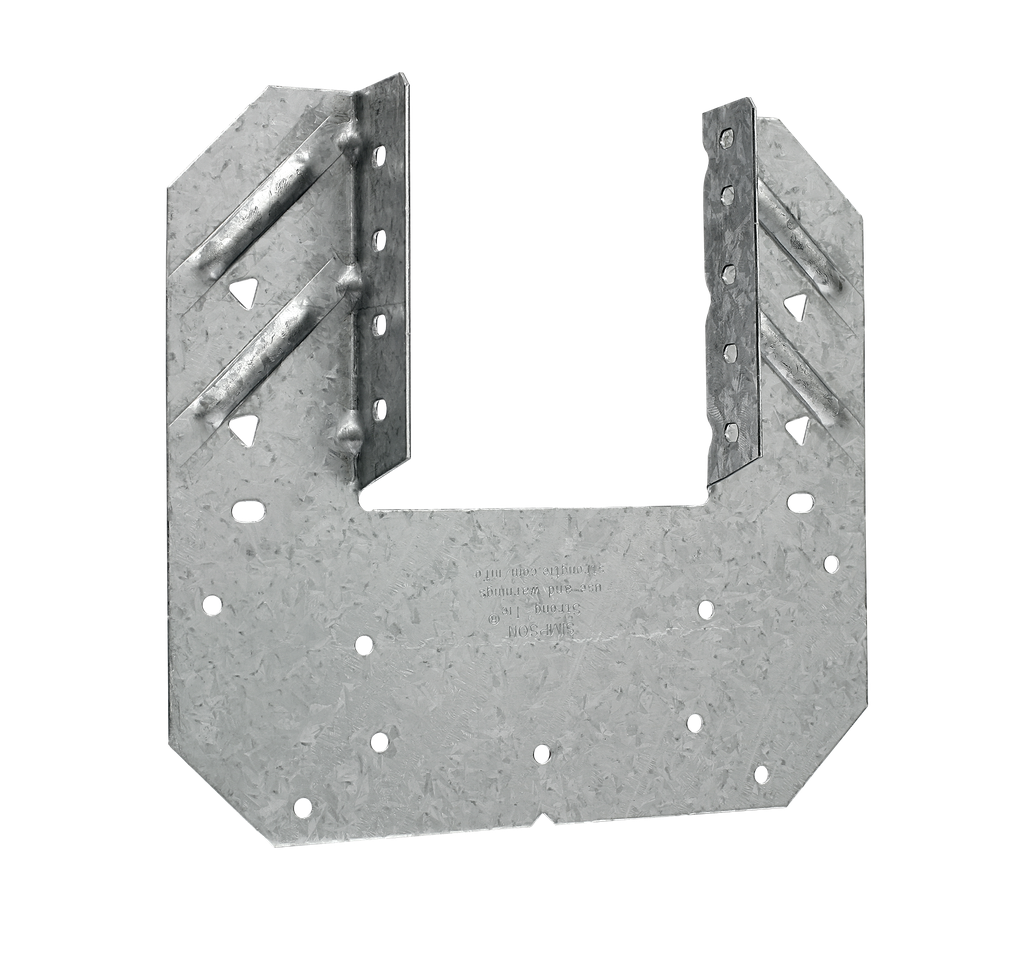

The H10A-2 Hurricane Tie from Simpson Strong-Tie is an essential component for enhancing structural integrity in areas vulnerable to high winds and seismic activity. Crafted from 18-gauge galvanized steel, this tie offers exceptional corrosion resistance, ensuring durability even in challenging environments. Not only does it play a crucial role in forming a continuous load path, but it is also designed to securely hold a double-ply member, making it ideal for robust construction applications. This model is approved for installation with Strong-Drive® SD Connector screws, providing further assurance of its reliability in safeguarding your structures against nature’s forces.
Description
The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 6.5625 in. |
| Capacity | Holds double-ply member |
