HURRICANE TIE
$22.24

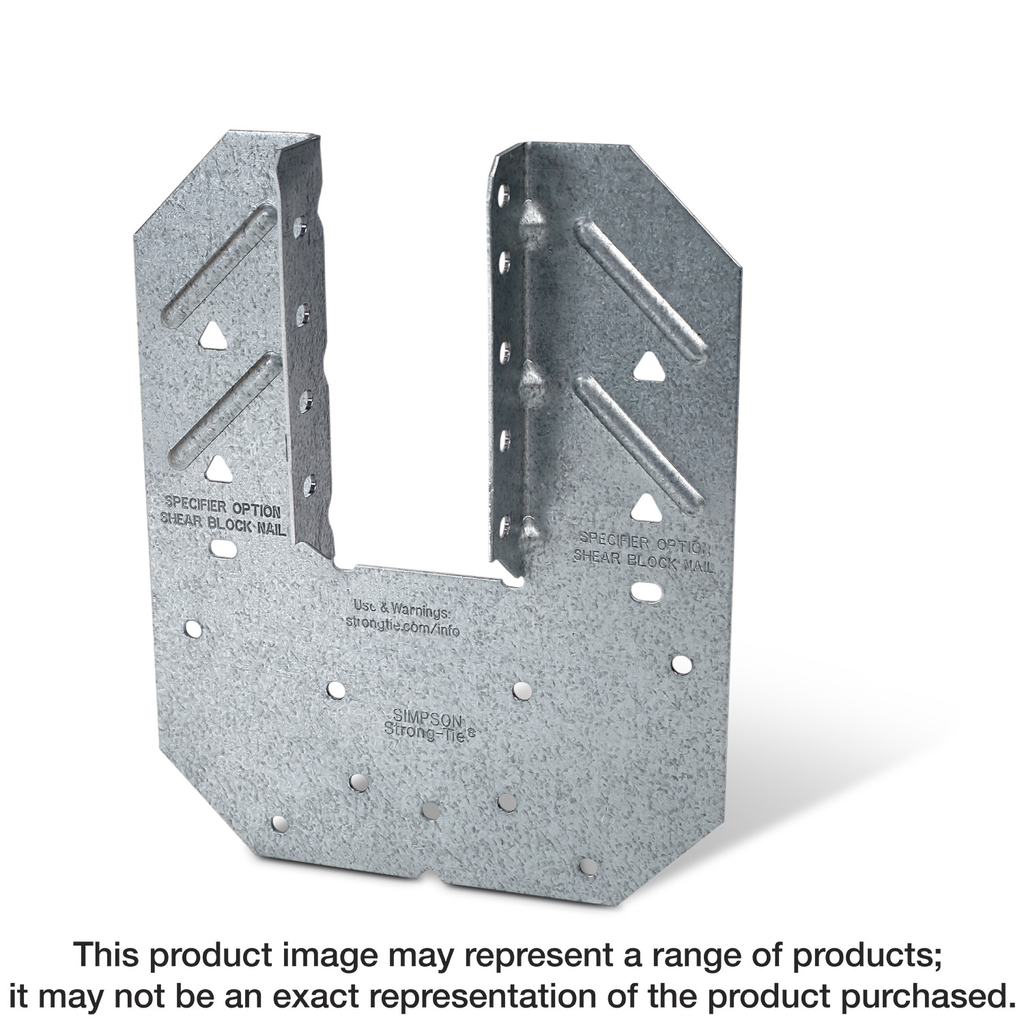

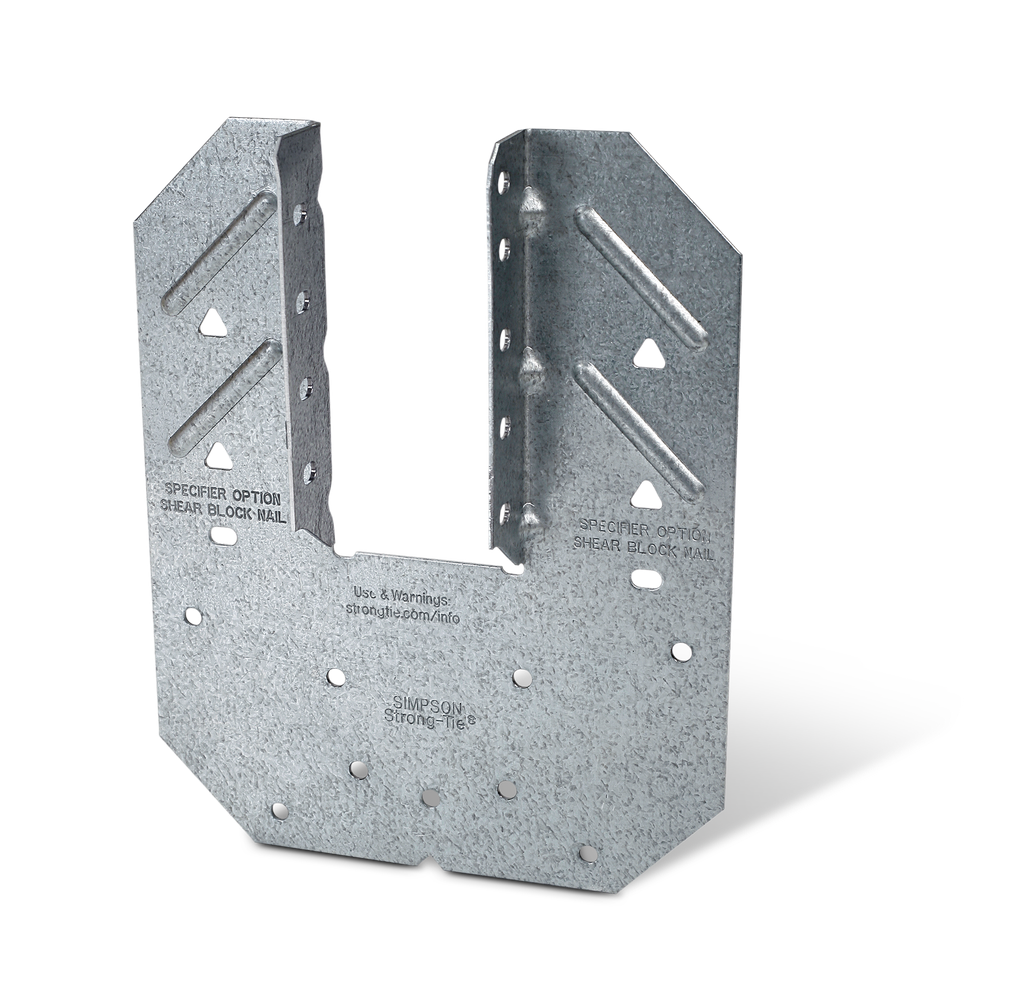

Constructed from 18-gauge stainless steel, this hurricane tie provides exceptional corrosion resistance, making it ideal for use in exterior and treated-wood applications. With a seat width of 1-9/16 inches, it is designed to create a robust connection that forms part of a continuous load path, effectively resisting both wind and seismic forces. The H10ASS model from Simpson Strong-Tie not only enhances the structural integrity of your projects but also ensures long-term durability in challenging environments.
Description
The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
Additional information
| Weight | 0.42 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5 in |
| Seat Width | 1-9/16 in |
