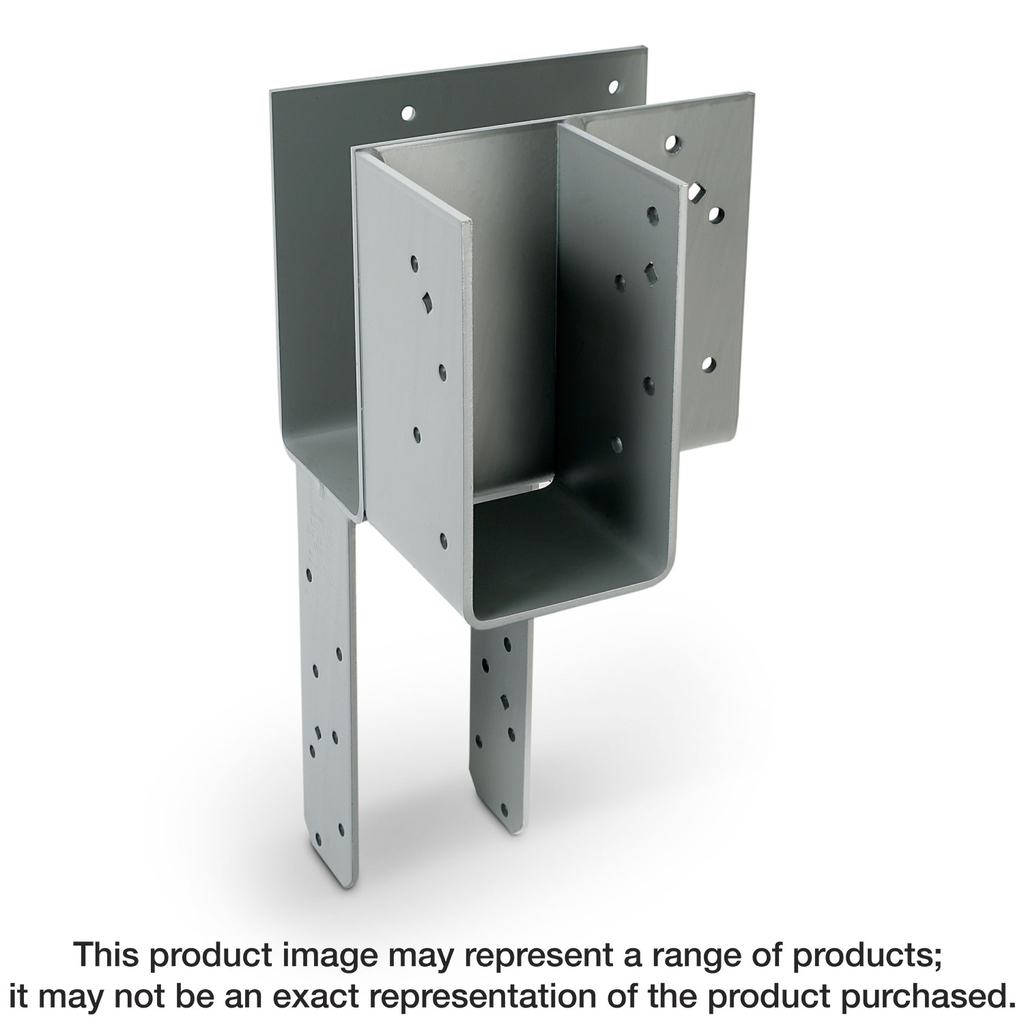

L End Column Cap Left with screws
$375.53
Engineered for robust structural connections, the L-Shape End Column Cap by Simpson Strong-Tie is crafted from 7-gauge steel, ensuring exceptional strength and durability. This cap features hot-dip galvanization, providing excellent corrosion resistance suitable for exterior applications and treated wood, allowing for longevity in various environments. Designed specifically for 4x beams and posts, the configuration of screws enhances uplift capacities, instilling confidence in structural integrity. Additionally, the diamond holes facilitate temporary fastening, making installation straightforward. For applications requiring a left skew, this cap is ideal, while the right direction can be accommodated by the alternative ECCLRQ model.
Description
The Simpson Strong-Tie® ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
Additional information
| Weight | 14.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Member Sizes | 4x main beam, 4x post, 4x side beam |
| Material | 7-gauge Steel |
